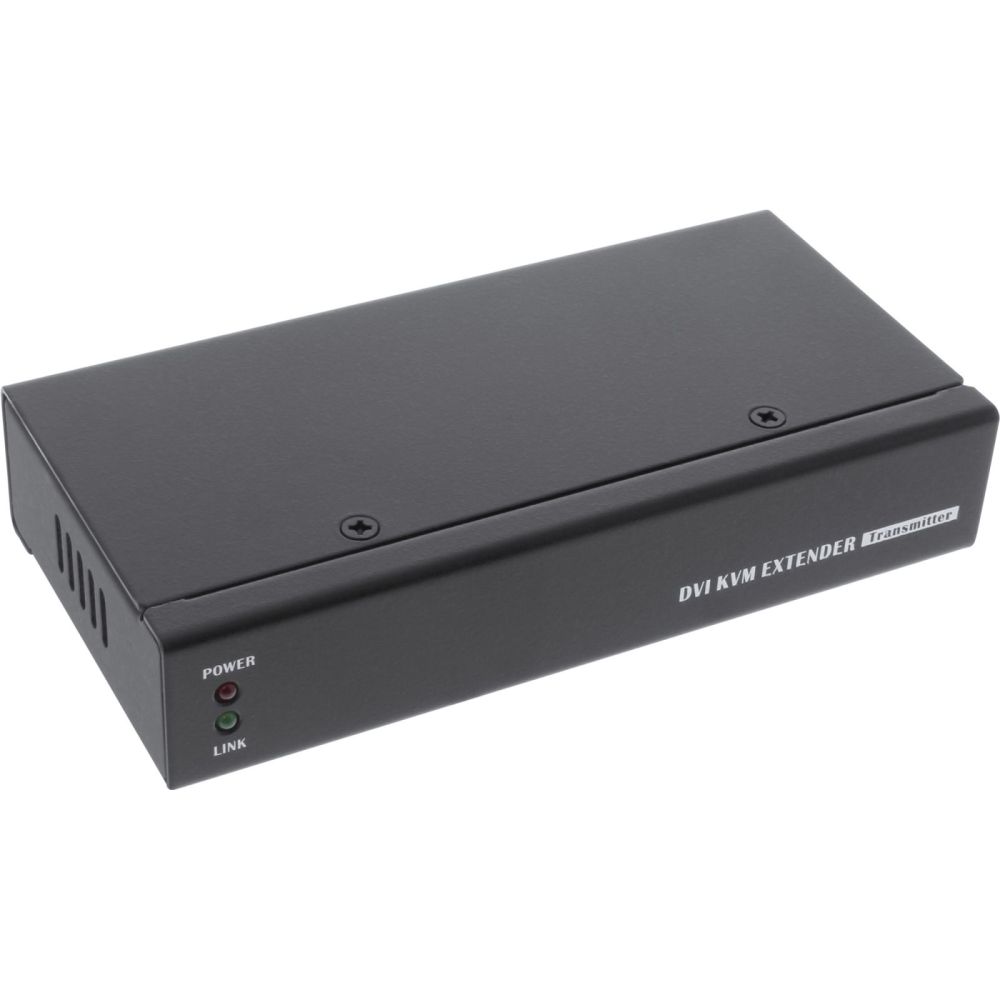

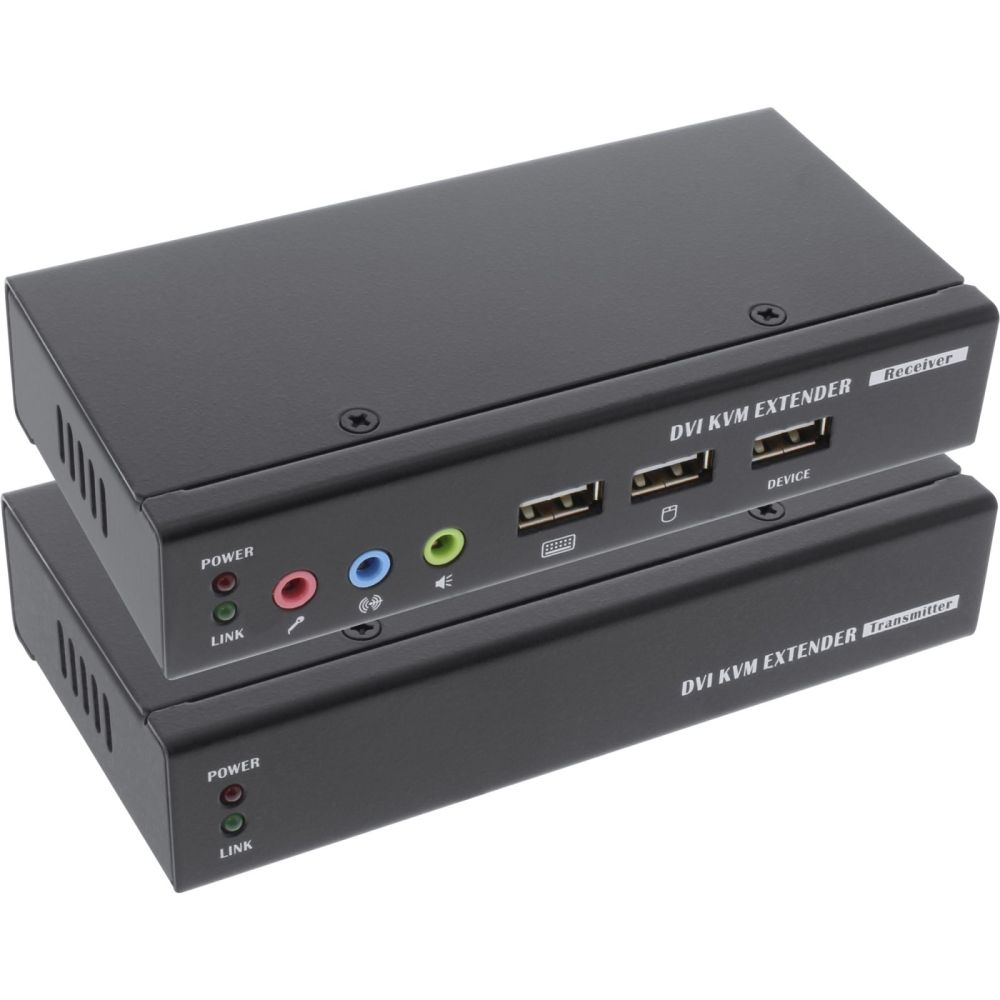

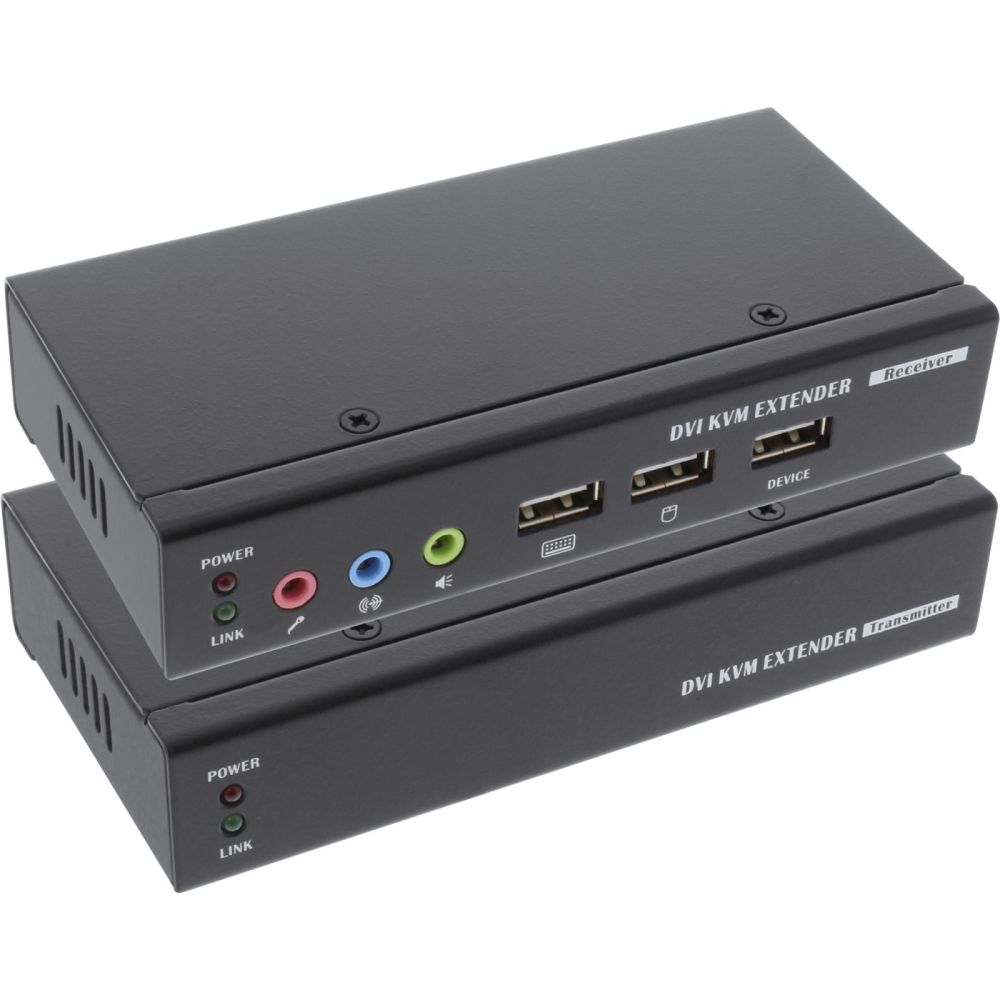

InLine® DVI USB KVM Extender over TP Cable with Audio up to 50m content_copy

Flexibly extend DVI workstations up to 50 mUse the console at a remote location: DVI monitor, USB mouse/keyboard and audio up to 50 m over two Cat.5e/6/6A cables.
Clear image over distance: supports up to 1920x1200/1080p at 40 m and 1080i at 50 m.

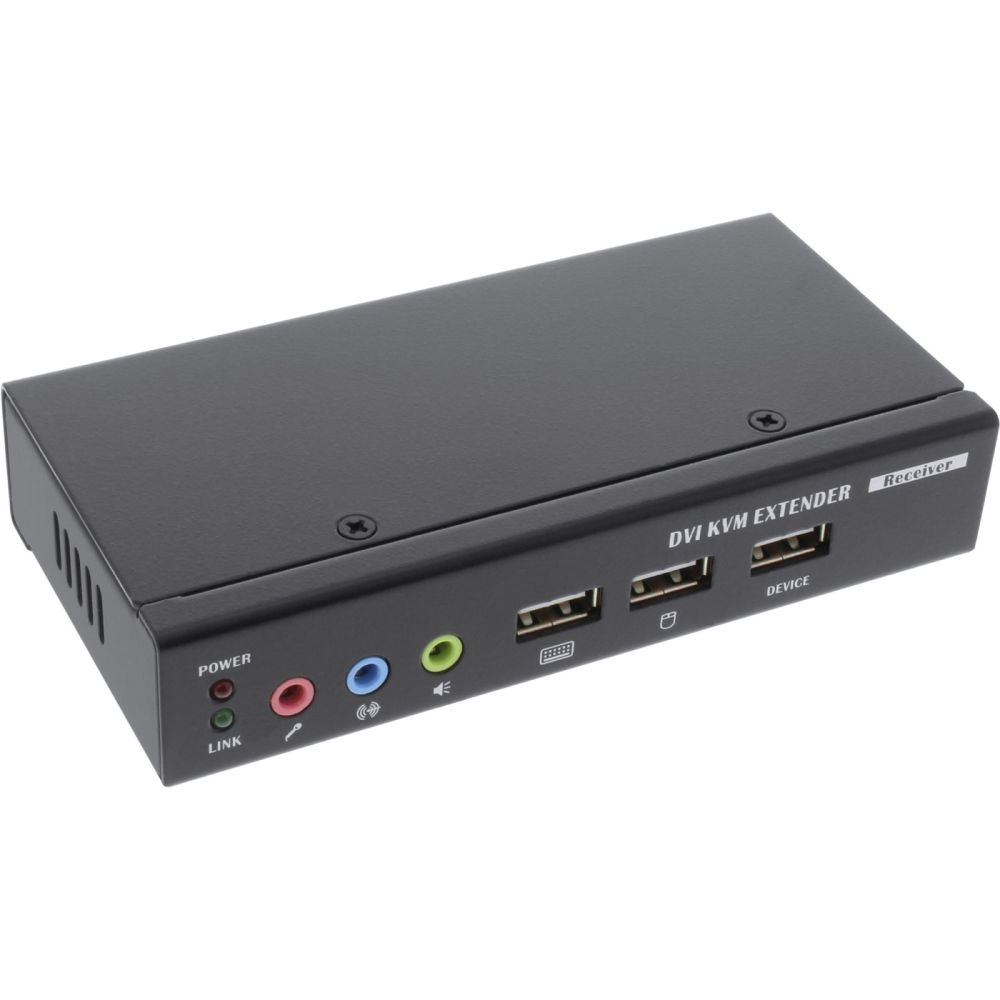

Stereo audio fully integrated: jacks for speakers/headphones, microphone and line-in.
Connect USB peripherals directly: 3 USB ports for mouse, keyboard and one additional USB 2.0 device.
Compatible signal management: EDID support, HDCP compatible and adjustable EQ compensation.
With this DVI-USB KVM extender, you relocate monitor, mouse, keyboard and audio up to 50 m away from the computer. Transmission of video, USB and stereo audio is via two Cat.5e/Cat.6/Cat.6A cables. EDID support facilitates correct display detection, HDCP compatibility allows use with protected content, and the adjustable EQ compensation helps adapt image quality to the cable length. Resolutions up to 1920x1200 and 1080p at 40 m as well as 1080i at 50 m are supported.
In professional IT environments and existing infrastructures, use the extension over structured cabling when DVI workstations need to be separated spatially, for example in offices, control rooms, training or meeting rooms. For on-site installations and service deployments, use two Cat.5e/Cat.6/Cat.6A cables to position the console as required.
Transmission distance: up to 50 m

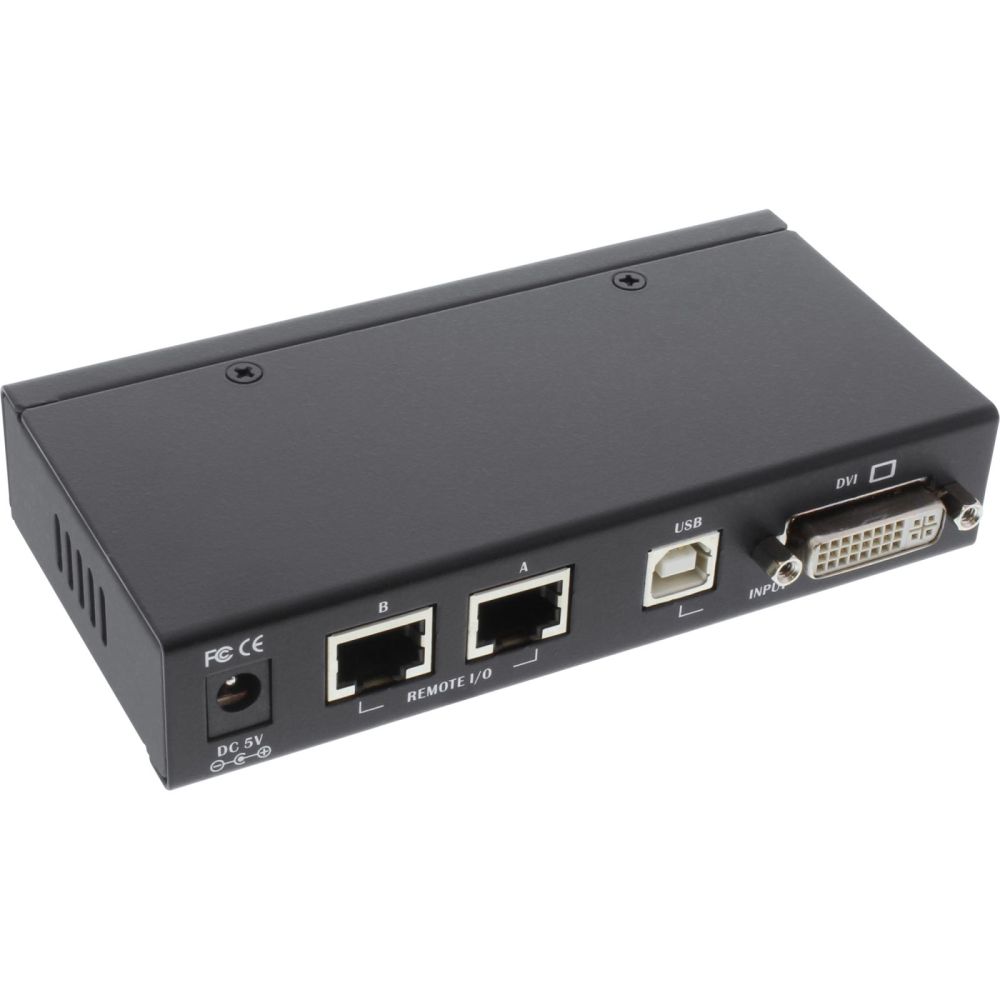

Connection: transmitter (TX) to receiver (RX) over 2x Cat.5e/Cat.6/Cat.6A cables
Resolution: up to 1920x1200 (40 m), 1080p (40 m), 1080i (50 m), widescreen supported
Audio: stereo, jacks for speakers/headphones, microphone, line-in
USB: 3 USB ports, one additional USB 2.0 device can be connected

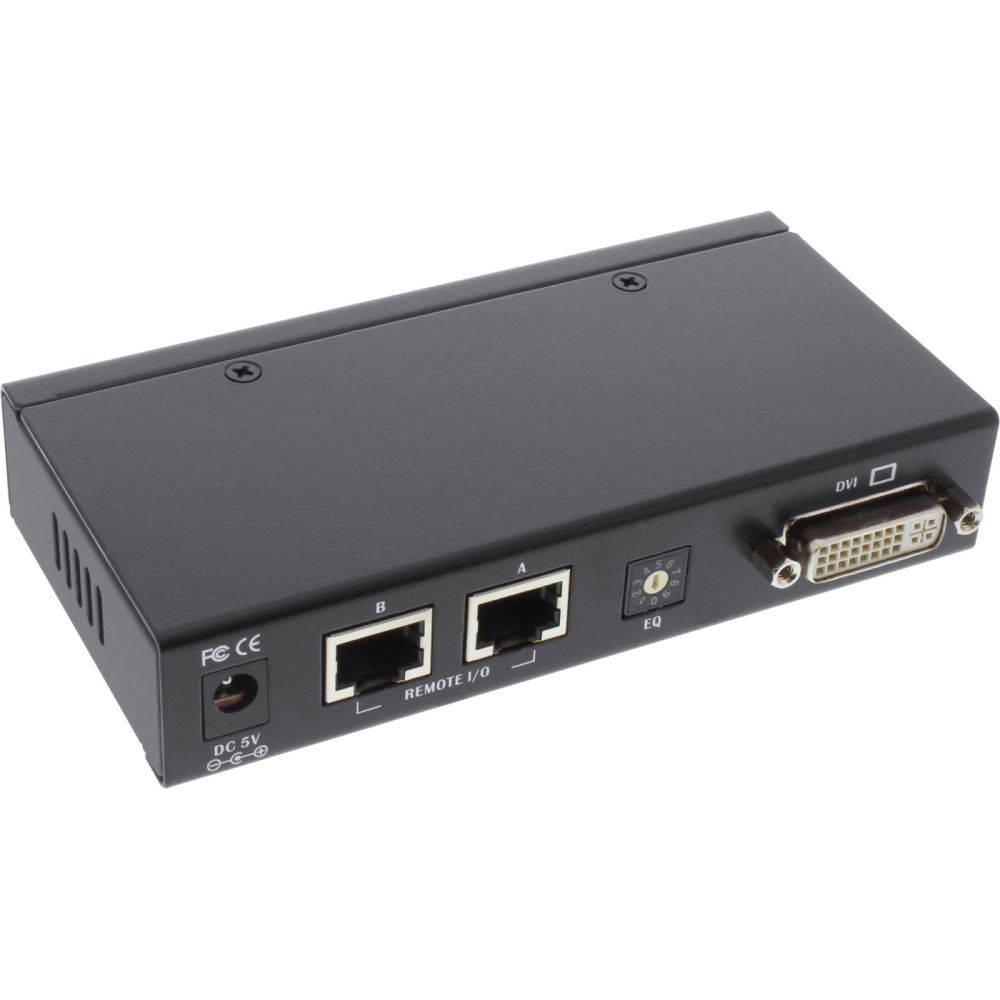

Features: EDID support, adjustable EQ compensation
Compatibility: HDCP compatible
Scope of delivery: TX, RX, USB power adapter cable, manual, power supply (DC 5 V)

Features
Type	Receiver
Connectivity technology	Wired
Maximum transfer distance	50 m
Cable types supported	Cat5e
Product colour	Black
Packaging content
AC adapter included
Packaging data
Package width	141 mm
Package depth	205 mm
Package height	180 mm
Package weight	1.24 kg
Power
AC adapter output voltage	5 V
Technical data
USB specification	USB 2.0
Height packaging	0.180m
Width packaging	0.141m
Max. resolution	1920x1200 / 60Hz
Net weight	1.182kg
Video inputs per CPU	DVI-I (Dual Link) x1
Type 1	KVM Extender
Weight	1.236kg
Length packaging	0.205m
Packaging volume	0.0052m³
Design	Desktop
Type 2	DVI Extender Bundle
Number of CPU	1
USB peripherals
Technical details
Maximum resolution	1920 x 1200 pixels
Weight	1.18 kg
Package volume	5200 cm³
Transmitter
Transmitter video port type	DVI-I
Transmitter local keyboard/mouse port type	USB

---
