InLine® HDMI USB KVM over IP Extender, 4K up to 100m content_copy

4K KVM distribution over Ethernet up to 100 m with 1-frame latency4K signal over Ethernet up to 100 m: Transmit an HDMI source via direct CATx cable or via Gigabit switch to a remote display.
Real-time control via USB 2.0: Control keyboard and mouse over IP-KVM with 1-frame latency.

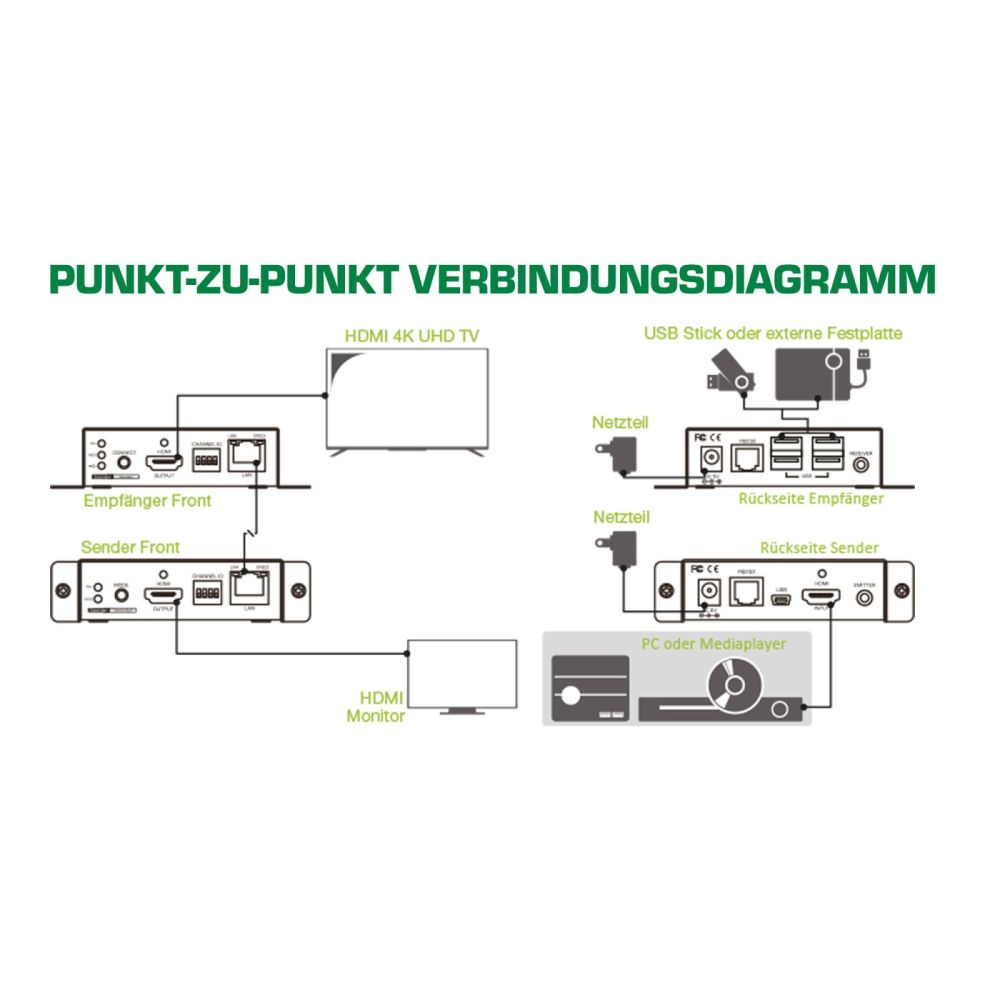

Flexible distribution and video walls: Implement point-to-point, point-to-multipoint, and video wall scenarios with multiple units.
Easy administration: Control via web interface, HTTPS/Telnet, and RS-232 for fast access.

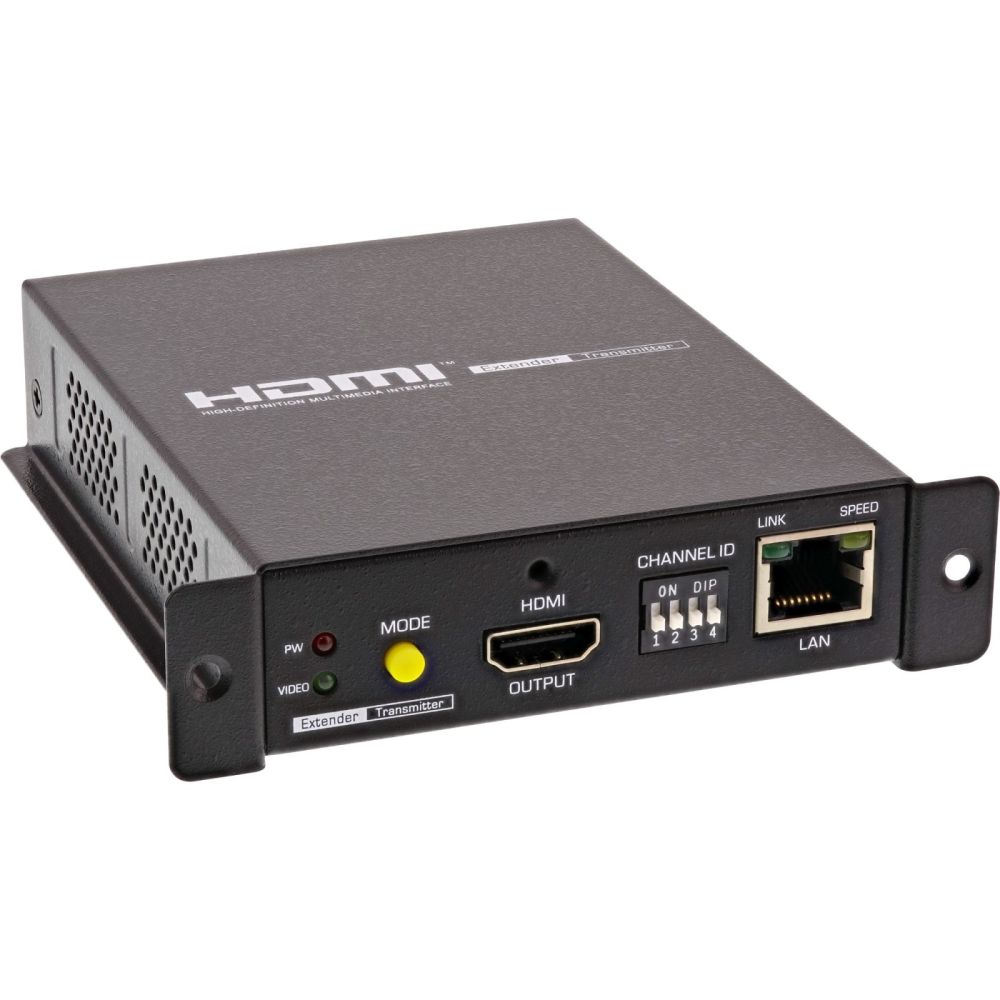

Local monitoring included: HDMI loopback at the transmitter enables parallel display at the source location.
The HDMI USB KVM extender transmits video signals up to 3840 x 2160 at 30 Hz along with 7.1 audio channels over an active LAN or a direct CATx connection. HDCP 2.2 and automatic EDID configuration support smooth operation. The bitrate control of 10-800 Mb/s enables transmission adaptable to the environment. The receiver can select a suitable output format via the hybrid video output, and audio can be extracted as analog 2-channel LPCM if required.
In exhibition and demo areas, at workstations, and in control centers, the solution facilitates scalable installations over existing infrastructures with Gigabit switches. Features such as web-based management, HTTPS/Telnet, and RS-232 accelerate setup, service deployments, and operation in companies and public institutions.

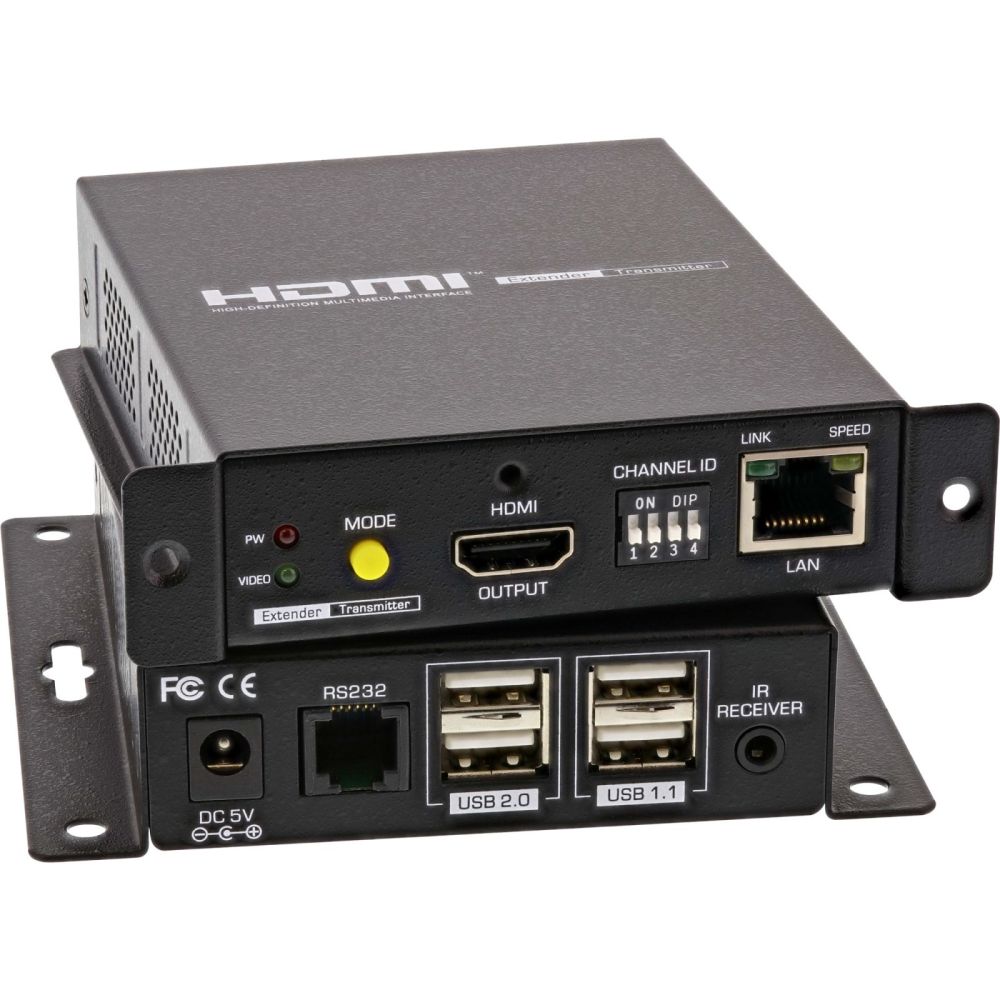

Network port: 1x RJ45 socket (transmitter/receiver)

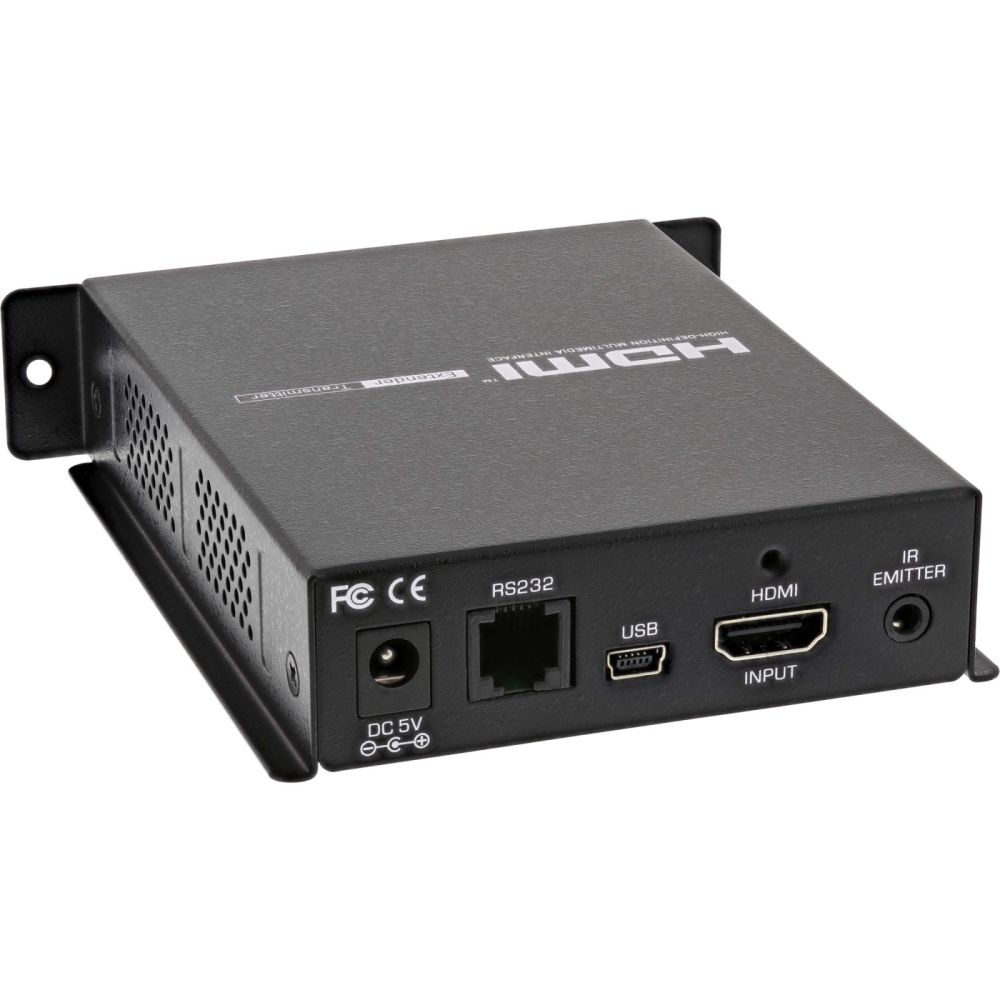

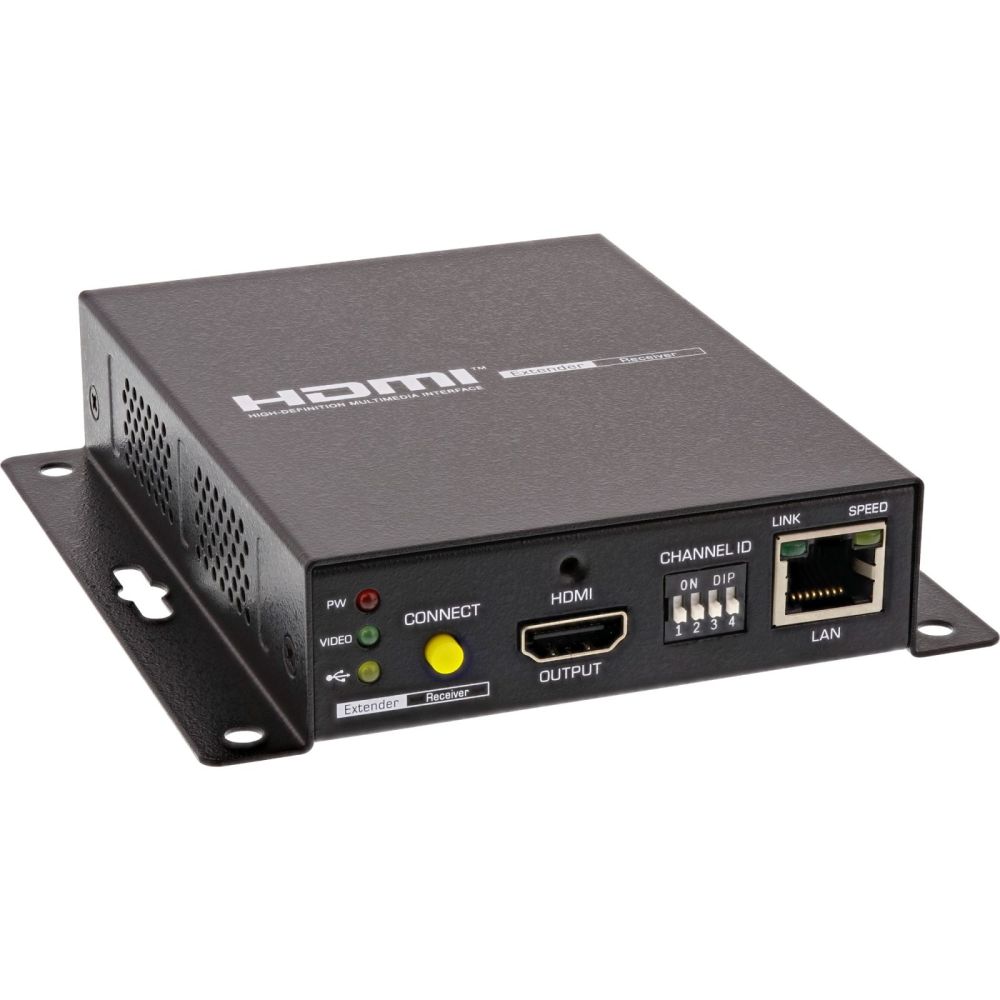

Video inputs/outputs: Transmitter 1x HDMI socket (in), 1x HDMI socket (out, loopback); Receiver 1x HDMI socket (out)
USB: Transmitter 1x USB type B socket; Receiver 4x USB type A sockets
IR: 1x 3.5 mm female jack (transmitter/receiver)
RS-232: 1x RJ12 socket (transmitter/receiver)
Resolution: 3840 x 2160 at 30 Hz
Audio: 7.1 channel, LPCM/DTS/Dolby/Dolby ATMOS
Latency: 1 frame
Range: up to 100 m
Network operation: directly via CATx or via Gigabit Ethernet switch
HDMI/HDCP: up to HDMI 2.0, HDCP 2.2
Management: web interface, HTTPS/Telnet, RS-232
EDID: automatic configuration
Bitrate control: 10-800 Mb/s
Video functions: video snapshot, rotation, partial zoom, shift
Hybrid video output: selectable format per receiver
Audio output: analog 2-channel LPCM (audio extract)
DIP switch: 4-bit, 16 stream channels
Mounting: VESA mount, rack mounting
Dimensions: Transmitter 95 x 115 x 26 mm; Receiver 115 x 115 x 26 mm

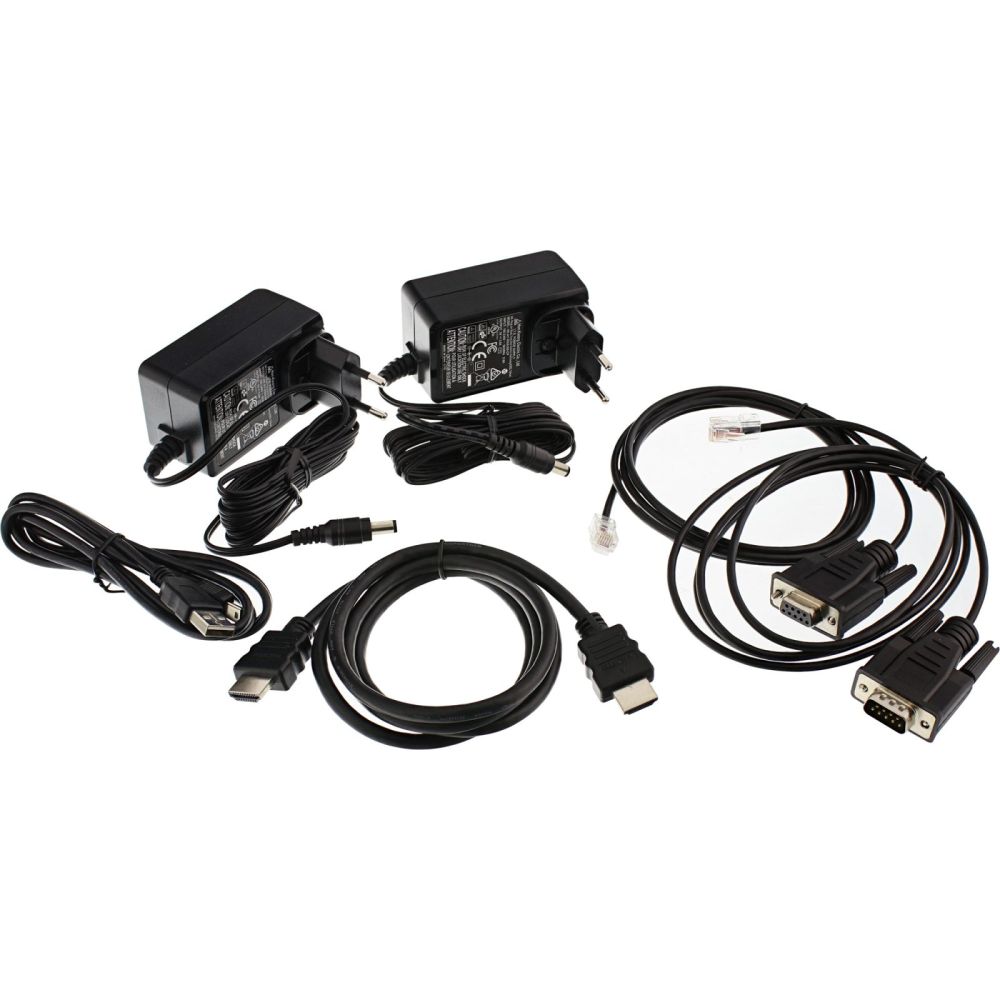

Power supply: DC 5 V
Operating temperature: 0-40 °C
Storage temperature: -20-60 °C
Humidity: 0-90 %, non-condensing

Features
Type	Transmitter & receiver
Connectivity technology	Wired
Maximum transfer distance	100 m
Cable types supported	Cat5, Cat6
Maximum digital resolution	3840 x 2160 pixels
Maximum refresh rate	30 Hz
Product colour	Black
Rack mounting
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Packaging data
Package width	255 mm
Package depth	295 mm
Package height	75 mm
Package weight	1.55 kg
Ports & interfaces
USB port type	USB Type-A
USB 2.0 ports quantity	5
HDMI version	2.0
RS-232 ports	2
RJ-45 ports quantity	2
Power
AC adapter output voltage	5 V
Receiver
Receiver local video port type	HDMI
RJ-45 ports quantity (receiver)	1
Technical data
Net weight	1.171kg
Interface	HDMI
Type 2	HDMI Extender Bundle
Article height	2.70cm
Weight	1.550kg
Max. distance	100m
Length packaging	0.295m
Type 1	KVM Extender
Article width	11.50cm
Height packaging	0.075m
Width packaging	0.255m
Packaging volume	0.0057m³
Article length	11.50cm
Technical details
Dimensions (WxDxH)	115 x 115 x 27 mm
Weight	1.17 kg
Package volume	5700 cm³
Transmitter
Transmitter video port type	HDMI
RJ-45 ports quantity (transmitter)	1
Weight & dimensions
Transmitter width	11.5 cm
Transmitter depth	9.5 cm
Transmitter height	2.6 cm
Receiver width	11.5 cm
Receiver depth	11.5 cm
Receiver height	2.6 cm

---
