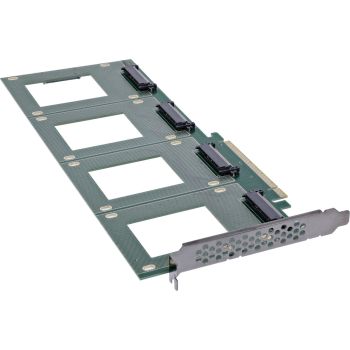

InLine® PCIe card to 4x internal U.2 NVMe SFF-8639 - Bifurcation, PCIe x16 content_copy

Supports four 2.5-inch NVMe SSDs for maximum performance and flexibility
PCIe 3.0 x16 connection with up to 128 Gb/s bandwidth
Automatic lane detection (bifurcation) for optimum system integration
LED indicators for easy fault diagnosis and operating status
No additional driver required - native Windows and Linux support
The InLine® PCI Express card expands your system with four internal U.2 NVMe SSD slots and enables parallel operation of four SSDs with full PCIe bandwidth. Thanks to automatic lane detection, configuration is carried out for optimum system integration.
With a PCIe 3.0 x16 interface, the card offers a maximum bandwidth of up to 128 Gb/s, with each U.2 port supporting a data rate of up to 4 GB/s. LED indicators for read and write activity make it easy to monitor the operating status.
Note on dimensions:
The card has a length of 288 mm and a width of 122 mm. Please check that your housing offers sufficient space for installation and that adequate ventilation is ensured.
Technical data:
Bus type & PCIe: PCIe 3.0 (8 GT/s) x16 lanes (offers up to 128 Gb/s bandwidth)
Connector interfaces: 4 x SFF-8639 connectors (for the installation of 2.5-inch NVMe SSDs)
Chip set: PI6C20400BLE
Compatible U.2 devices: Supports 2.5-inch NVMe SSDs according to SFF-8639 standard
Data rate: Each port supports transfer rates of up to 4 GB/s
Dimensions: 288 mm x 122 mm (PCIe board)
Operating conditions:
Operating temperature: -40 °C to +85 °C
Functions:
Automatic detection of the lane configuration during boot
Onboard LED indicators (2x read/write activity LEDs)
The U.2 SSDs obtain their power supply directly via the PCIe bus (3.3 V)
No additional driver required
System requirements: Hardware:
PC with one free PCIe 3.0 x16 (or x16 slot)
Motherboard that supports PCIe bifurcation
BIOS/UEFI settings for PCIe bifurcation:
In order for both U.2 NVMe SSDs to be operated simultaneously, the PCIe slot used must often be set to Bifurcation mode in the BIOS/UEFI. This divides the available PCIe lanes into several channels (e.g. one x16 slot into four x4 channels).
The exact designation varies depending on the motherboard manufacturer and BIOS/UEFI version. Terms such as PCIe Bifurcation", "Lane Splitting" or "PCIe Slot Configuration may be used. Please consult your mainboard manual for the correct setting and then check whether all NVMe SSDs are recognized.
Operating system support:
Windows: 11, 10, 8, 7
Windows Server: 2012 R2
Linux: Native support (Fedora, SUSE, Ubuntu, Red Hat)
Scope of delivery:
1 x InLine® PCI Express card to 4x internal U.2 NVMe SFF-8639
1 x hand screwdriver
8 x screws
1 x instruction manual (German/English)

Design
Country of origin	Taiwan
Internal
LED indicators
Features
Chipset	PI6C20400BLE
Data transfer rate (max)	4 Gbit/s
Bandwidth	128 Gbit/s
Operational conditions
Operating temperature (T-T)	-40 - 85 °C
Other features
Dimensions (WxDxH)	302 x 2.13 x 120 mm
Packaging data
Package width	334 mm
Package depth	32 mm
Package height	154 mm
Package weight	104 g
Package type	Box
Manual
Ports & interfaces
Host interface	PCIe
Host interface gender	Male
Output interface	U.2
Expansion card standard	PCIe 3.0
NVMe
Power
Power supply input voltage	3.3 V
System requirements
Windows operating systems supported	Windows 10, Windows 11, Windows 7, Windows 8
Server operating systems supported	Windows Server 2012 R2
Linux operating systems supported
Technical data
Article width	12.00cm
Net weight	0.104kg
Article height	2.20cm
Height packaging	0.154m
Width packaging	0.334m
Special feature	Simultaneous reading and copying of 2 cards
Type	Controller
Chipset	PI6C20400BLE
Weight	0.213kg
Interface	NVMe
Transmission rate	128Gb/s
Slot	PCIe
Length packaging	0.032m
Connections internal	4x U.2 NVMe SFF-8639
Connections external	None
Article length	30.20cm
Low Profile
Technical details
Compliance certificates	TÜV mark, Federal Communications Commission (FCC), CE
Weight & dimensions
Width	302 mm
Depth	2.13 mm
Height	120 mm
Weight	2.2 kg

---
