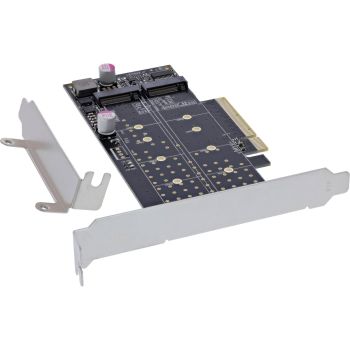

InLine® PCI Express card to 2x internal NVMe M.2 Key M - Bifurcation, PCIe x8 content_copy

Supports two NVMe M.2 SSDs for maximum performance and flexibility
PCIe 3.0 x8 connection with up to 64 Gb/s bandwidth
Hyper M.2 technology for automatic lane configuration
LED indicators for easy fault diagnosis and operating status
No additional driver required - native Windows and Linux support
The InLine® PCI Express card expands your system with two internal NVMe M.2 slots and enables the parallel operation of two NVMe SSDs with full PCIe bandwidth. Thanks to Hyper M.2 technology, the lane configuration is automatically detected at boot time for optimal system integration.
With a PCIe 3.0 x8 interface, the card offers a maximum bandwidth of up to 64 Gb/s, with each M.2 slot supporting a data rate of up to 4 GB/s. LED indicators for read and write activity make it easy to monitor the operating status.
Technical data:
Bus type & PCIe: PCIe 3.0 (8 GT/s) x8 lanes (for up to 64 Gb/s bandwidth)
Connection - interfaces: 2 x M.2 Key M slots - for the installation of NVMe SSDs
Chip set: PI6C20400BLE
Compatible M.2 module sizes: Supports 2230, 2242, 2260, 2280, 22110 SSDs
Data rate: Each slot supports transfer rates of up to 4 GB/s
Dimensions: 135 mm x 68 mm (PCIe board)
Operating conditions:
Operating temperature: -40 °C to +85 °C
Functions:
Automatic detection of the lane configuration during boot
Onboard LED indicators (2 x read/write activity LEDs)
M.2 SSDs draw their power supply directly via the PCIe bus
No additional driver required - native support by the operating system
System requirements hardware:
PC with one free PCIe 3.0 x8 (or x16 slot)
Motherboard that supports PCIe bifurcation
PCIe bifurcation for optimal use of the card:
In order for both M.2 SSDs to be operated simultaneously, the PCIe slot used must often be set to Bifurcation mode in the BIOS/UEFI. This splits the available PCIe lanes into several channels (e.g. one x8 slot into two x4 channels). The exact designation varies depending on the motherboard manufacturer and BIOS/UEFI version. Terms such as PCIe Bifurcation", "Lane Splitting" or "PCIe Slot Configuration may be used. Please consult your mainboard manual for the correct setting and then check whether both NVMe SSDs are recognized.
Operating system support:
Windows: 11, 10, 8, 7
Windows Server: 2012 R2
Linux: Native support (Fedora, SUSE, Ubuntu, Red Hat) - no additional driver required
Scope of delivery:
1 x InLine® PCI Express card to 2x internal NVMe M.2
1 x low-profile slot bracket
1 x hand screwdriver
4 x screws
2 x thermal pads
1 x instruction manual (German/English)

Design
Country of origin	Taiwan
Internal
LED indicators
Features
Chipset	PI6C20400BLE
Data transfer rate (max)	64 Gbit/s
Operational conditions
Operating temperature (T-T)	-40 - 85 °C
Other features
Dimensions (WxDxH)	152 x 1.3 x 120 mm
Packaging data
Package width	175 mm
Package depth	32 mm
Package height	150 mm
Package weight	52 g
Package type	Hanging box
Mounting brackets included
Manual
Ports & interfaces
Host interface	PCIe
Host interface gender	Male
Output interface	M.2
Expansion card standard	PCIe 3.0
Number of M.2 (M) slots	2
NVMe
System requirements
Windows operating systems supported	Windows 10, Windows 11, Windows 7, Windows 8
Server operating systems supported	Windows Server 2012 R2
Linux operating systems supported
Technical data
Interface	NVMe
Type	Controller
Slot	PCIe
Height packaging	0.150m
Length packaging	0.032m
Connections internal	2x M.2-NVMe-SSD
Article height	2.20cm
Width packaging	0.175m
Article width	12.00cm
Net weight	0.052kg
Chipset	PI6C20400BLE
Weight	0.130kg
Article length	15.20cm
Special feature	Simultaneous reading and copying of 2 cards
Transmission rate	64Gb/s
Connections external	None
Low Profile
Technical details
Compliance certificates	TÜV mark, Federal Communications Commission (FCC), CE
Weight & dimensions
Width	152 mm
Depth	1.3 mm
Height	120 mm
Weight	2.2 kg

---
