IIYAMA 54.6cm (21.5") TF2234MC-B7X 16:9 M-Touch HDMI+DP IPS
|
461,70 EUR |
|
|
( 549,42 EUR incl. VAT ) ≈ £391.98 | ≈ $520.34 plus delivery charges: 83,00 € |
|
| Delivery time from supplier's stock (ca.) 7 workdaysinfo_outline | |
| In Stock: >50 pieces | |
| End-Of-Life: | 27. Sep 2026 |
|---|---|
| Lieske Part No.: | 921672 |
| Mfg Part No: | TF2234MC-B7X |
| UPC/EAN: | 4948570118366 |
| Weight: | 6.34 kg |
| Type: | MNTR |

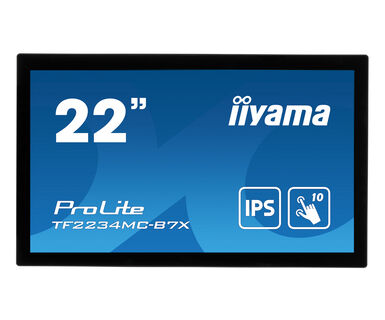

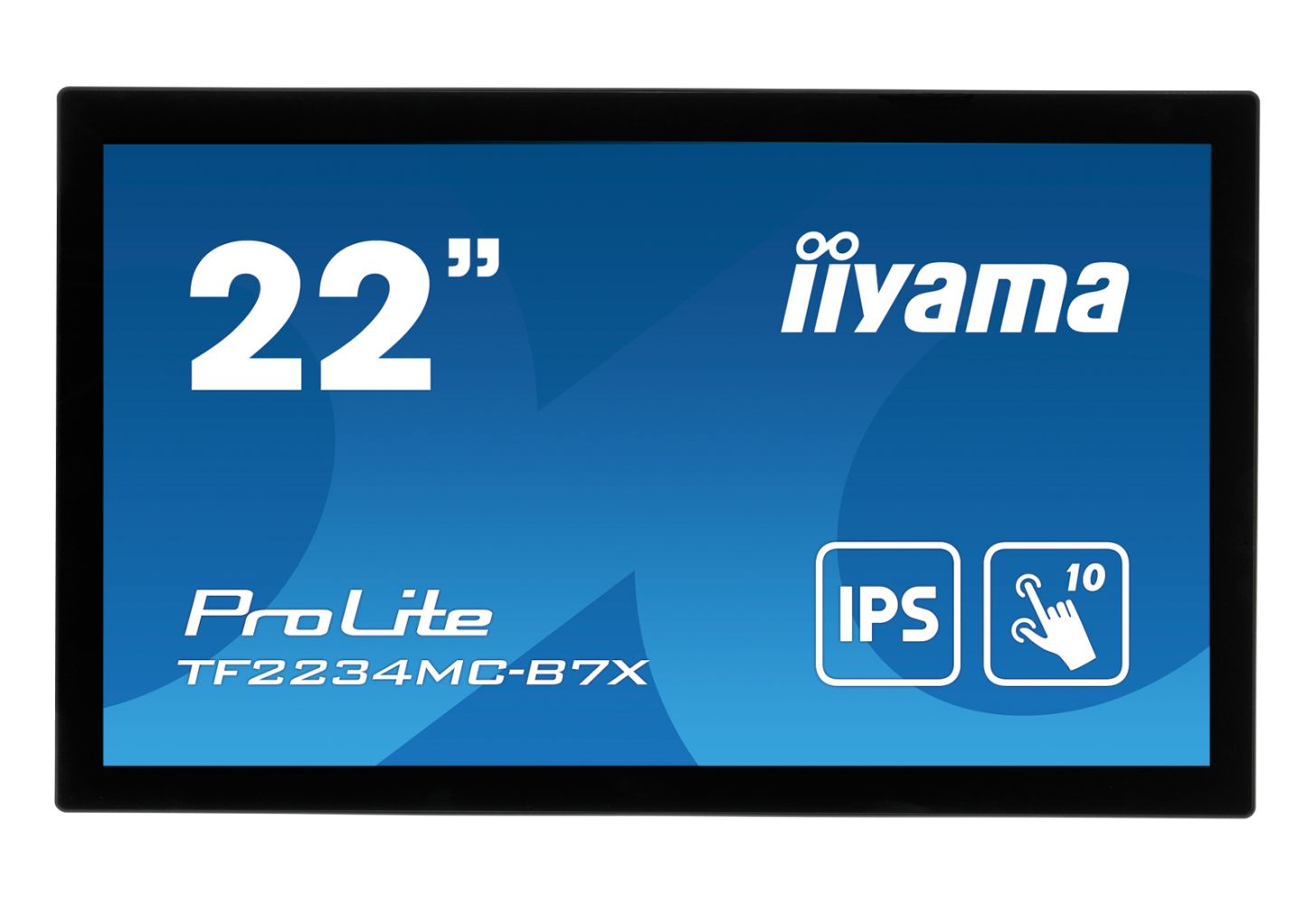

Product information for Iiyama TF2234MC-B7X:

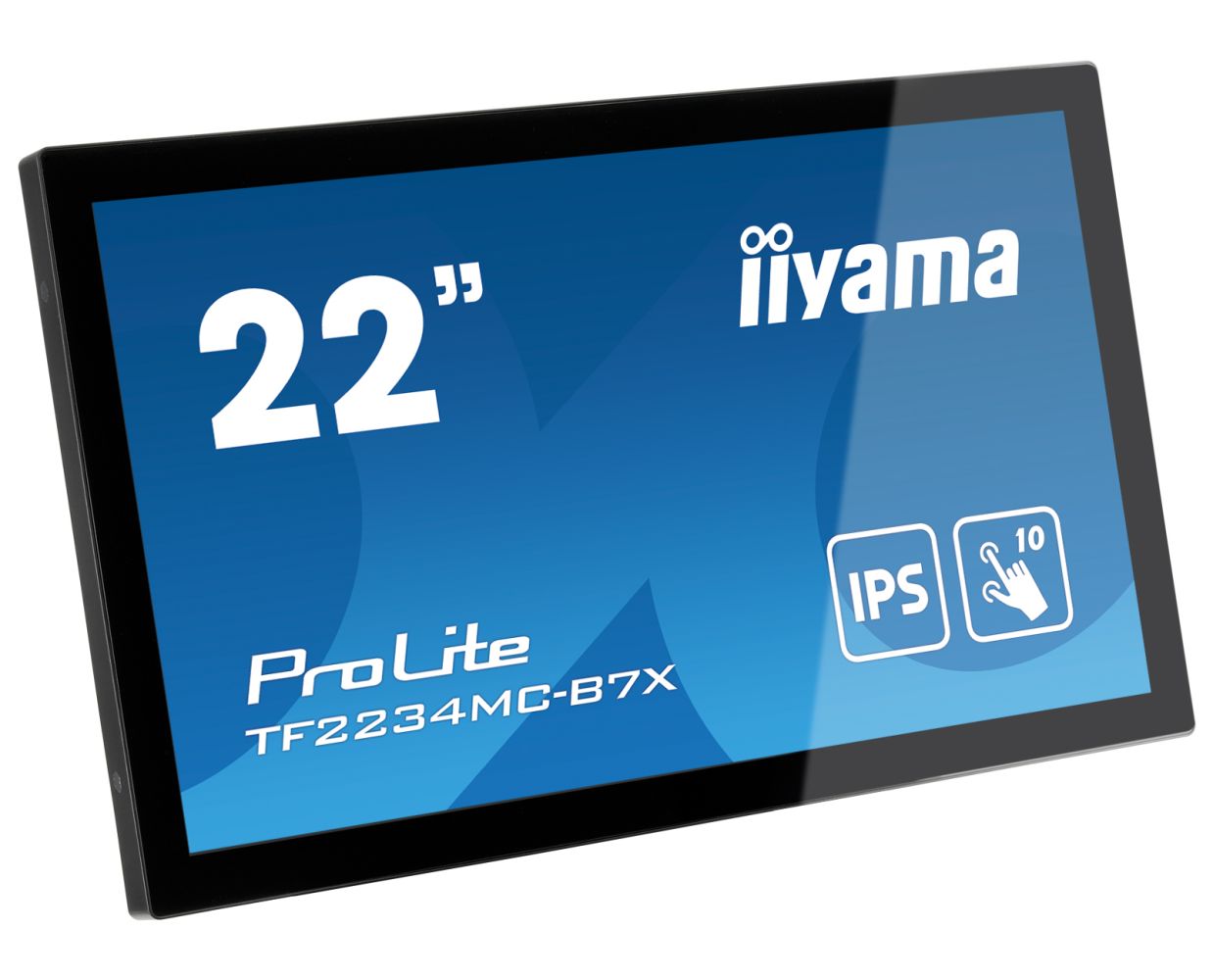

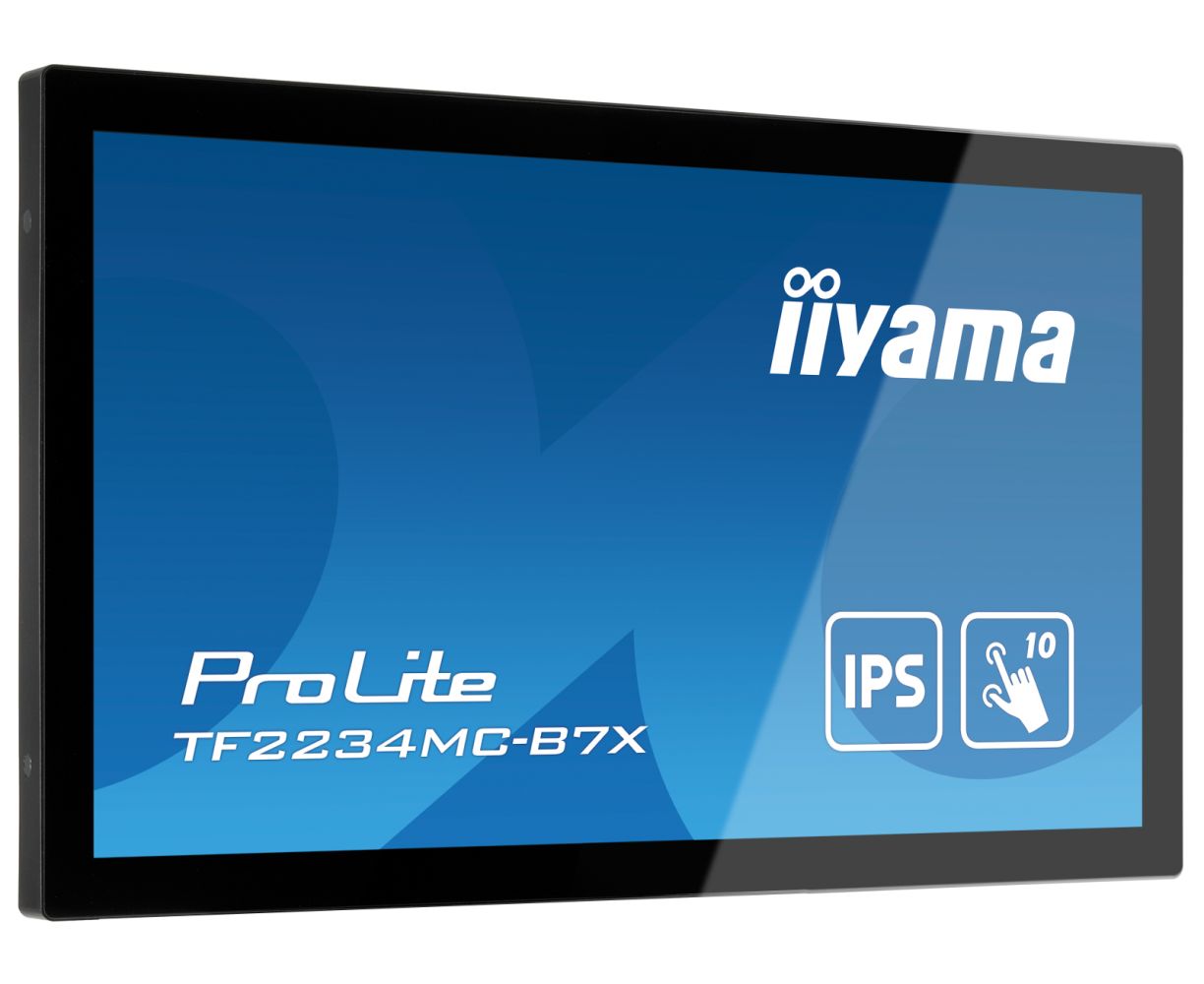

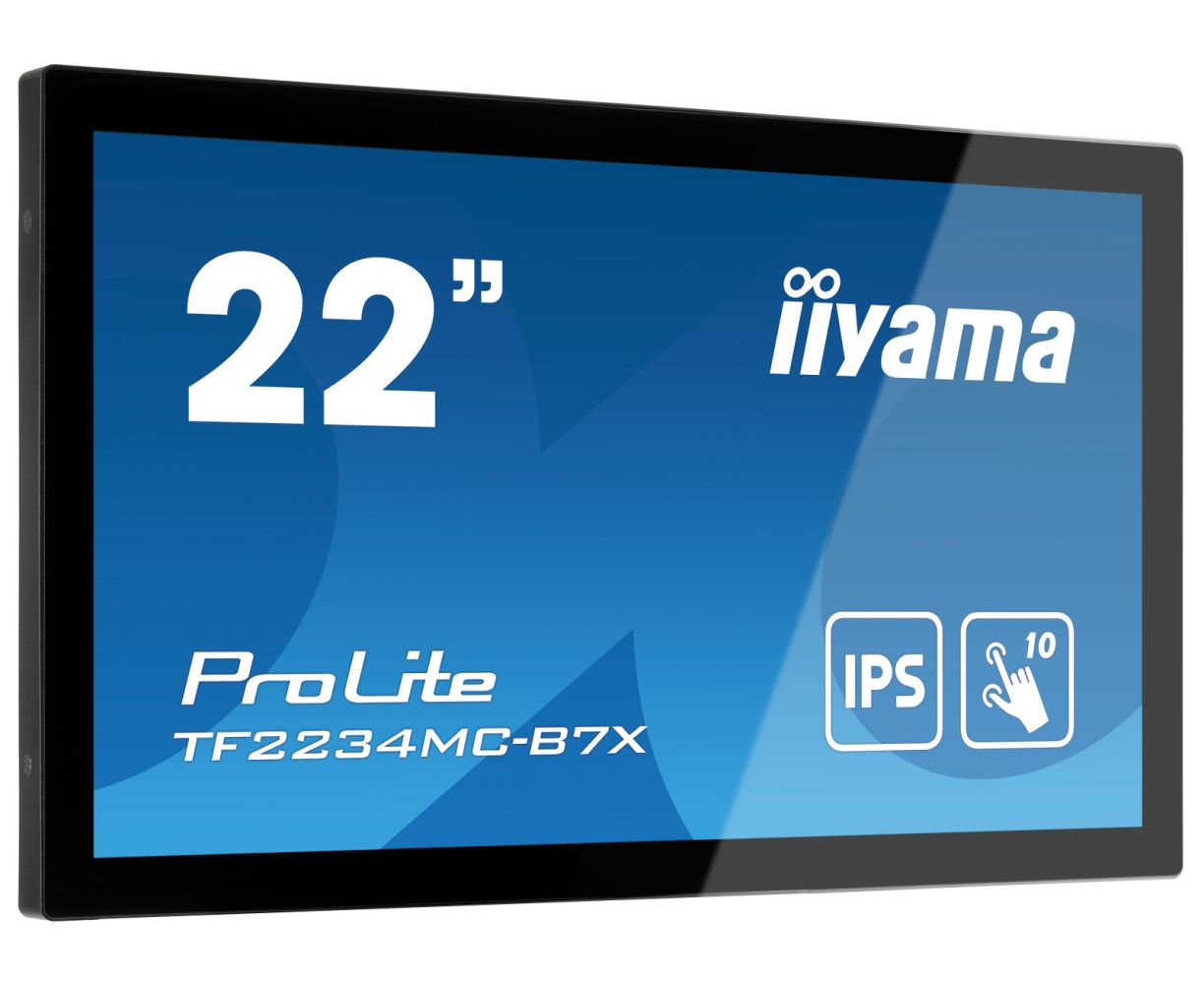

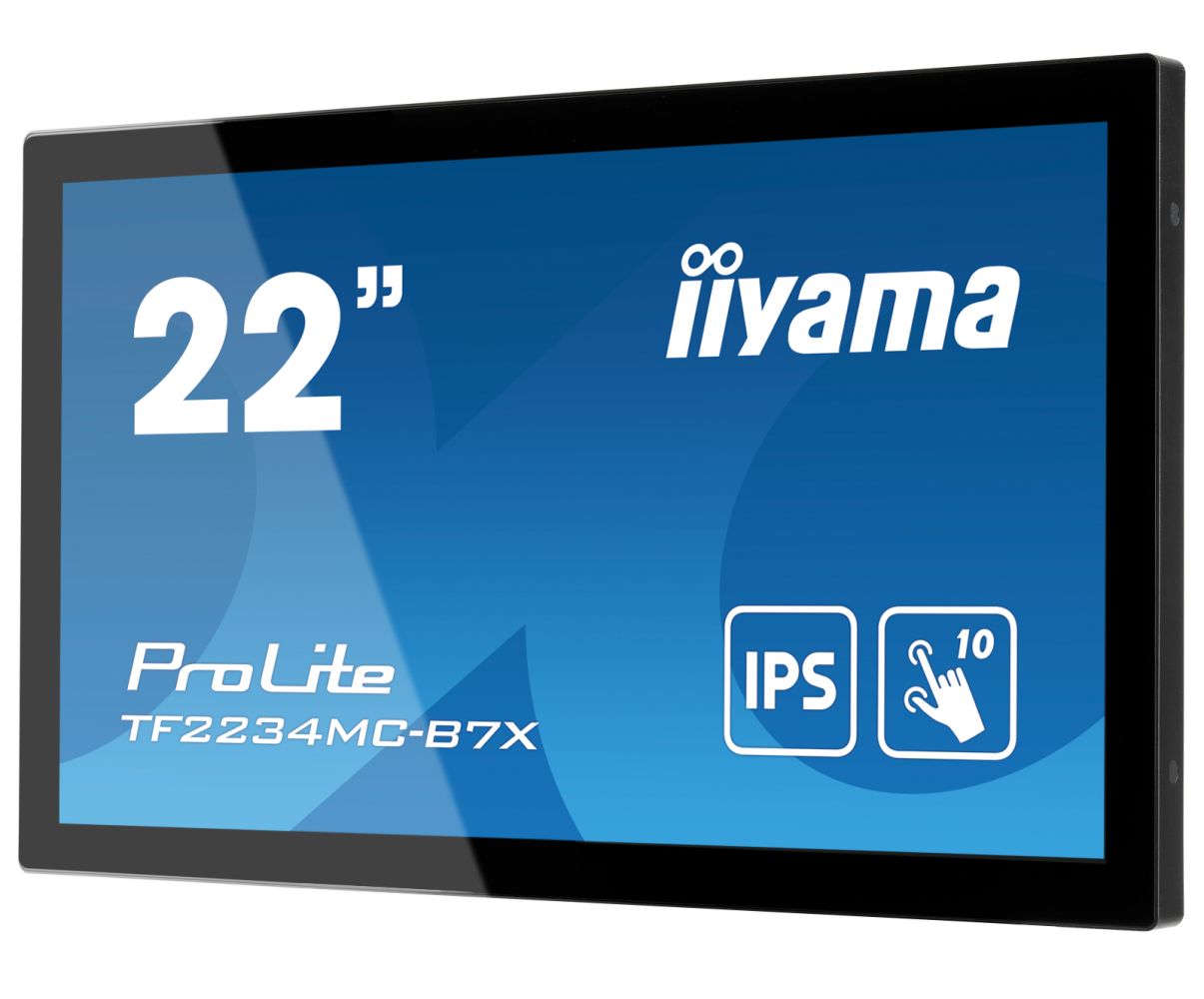

touch monitor (open-frame, 16:9), (54,6 cm ( 21,5 inch )), Touchscreen, Projected Capacitive, multi touch (10 points), 1920x1080 pixels, VESA mount (100x100 mm), 8ms, brightness: 305cd, viewing angle: 178/178°(H/V), contrast: 1000:1, VGA, display-port, HDMI, touch interface: USB, IP65, incl.: cable (USB, HDMI, Display Port), power supply unit, power cable, QSG, colour: black
| Design | |
| Product colour | Black |
| Front bezel colour | Black |
| Glass thickness | 1.5 mm |
| Display | |
| Display diagonal | 54.6 cm (21.5") |
| Display resolution | 1920 x 1080 pixels |
| HD type | Full HD |
| Native aspect ratio | 16:9 |
| Display technology | LED |
| Panel type | IPS |
| Touchscreen type | Multi-user |
| Touchscreen technology | Projected capacitive system |
| Touch technology | Multi-touch |
| Number of simultaneous touchpoints | 10 |
| Display brightness (typical) | 350 cd/m² |
| Display brightness | 305 cd/m² |
| Response time | 8 ms |
| Response time measurement type | GTG (Gray to Gray) |
| Screen shape | Flat |
| Contrast ratio (typical) | 1000:1 |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Display number of colours | 16.7 million colours |
| Pixel pitch | 0.247 x 0.247 mm |
| Horizontal scan range | 30 - 84 kHz |
| Viewable size, vertical | 26.8 cm |
| Display diagonal (metric) | 54.6 cm |
| Surface hardness | 7H |
| Touchscreen | |
| Ergonomics | |

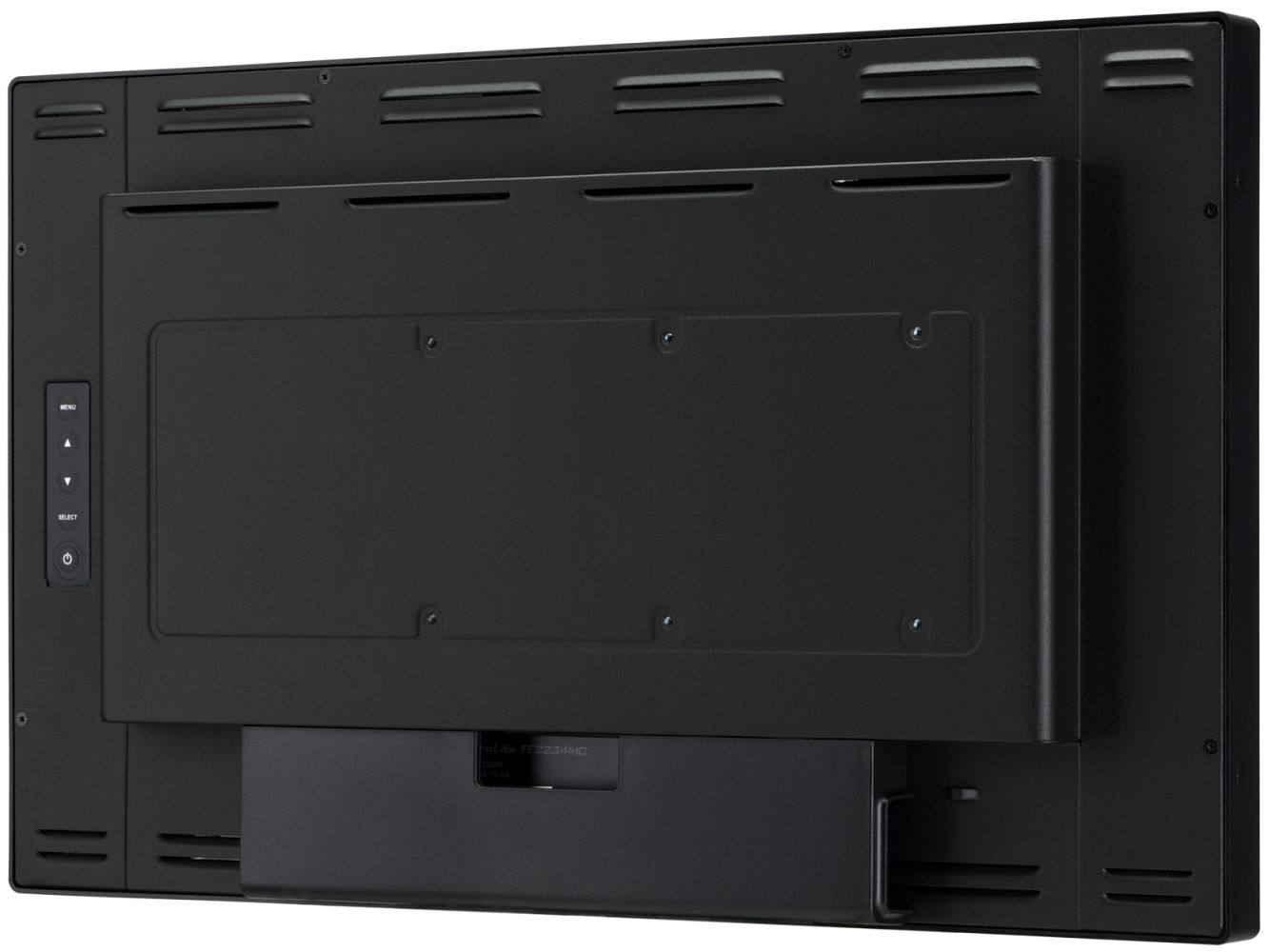

| Panel mounting interface | 100 x 100 mm |
| On Screen Display (OSD) languages | Czech, German, English, Spanish, French, Italian, Japanese, Polish, Russian |
| Number of OSD languages | 8 |
| VESA mounting | |
| Wall mountable | |
| On Screen Display (OSD) | |
| Logistics data | |
| Products per pallet | 48 pc(s) |
| Pallet net width | 109 cm |
| Pallet net length | 192.7 cm |
| Pallet net height | 109 cm |
| Harmonized System (HS) code | 85285210 |
| Multimedia | |
| Built-in microphone | |
| Built-in camera | |
| Other features | |
| International Protection (IP) code | IP65 |
| Compatible operating systems | All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section. |
| Display viewable area (HxV) | 476 x 267.7 mm |
| User controls | picture (contrast, brightness, H.position, V.position, phase, clock, auto adjust), advanced (color temp., sharpness), OSD (time out, position, H-position, V-position, Touch switch), option (reset, language, source select, display mode, factory) |

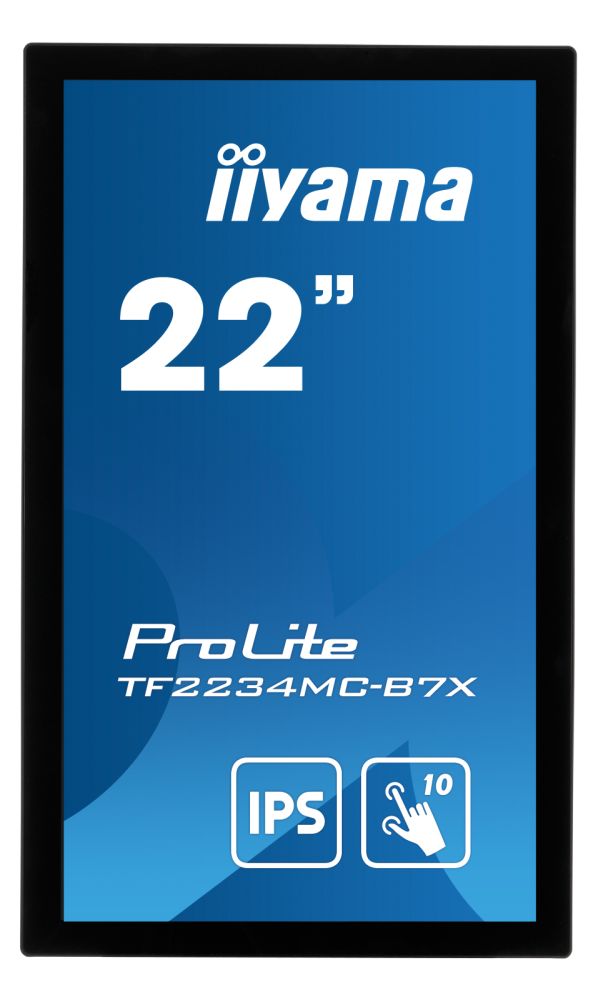

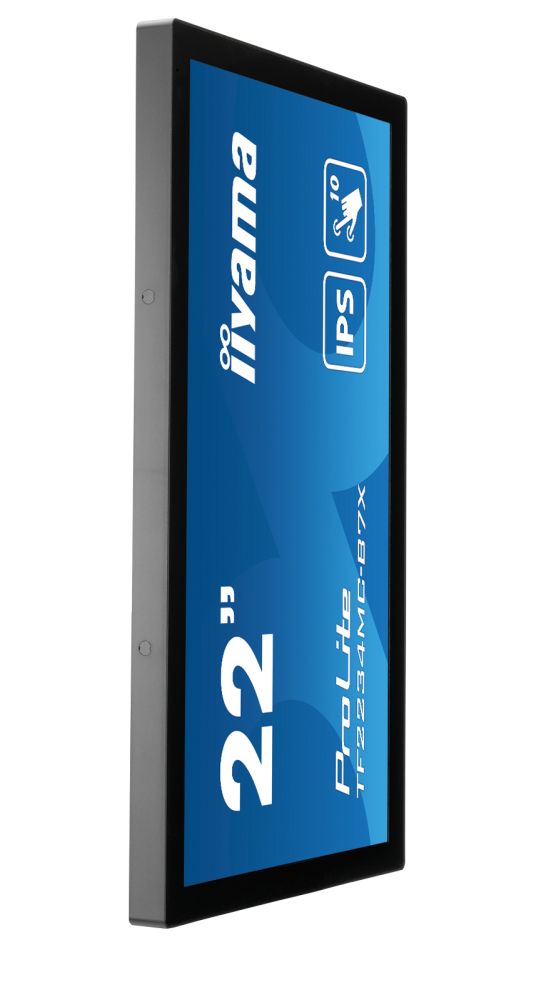

| Placement supported | Horizontal/Vertical |
| Brightness | 305 cd/m² |
| Packaging content | AC adapter |
| Touch method | stylus, finger, glove (latex) |
| Weight | 4.4 kg |
| Height | 313.5 mm |
| Width | 517.5 mm |
| Depth | 46 mm |

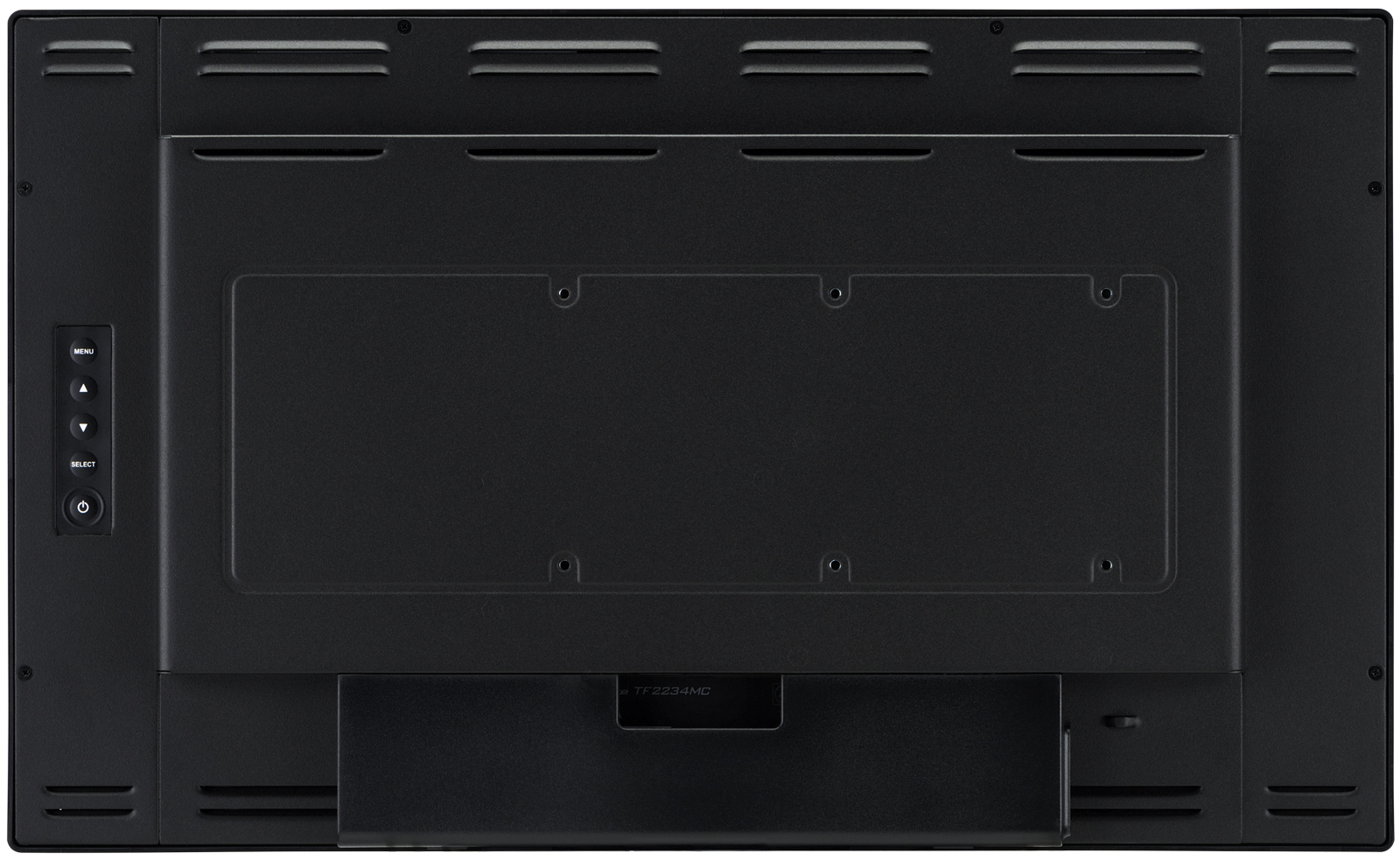

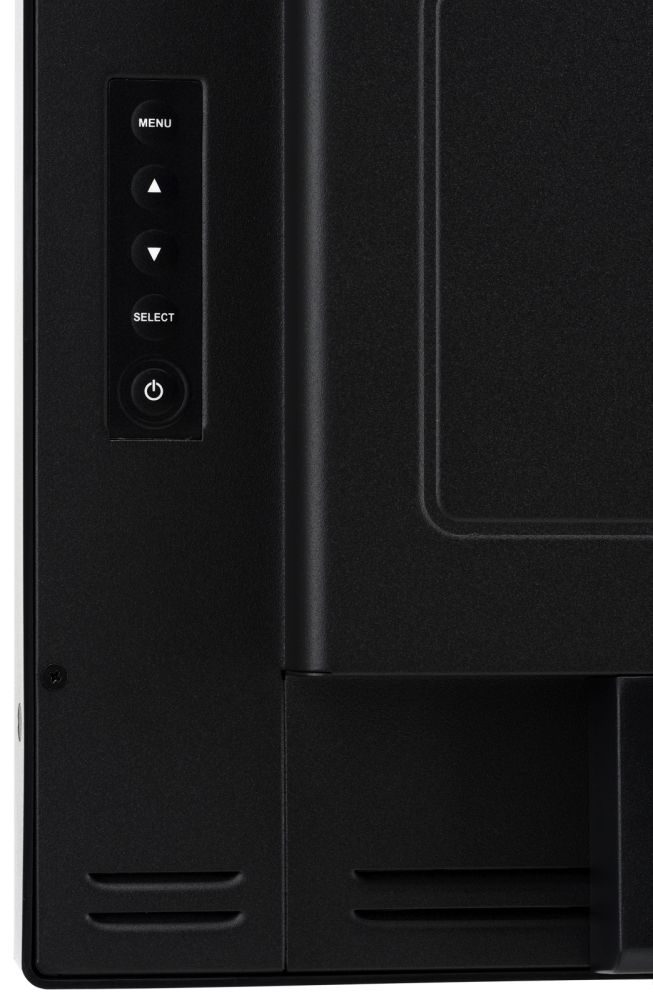

| Control panel | Menu, Scroll up/ Brightness, Scroll down/ Contrast, Select, Power |
| Compliance certificates | CE, cULus, EAC, REACH, RoHS, WEEE |
| Certification | CE, EAC, RoHS, ErP, WEEE, cULus, REACH |
| AC adapter included | |
| Packaging content | |

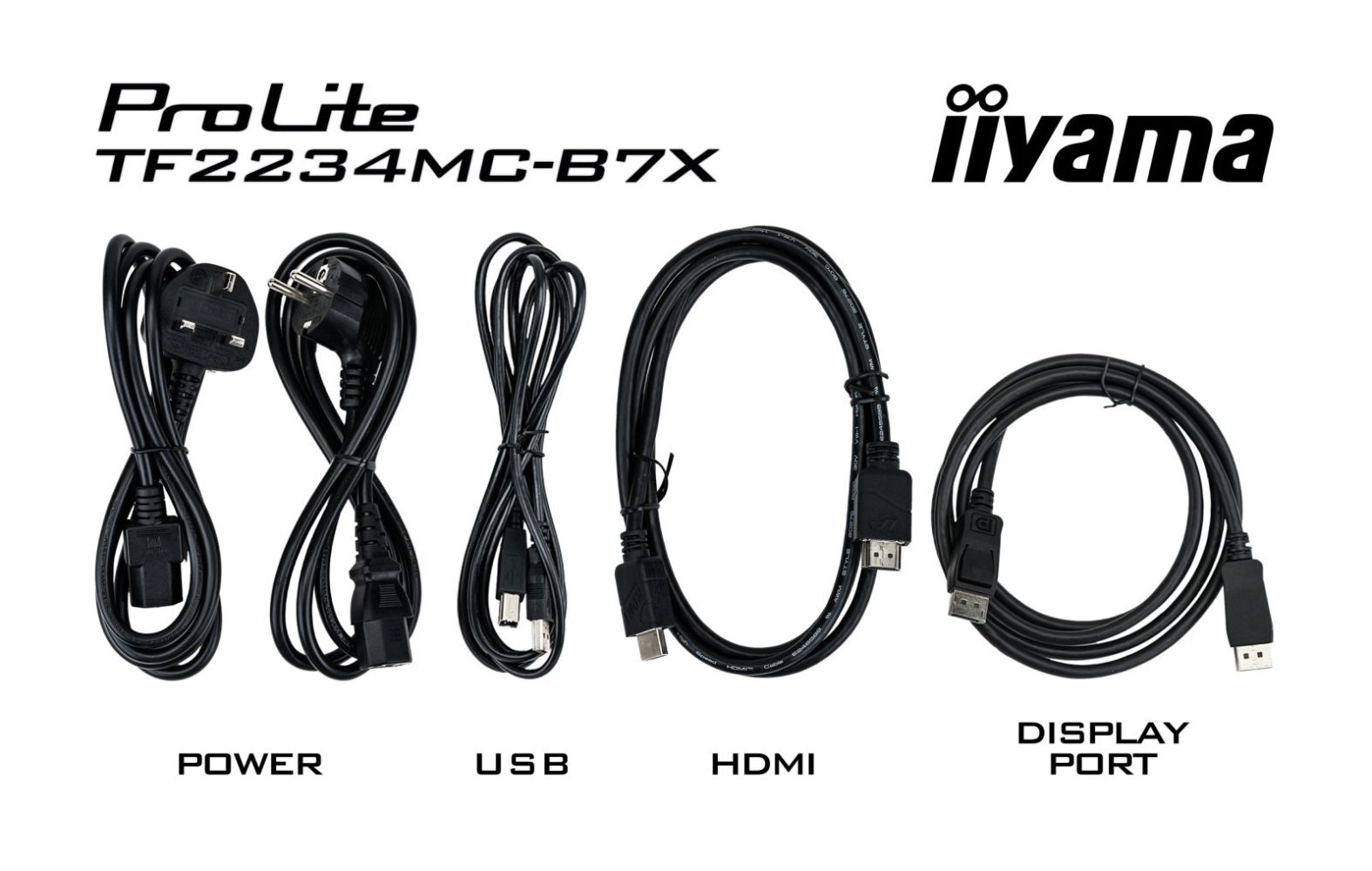

| Cables included | AC, USB, HDMI, DisplayPort |
| Quick start guide | |
| Packaging data | |
| Package width | 610 mm |
| Package depth | 160 mm |
| Package height | 405 mm |
| Package weight | 6.8 kg |
| Performance | |
| NVIDIA G-SYNC | |
| AMD FreeSync | |
| Palm rejection | |
| Ports & interfaces | |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 1 |
| USB Touch port | |
| HDMI | |
| HDCP | |
| Power | |
| Energy efficiency class (SDR) | E |
| Energy consumption (SDR) per 1000 hours | 19 kWh |
| Power consumption (typical) | 18 W |
| Power consumption (standby) | 1.5 W |
| Power consumption (off) | 0.3 W |
| AC adapter output voltage | 12 V |
| Power supply type | External |
| Energy efficiency scale | A to G |
| Sustainability | |
| Sustainability certificates | ErP |
| Weight & dimensions | |
| Width (with stand) | 517.5 mm |
| Depth (with stand) | 46 mm |
| Height (with stand) | 313.5 mm |
| Weight (with stand) | 4.4 kg |
| Width (without stand) | 517.5 mm |
| Depth (without stand) | 46 mm |
| Height (without stand) | 313.5 mm |
| Weight (without stand) | 4.4 kg |
Please note...
We have listed this article as 'end-of-life', which means that it will only be sold until it is completely sold out ! Please mind that we cannot guarantee you, you will receive the article, although it may be betokened as available. You can find the date from when the article was marked end-of-life to the top.
Questions & answers
What is the delivery time of IIYAMA 54.6cm (21.5") TF2234MC-B7X 16:9 M-Touch HDMI+DP IPS?
The article IIYAMA 54.6cm (21.5") TF2234MC-B7X 16:9 M-Touch HDMI+DP IPS is currently in stock
According to our experience the article is ready for dispatch within 7 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Iiyama TF2234MC-B7X to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you IIYAMA 54.6cm (21.5") TF2234MC-B7X 16:9 M-Touch HDMI+DP IPS always at the best possible price. We can give you a discount of 2% on IIYAMA 54.6cm (21.5") TF2234MC-B7X 16:9 M-Touch HDMI+DP IPS if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
