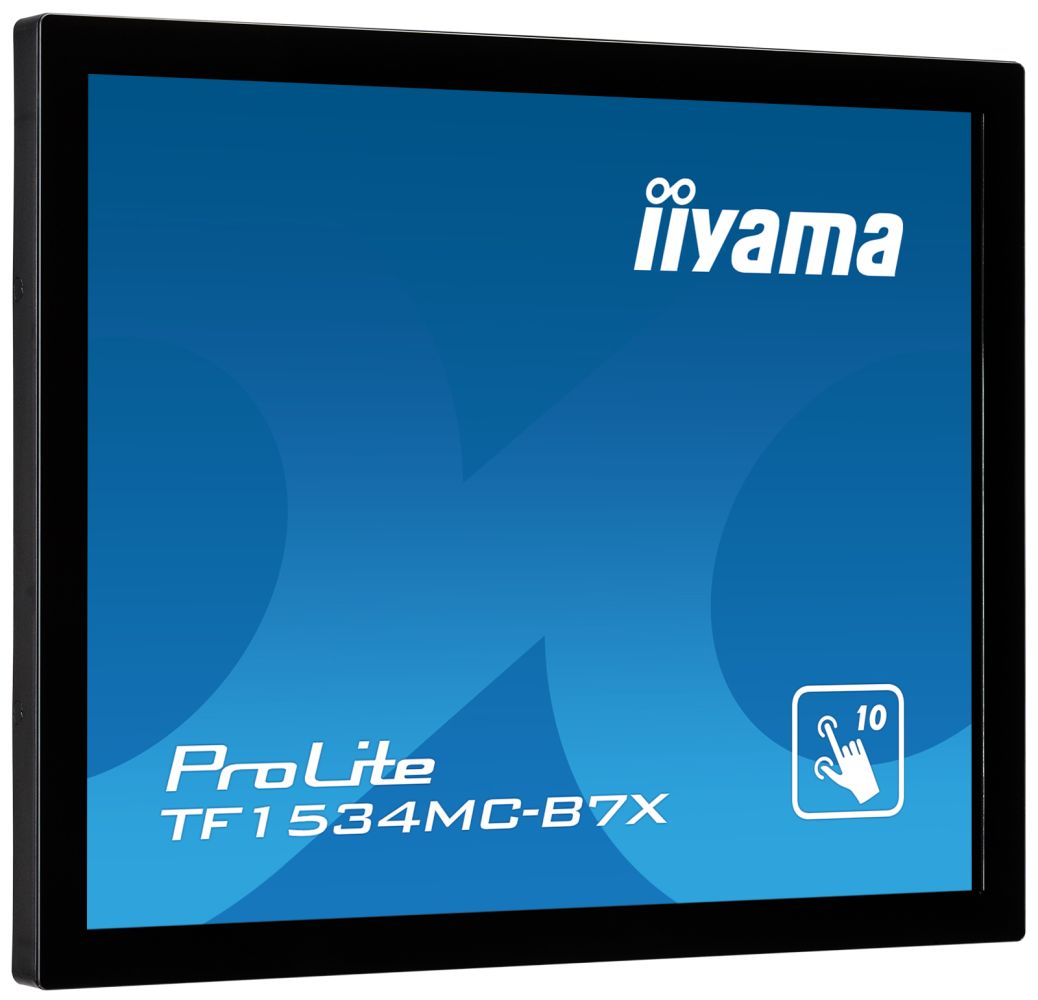

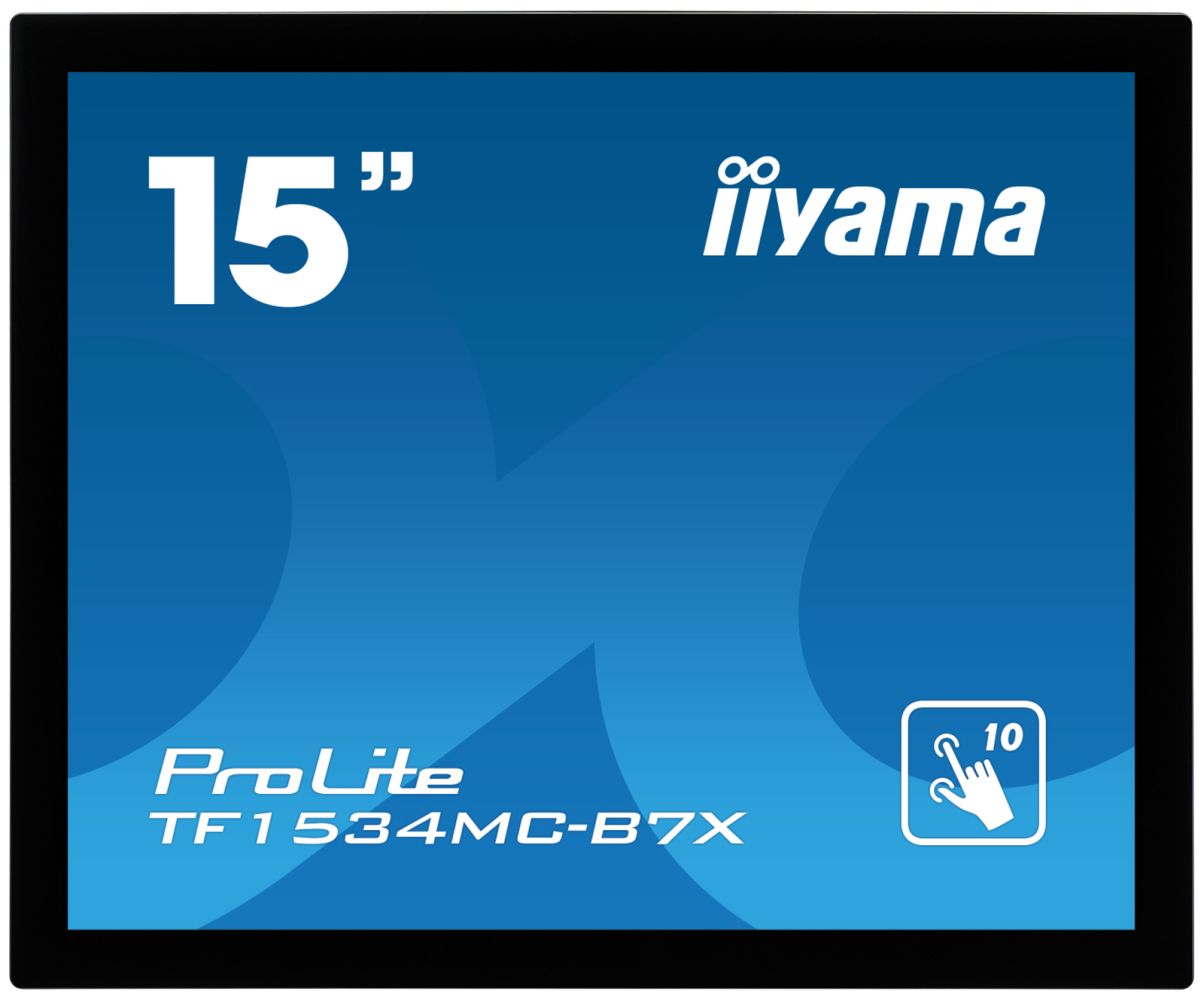

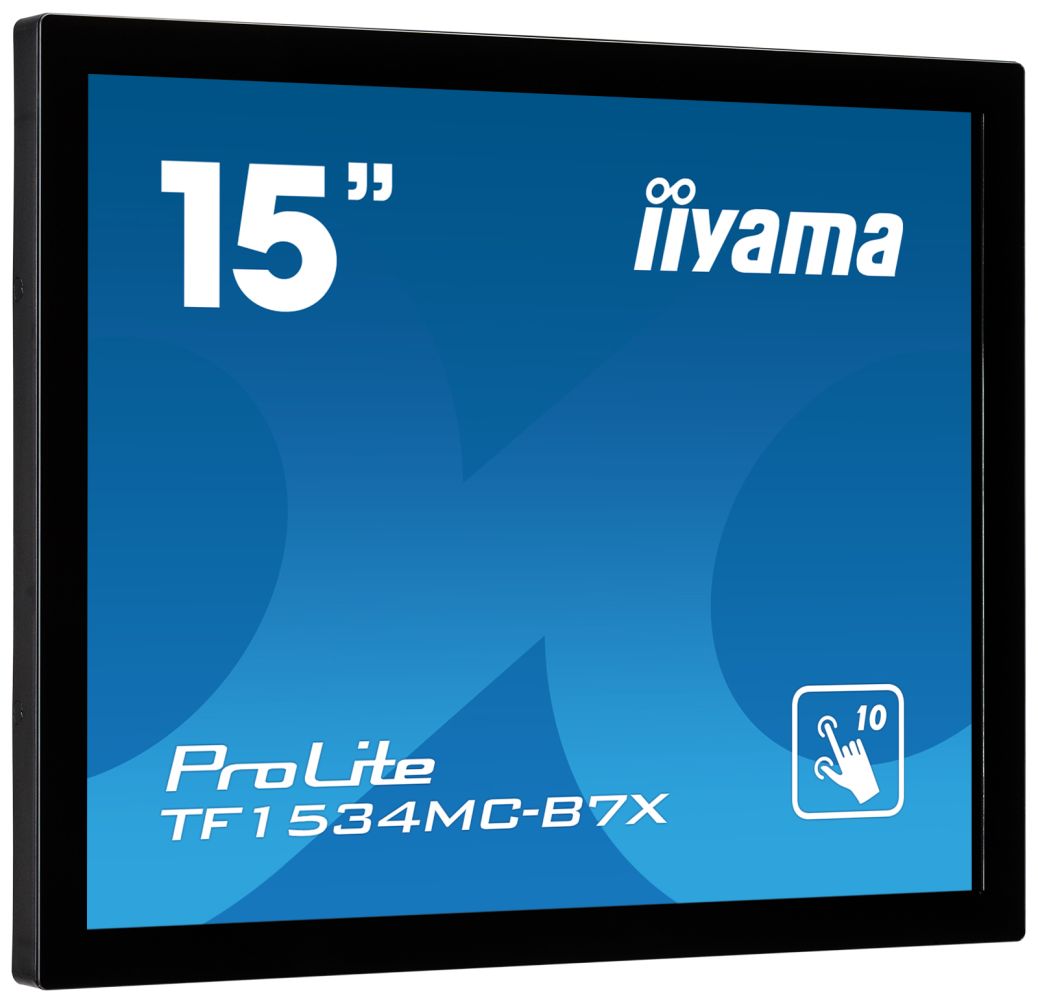

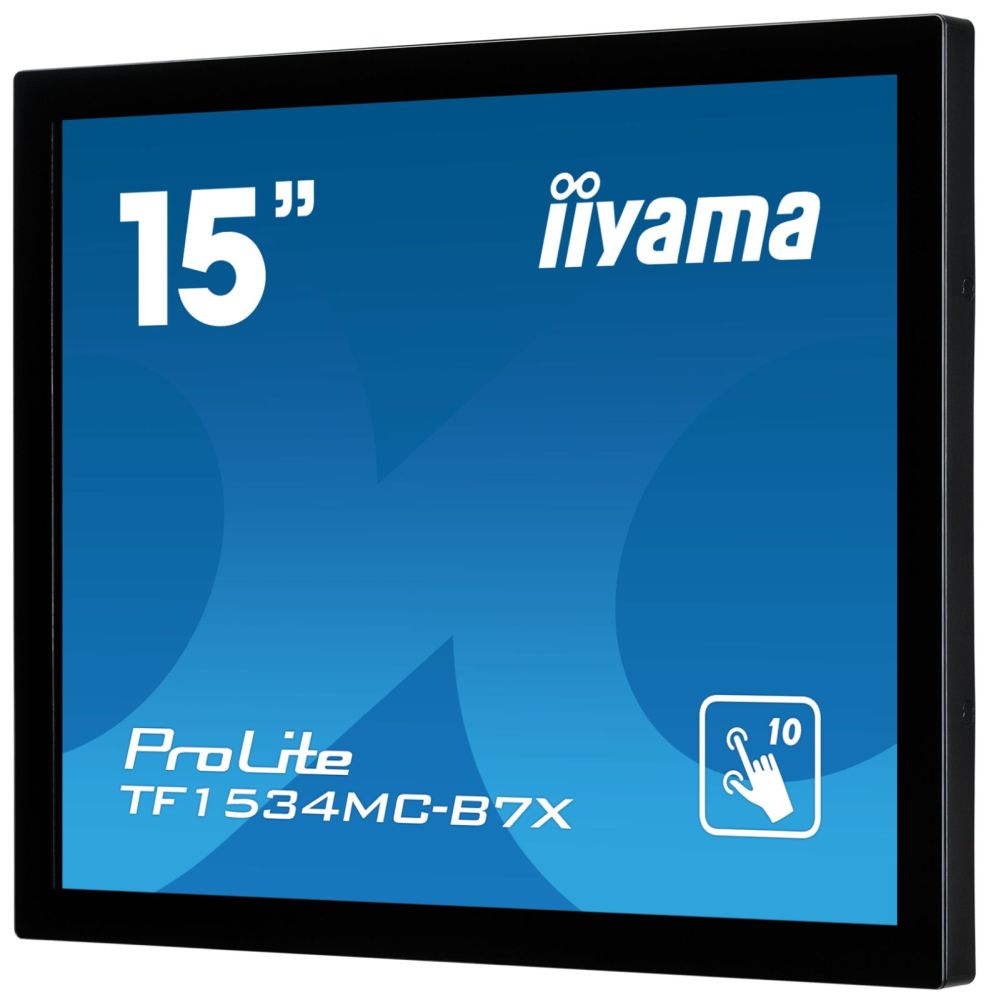

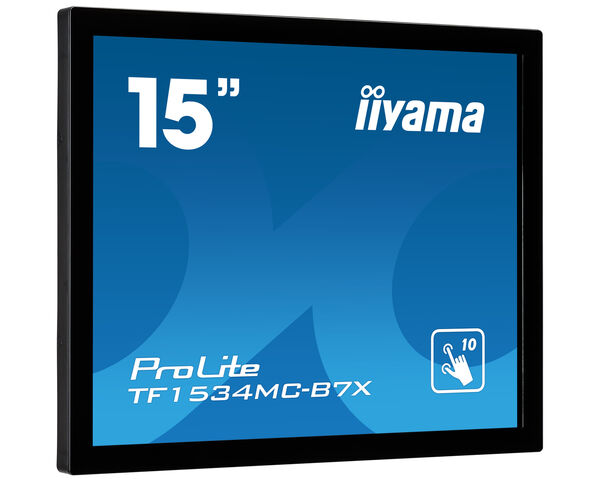

IIYAMA 38.0cm (15") TF1534MC-B7X 4:3 M-Touch HDMI+DP
|
410,66 EUR |
|
|
( 488,69 EUR incl. VAT ) ≈ £344.95 | ≈ $460.76 plus delivery charges: 53,00 € |
|
| Delivery time from supplier's stock (ca.) 7 workdaysinfo_outline | |
| In Stock: >10 pieces | |
| End-Of-Life: | 06. Aug 2026 |
|---|---|
| Datasheet: | file_download Download |
| Lieske Part No.: | 1176321 |
| Mfg Part No: | TF1534MC-B7X |
| UPC/EAN: | 4948570118380 |
| Weight: | 4.55 kg |
| Type: | MNTR |
Further TouchScreen LCD from IiyamaFurther products in category TouchScreen LCD
All products of Iiyama
Product information for Iiyama TF1534MC-B7X:
Diagonal: 38,1 cm ( 15 inch )/38cm
- Resolution: 1024x768, 4:3
- Brightness: 330cd/m² with touch panel
- Contrast: 700:1 (static)
- Response time: 8ms
- Viewing angle: 170°/160°
- Panel: TN
- Connections : 1x VGA, 1x HDMI 1.4, 1x DisplayPort
- Touchscreen: projective capacitive
- VESA: 100x100 (occupied)
- Manufacturer's warranty: three years after registration
| Design | |
| Product colour | Black |
| Front bezel colour | Black |
| Display | |
| Display diagonal | 38.1 cm (15") |
| Display resolution | 1024 x 768 pixels |
| HD type | XGA |
| Native aspect ratio | 4:3 |
| Display technology | LED |
| Panel type | TN |
| Touchscreen type | Multi-user |
| Touchscreen technology | Projected capacitive system |
| Touch technology | Multi-touch |
| Number of simultaneous touchpoints | 10 |
| Display brightness (typical) | 370 cd/m² |
| Display brightness | 330 cd/m² |
| Response time | 8 ms |
| Screen shape | Flat |
| Contrast ratio (typical) | 700:1 |
| Viewing angle, horizontal | 170° |
| Viewing angle, vertical | 160° |
| Display number of colours | 16.2 million colours |
| Pixel pitch | 0.297 x 0.297 mm |
| Horizontal scan range | 31.4 - 60 kHz |
| Viewable size, horizontal | 30.4 cm |
| Viewable size, vertical | 22.8 cm |
| Display diagonal (metric) | 38 cm |
| Surface hardness | 7H |
| Touchscreen | |
| Ergonomics | |

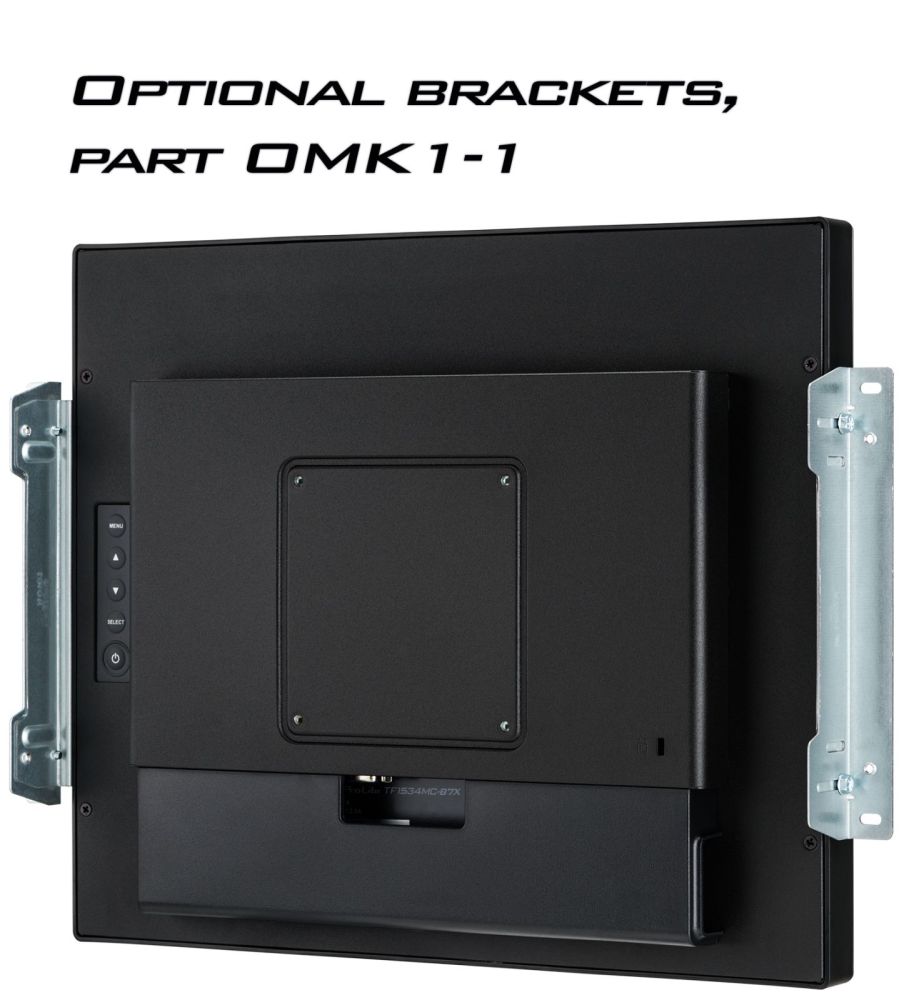

| Panel mounting interface | 100 x 100 mm |
| Cable lock slot type | Kensington |
| On Screen Display (OSD) languages | Traditional Chinese, German, English, Spanish, French, Italian, Japanese |
| Number of OSD languages | 7 |
| VESA mounting | |
| Wall mountable | |
| Cable lock slot | |
| On Screen Display (OSD) | |
| Logistics data | |
| Products per pallet | 78 pc(s) |
| Pallet net width | 91 cm |
| Pallet net length | 198.7 cm |
| Pallet net height | 114 cm |
| Harmonized System (HS) code | 85285210 |
| Other features | |
| International Protection (IP) code | IP65 |
| Compatible operating systems | All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section. |
| Positional accuracy | 2 mm |
| Display viewable area (HxV) | 304 x 228 mm |
| Brightness | 330 cd/m² |
| Packaging content | AC adapter |
| Active display area (W x H) | 304 x 228 mm |
| Weight | 2.7 kg |
| User controls | picture (contrast, brightness, H.position, V.position, phase, clock, auto adjust), advanced (color temp., sharpness), OSD (time out, position, H-position, V-position, Touch switch), option (reset, language, source select, display mode, factory) |
| Touch method | stylus, finger, glove (latex) |
| Height | 265.5 mm |
| Width | 337.5 mm |

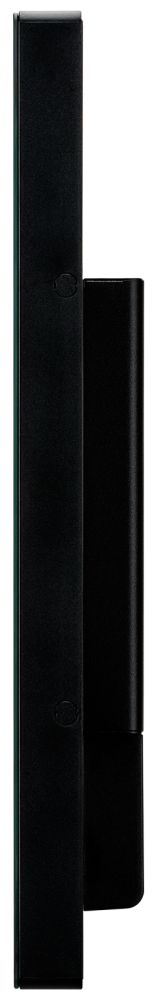

| Depth | 44.5 mm |

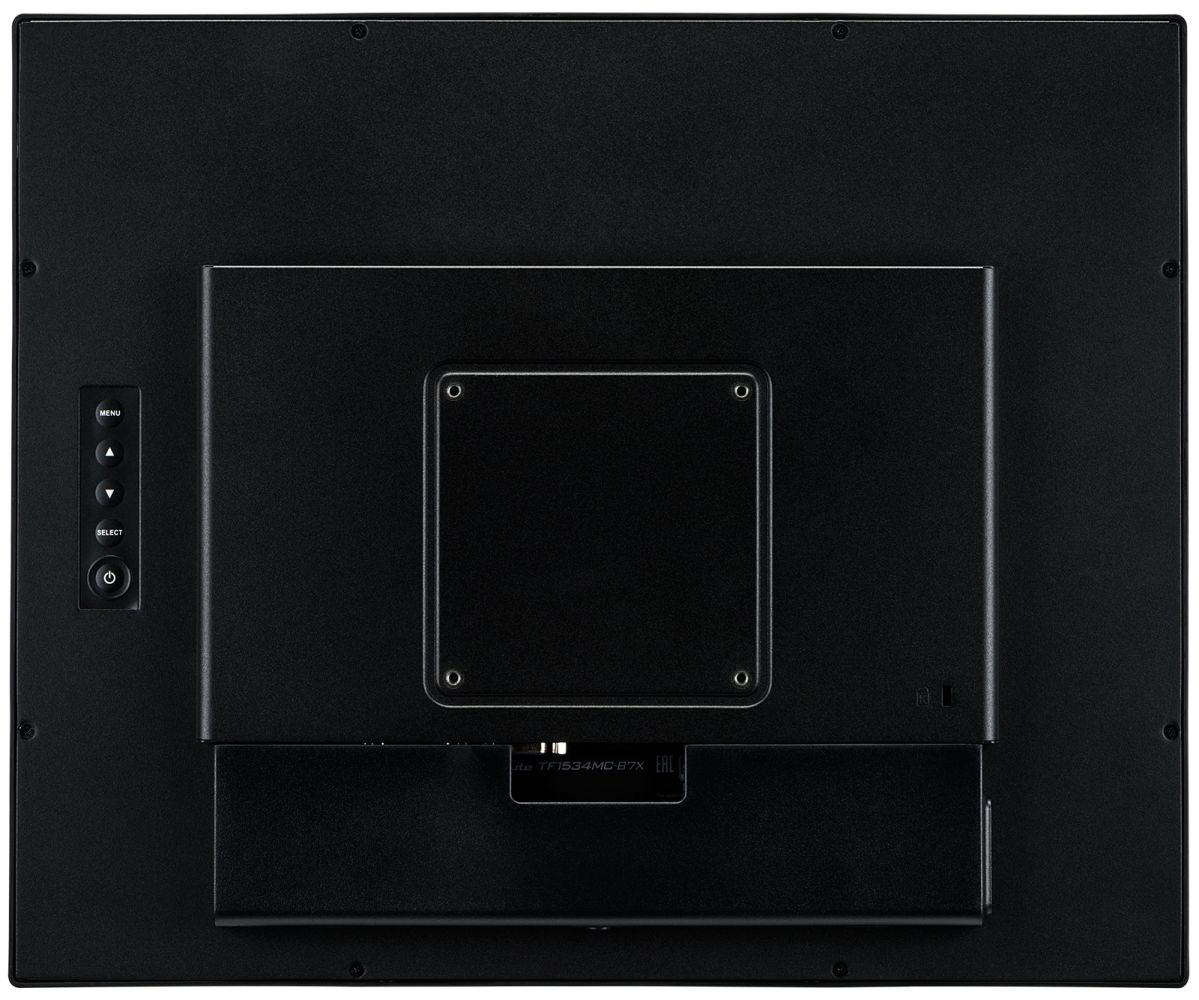

| Control panel | Menu, Scroll up/ Brightness, Scroll down/ Contrast, Select, Power |
| Compliance certificates | CE, cULus, EAC, REACH, RoHS, WEEE |
| Mean time between failures (MTBF) | 50000 h |
| AC adapter included | |
| Packaging content | |

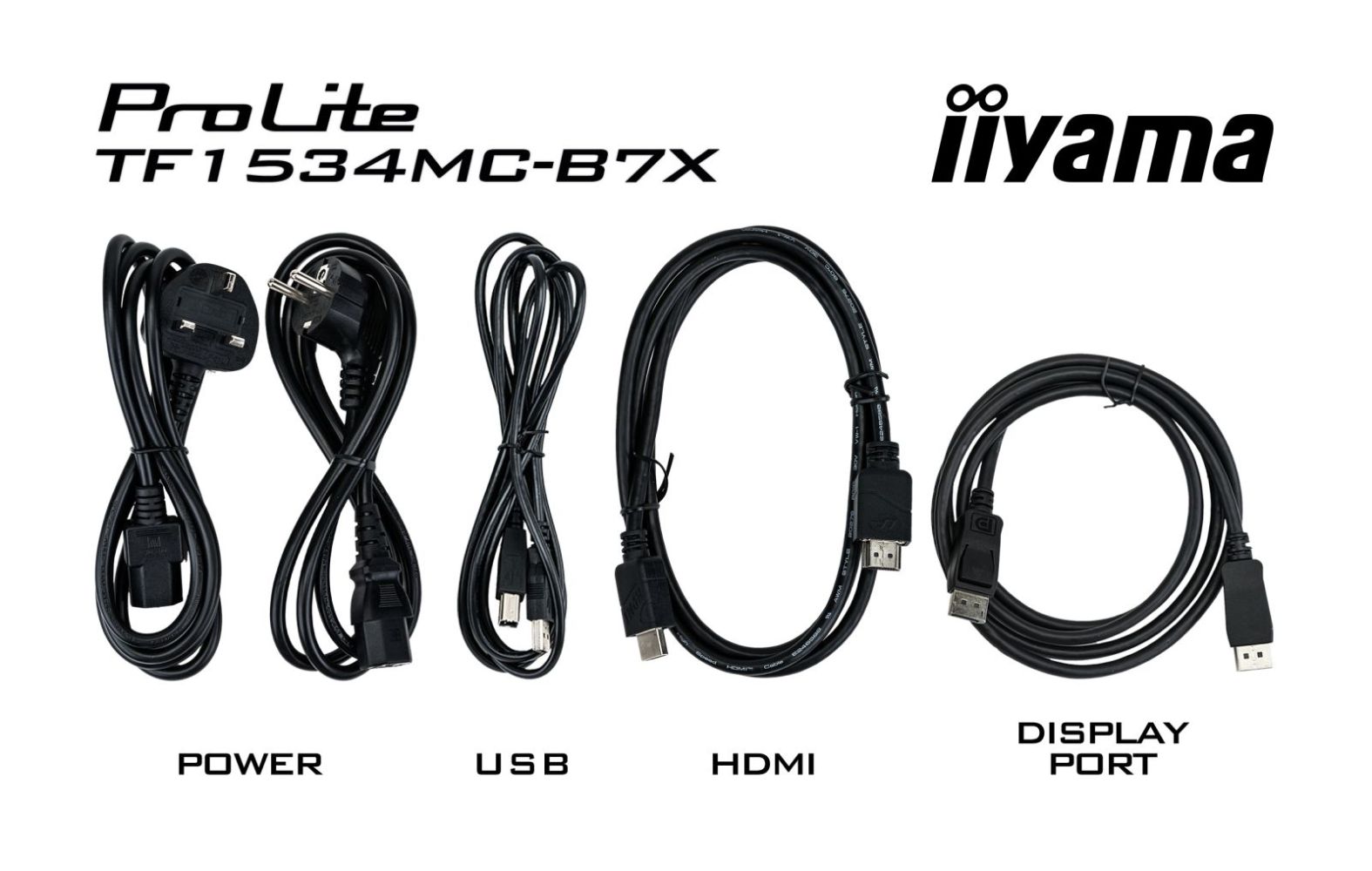

| Cables included | AC, USB, HDMI, DisplayPort |
| DisplayPort cable length | 1.8 m |
| HDMI cable length | 1.8 m |
| Power cable length | 1.8 m |
| Quick start guide | |
| Packaging data | |
| Package width | 435 mm |
| Package depth | 165 mm |
| Package height | 335 mm |
| Package weight | 4 kg |
| USB cable length | 1.8 m |
| Performance | |
| NVIDIA G-SYNC | |
| AMD FreeSync | |
| Palm rejection | |
| Ports & interfaces | |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 1 |
| USB Touch port | |
| HDMI | |
| HDCP | |
| Power | |
| Energy efficiency class (SDR) | E |
| Energy efficiency class (HDR) | Not available |
| Energy consumption (SDR) per 1000 hours | 10 kWh |
| Power consumption (typical) | 9 W |
| Power consumption (standby) | 0.7 W |
| Power consumption (off) | 0.3 W |
| AC adapter output voltage | 12 V |
| Power supply type | External |
| Energy efficiency scale | A to G |
| Sustainability | |
| Sustainability certificates | ErP |
| Technical details | |
| Native refresh rate | 60 Hz |
| Weight & dimensions | |
| Width (with stand) | 337.5 mm |
| Depth (with stand) | 44.5 mm |
| Height (with stand) | 265.5 mm |
| Weight (with stand) | 2.7 kg |
| Width (without stand) | 337.5 mm |
| Depth (without stand) | 44.5 mm |
| Height (without stand) | 265.5 mm |
| Weight (without stand) | 2.7 kg |
