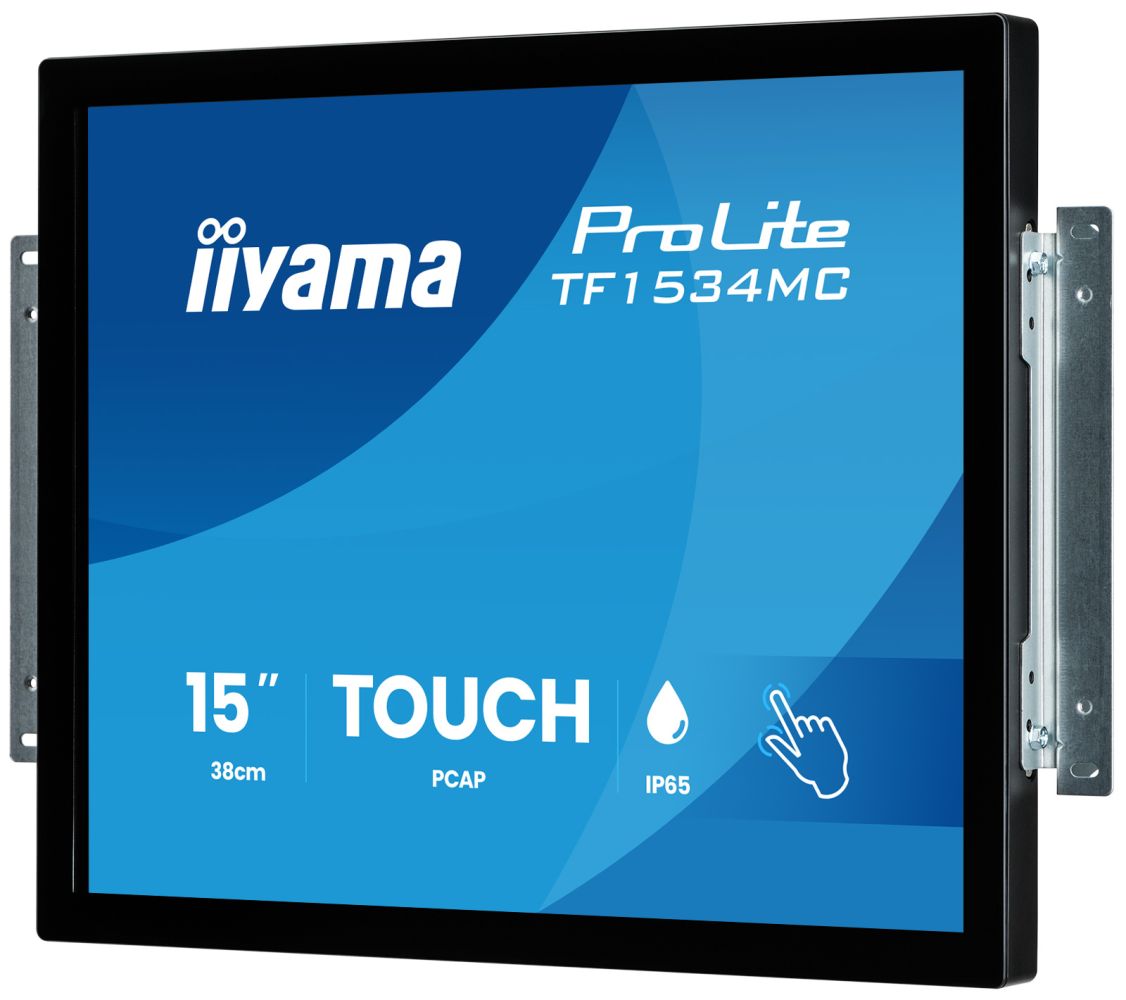

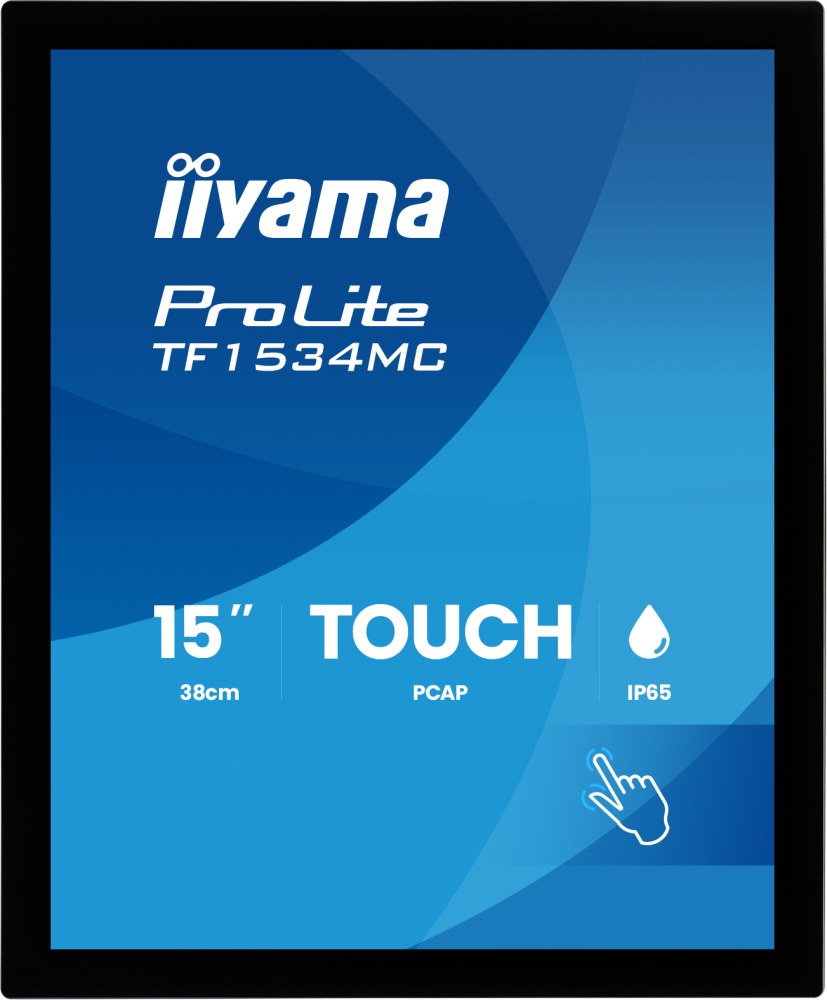

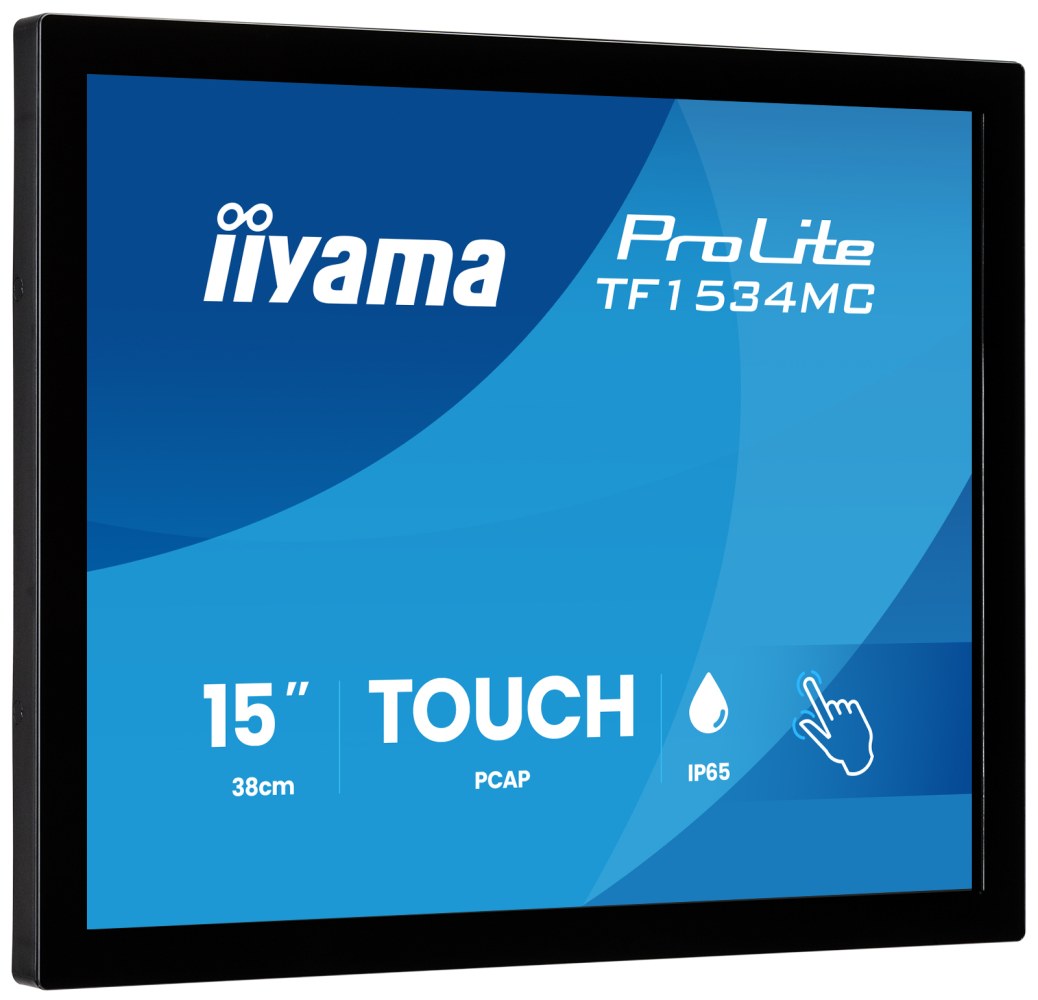

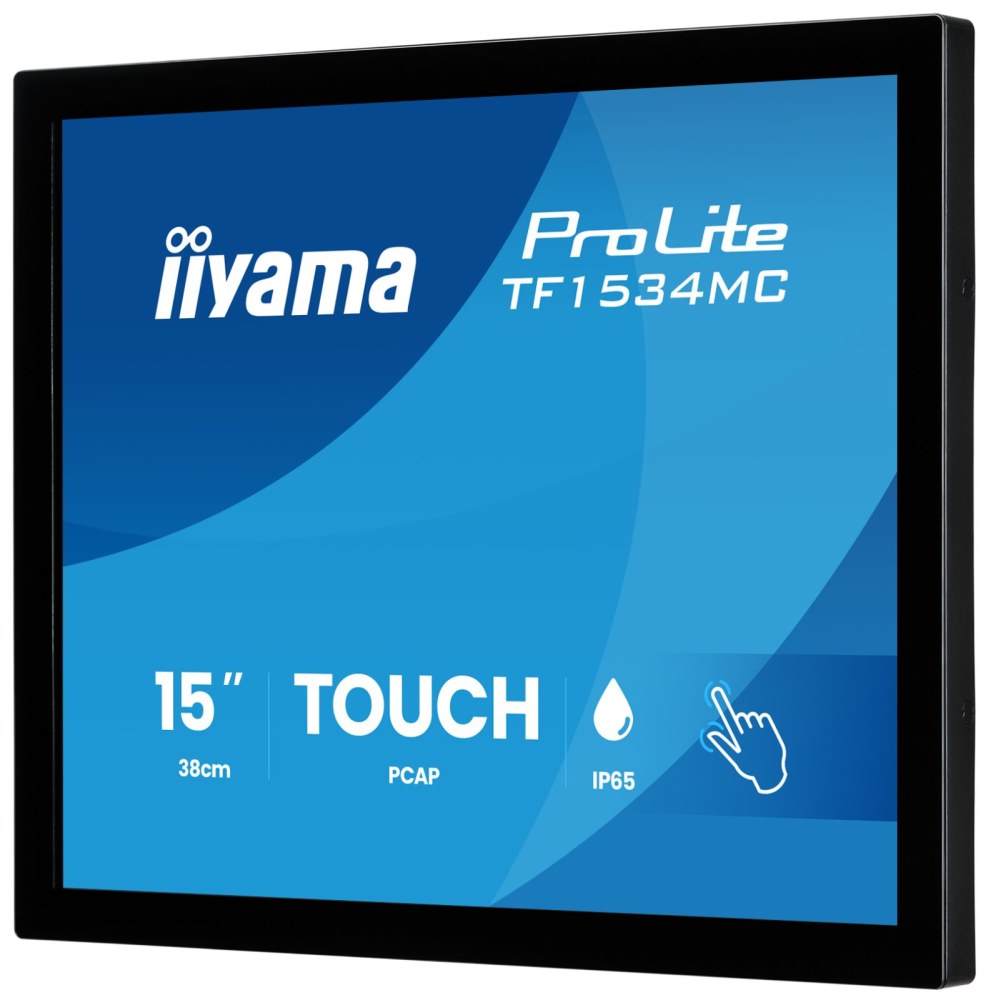

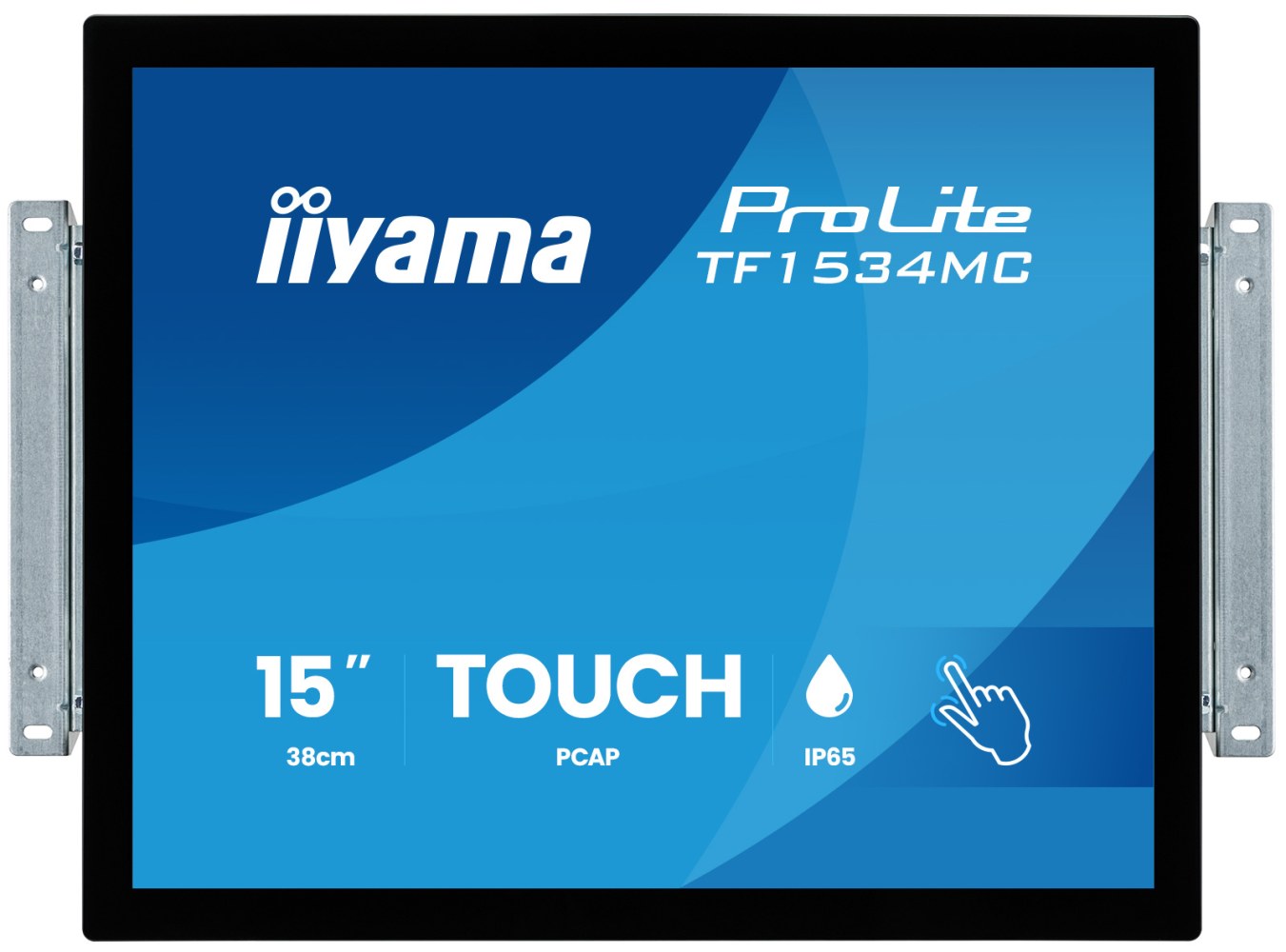

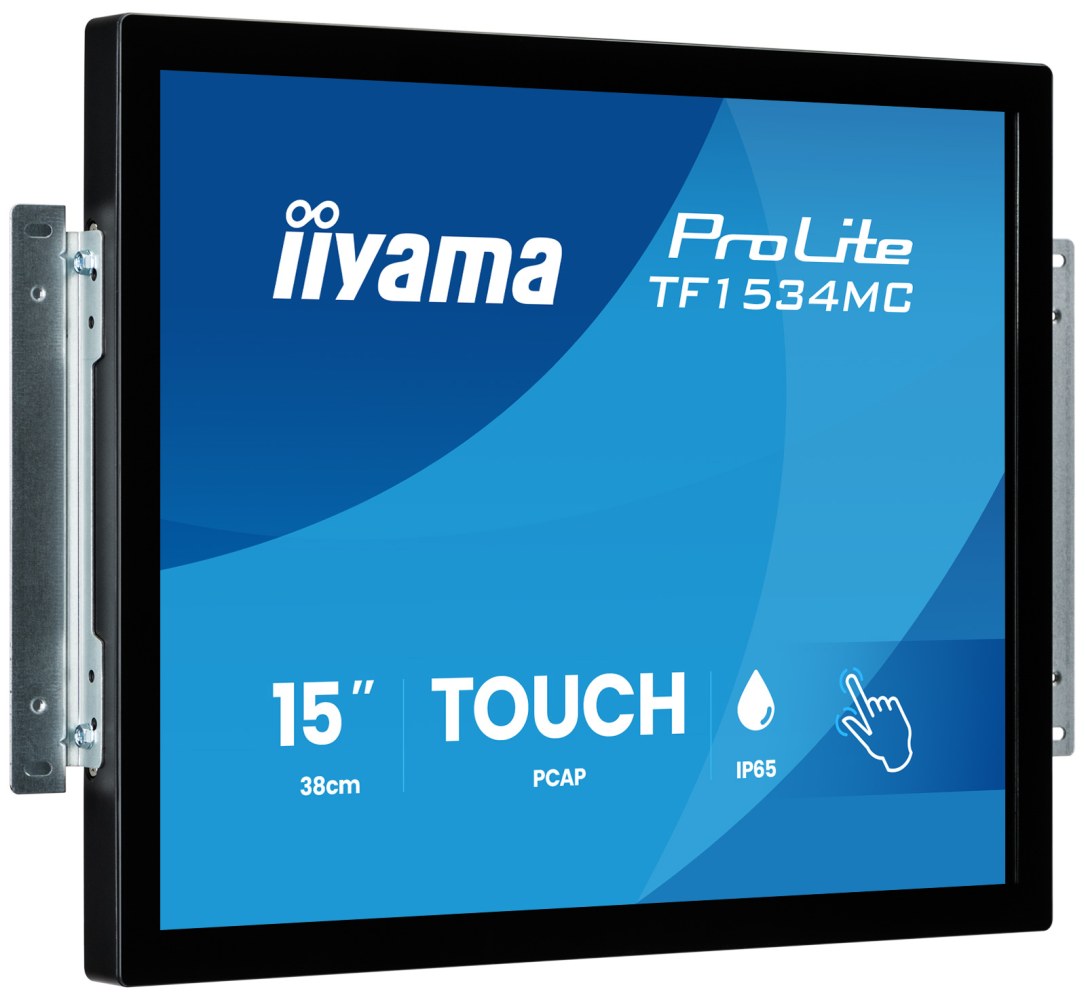

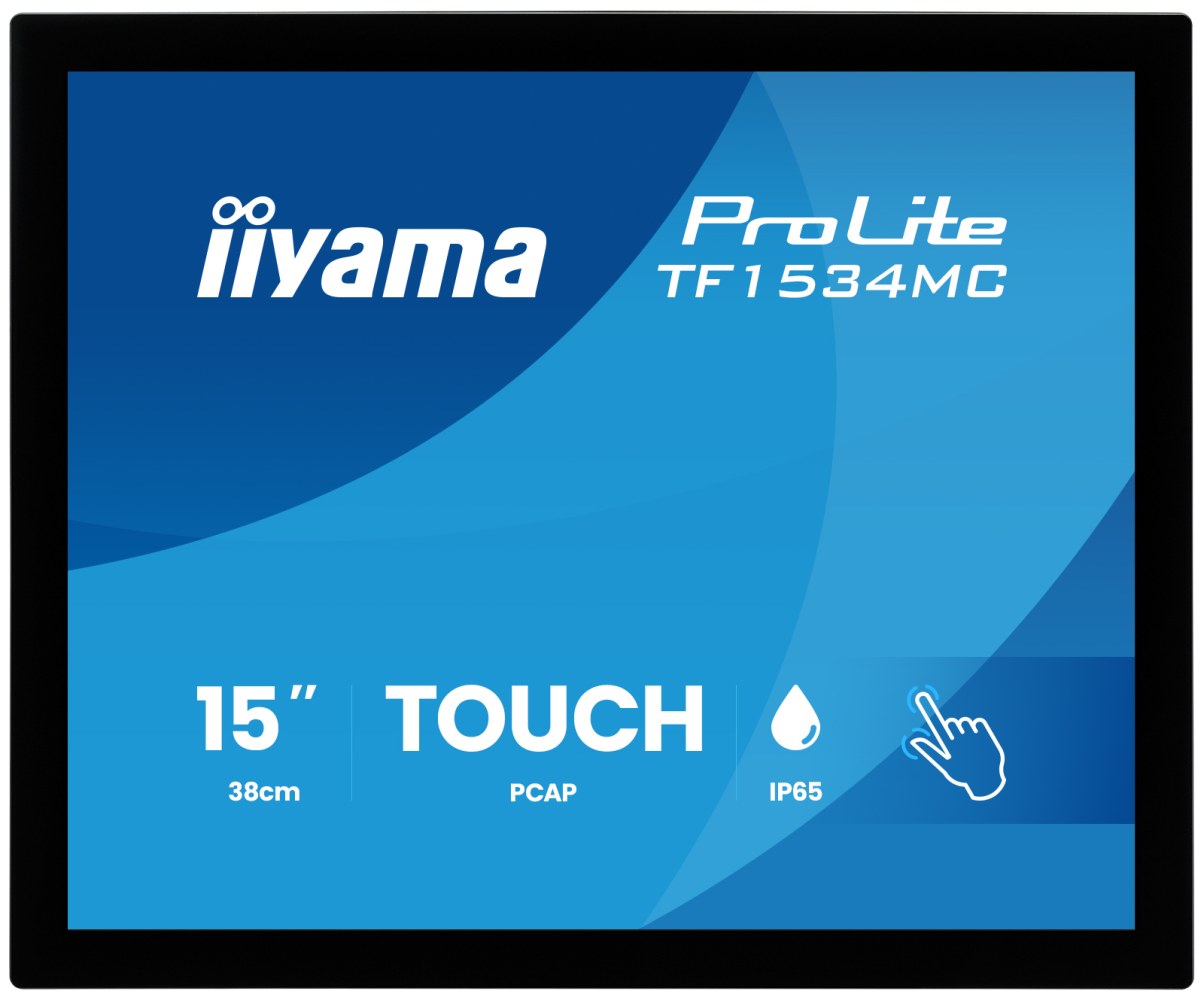

Iiyama TF1534MC-B8X 38.0 cm (15") 4:3 M-Touch HDMI+DP
|
405,21 EUR |
|
|
( 482,20 EUR incl. VAT ) ≈ £340.38 | ≈ $454.65 plus delivery charges: 53,00 € |
|
| Delivery time from supplier's stock (ca.) 5 workdaysinfo_outline | |
| In Stock: >10 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 207635 |
| Mfg Part No: | TF1534MC-B8X |
| UPC/EAN: | 4948570127801 |
| Weight: | 4.5 kg |
| Type: | MNTR |
Further TouchScreen LCD from IiyamaFurther products in category TouchScreen LCD
All products of Iiyama
Product information for Iiyama TF1534MC-B8X:
• Sichtbare Bildschirmdiagonale: 38,1 cm ( 15 inch )/38,0cm • Auflösung: 1024x768 @ 75Hz • Helligkeit: 300cd/m² • Kontrast: 800:1 • Touch: Projectiv kapazitiv • Touch-Oberfläche: USB • Reaktionszeit: 18ms • Blickwinkel: 170°/160° • Panel: TN • Anschlüsse: 1x VGA, 1x HDMI, 1x DisplayPort • USB-Hub: N/A • Ergonomie: N/A • VESA: 100x100 • Audio: 2x1W • Maße: 351x306,5x200mm • Farbe: Schwarz
| Design | |
| Market positioning | Business |
| Product colour | Black |
| Front bezel colour | Black |
| Display | |
| Display diagonal | 38.1 cm (15") |
| Display resolution | 1024 x 768 pixels |
| HD type | XGA |
| Native aspect ratio | 4:3 |
| Display technology | LED |
| Panel type | TN |
| Touchscreen technology | Projected capacitive system |
| Number of simultaneous touchpoints | 10 |
| Display brightness (peak) | 350 cd/m² |
| Display brightness (typical) | 300 cd/m² |
| Display brightness | 300 cd/m² |
| Response time | 8 ms |
| Screen shape | Flat |
| Contrast ratio (typical) | 800:1 |
| Maximum refresh rate | 75 Hz |
| Viewing angle, horizontal | 170° |
| Viewing angle, vertical | 160° |
| Display number of colours | 16.2 million colours |
| Pixel pitch | 0.297 x 0.297 mm |
| Horizontal scan range | 31 - 60 kHz |
| Viewable size, horizontal | 30.4 cm |
| Viewable size, vertical | 22.8 cm |
| Display diagonal (metric) | 38 cm |
| Surface hardness | 7H |
| Touchscreen | |
| Ergonomics | |

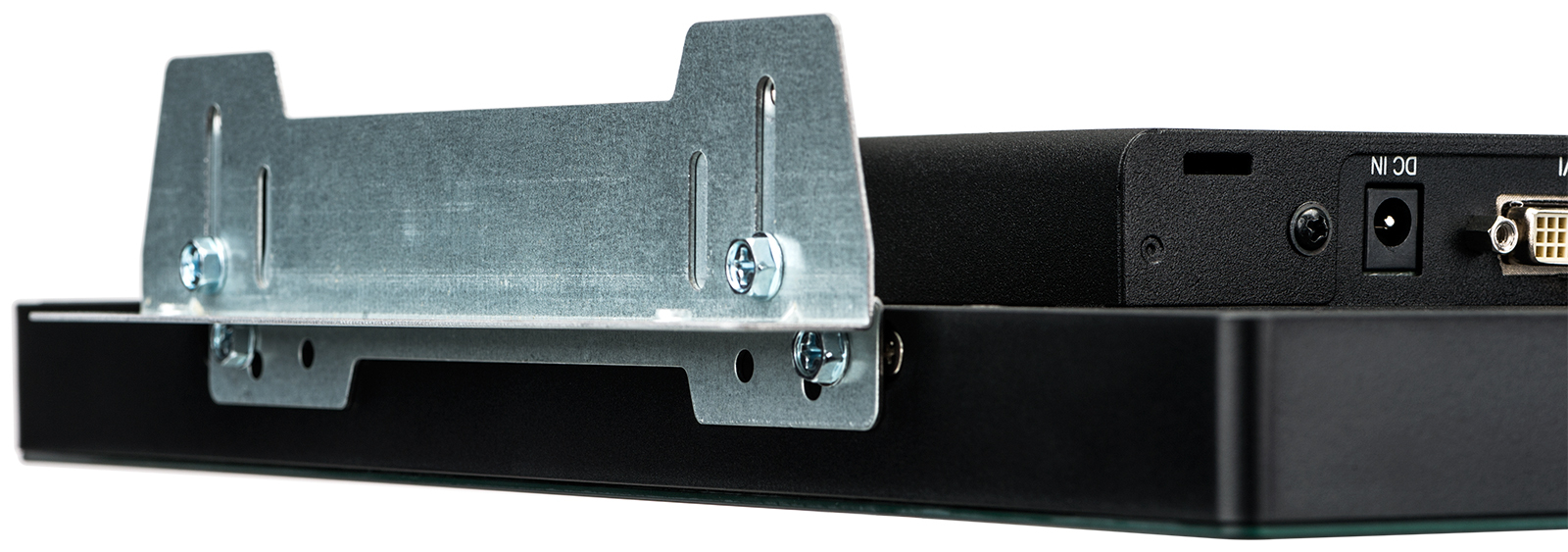

| Panel mounting interface | 100 x 100 mm |
| Cable lock slot type | Kensington |
| On Screen Display (OSD) languages | Traditional Chinese, German, English, Spanish, French, Italian, Japanese |
| VESA mounting | |
| Cable management | |
| Cable lock slot | |
| Height adjustment | |
| On Screen Display (OSD) | |
| Logistics data | |
| Pallet net width | 91 cm |
| Pallet net length | 114 cm |
| Pallet net height | 2.43 m |
| Multimedia | |
| Built-in speaker(s) | |
| Built-in camera | |
| Other features | |
| International Protection (IP) code | IP65 |
| Compatible operating systems | All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section. |
| Positional accuracy | 2 mm |
| User controls | picture (contrast, brightness, H.position, V.position, phase, clock, auto adjust), advanced (color temp., sharpness), OSD (time out, position, H-position, V-position, Touch switch), option (reset, language, source select, display mode, factory) |
| Brightness | 300 cd/m² |
| Packaging content | AC adapter |
| Active display area (W x H) | 304 x 228 mm |
| Touch method | stylus, finger, glove (latex) |
| Weight | 2.7 kg |
| Height | 267 mm |
| Width | 338 mm |
| Depth | 45 mm |

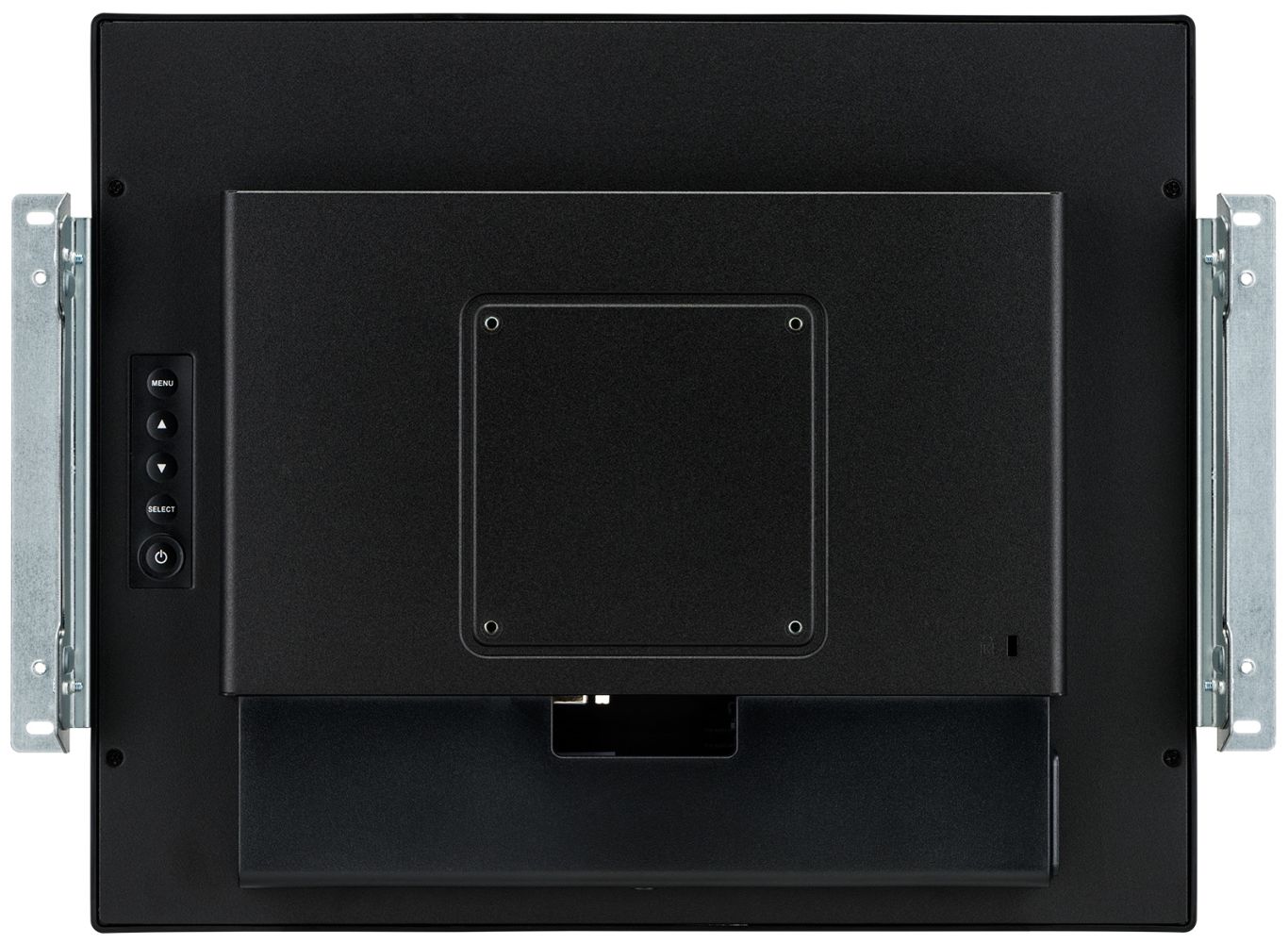

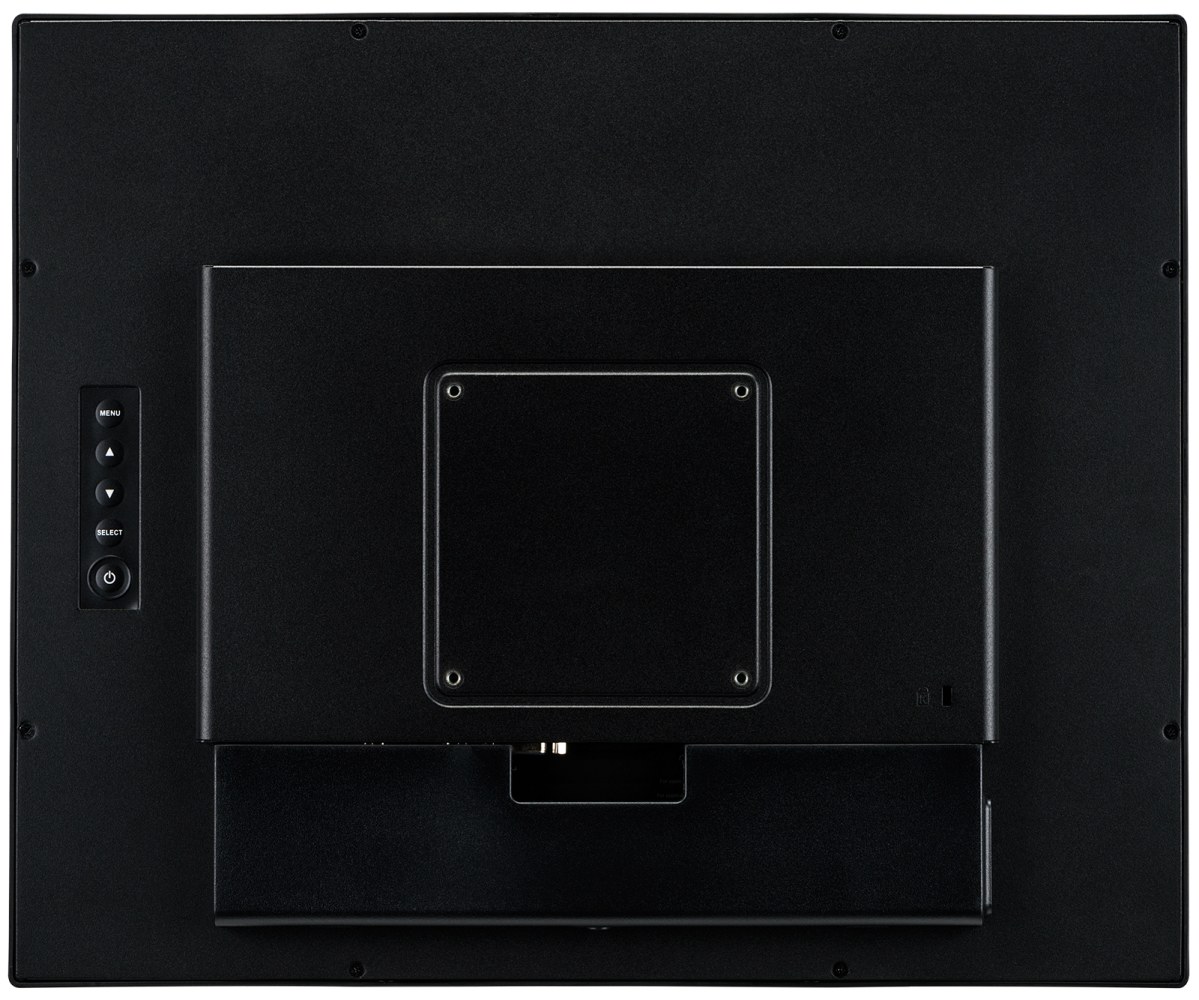

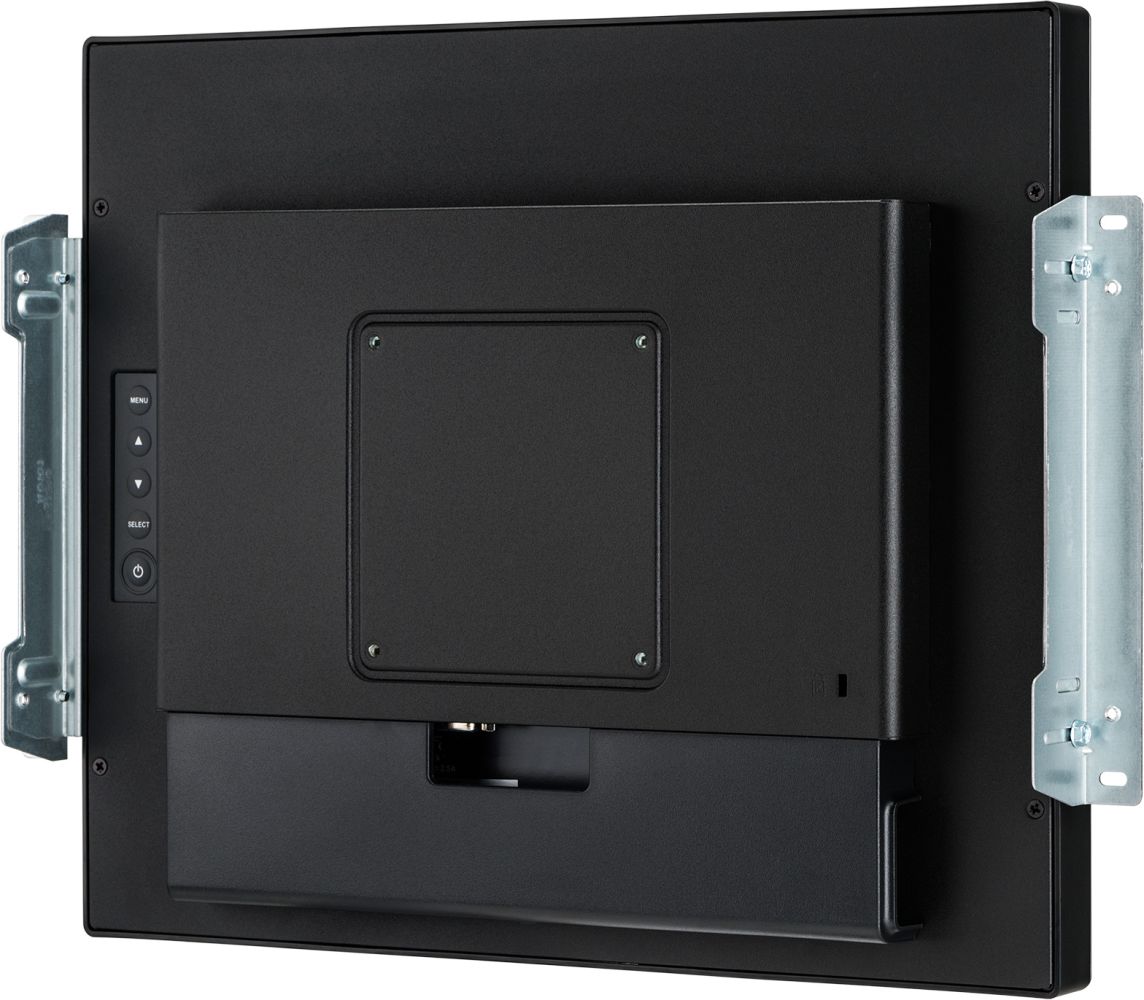

| Control panel | Menu, Scroll up/ Brightness, Scroll down/ Contrast, Select, Power |
| Compliance certificates | CE, cULus, EAC, REACH, RoHS, WEEE |
| Mean time between failures (MTBF) | 50000 h |
| AC adapter included | |
| Packaging content | |

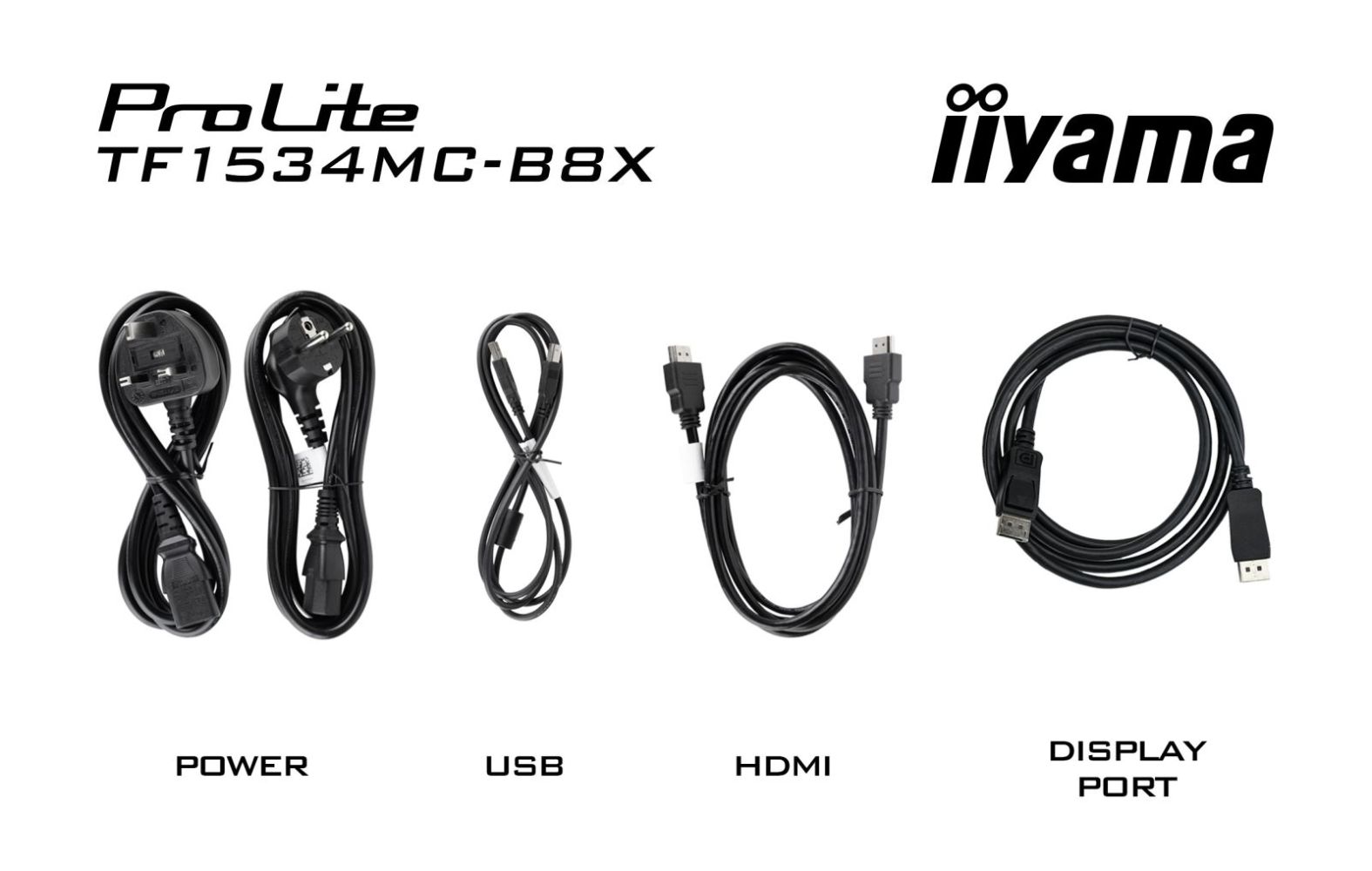

| Cables included | AC, USB, HDMI, DisplayPort |
| DisplayPort cable length | 1.8 m |
| HDMI cable length | 1.8 m |
| Power cable length | 1.8 m |
| Quick start guide | |
| Packaging data | |
| Package width | 355 mm |
| Package depth | 435 mm |
| Package height | 165 mm |
| Package weight | 4 kg |
| USB cable length | 1.8 m |
| Performance | |
| NVIDIA G-SYNC | |
| AMD FreeSync | |
| Low Blue Light technology | |
| Palm rejection | |
| Ports & interfaces | |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 1 |
| Built-in USB hub | |
| USB Touch port | |
| HDMI | |
| Headphone out | |
| HDCP | |
| Power | |
| Energy efficiency class (SDR) | D |
| Energy efficiency class (HDR) | Not available |
| Energy consumption (SDR) per 1000 hours | 9 kWh |
| Power consumption (typical) | 9 W |
| Power consumption (standby) | 1.5 W |
| Power consumption (off) | 0.3 W |
| AC adapter output voltage | 12 V |
| Power supply type | External |
| Sustainability | |
| Sustainability certificates | ErP |
| Technical details | |
| Native refresh rate | 75 Hz |
| Weight & dimensions | |
| Width (with stand) | 338 mm |
| Depth (with stand) | 45 mm |
| Height (with stand) | 267 mm |
| Weight (with stand) | 2.7 kg |
