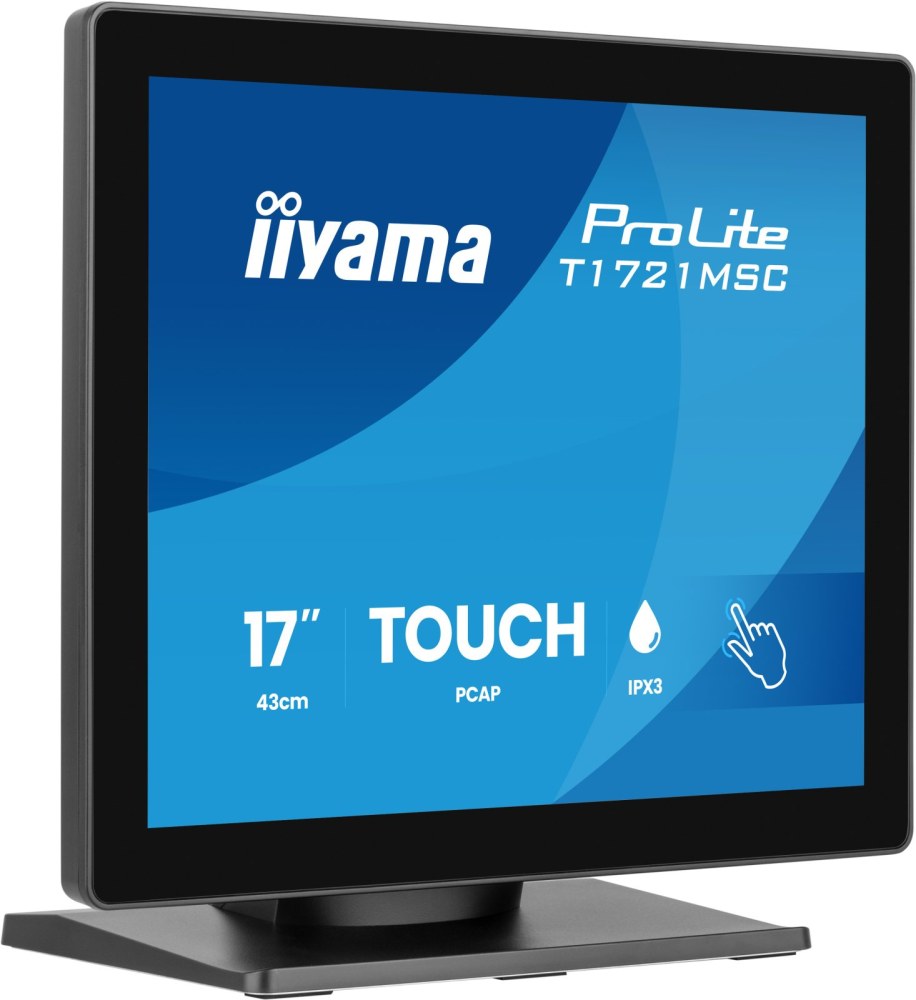

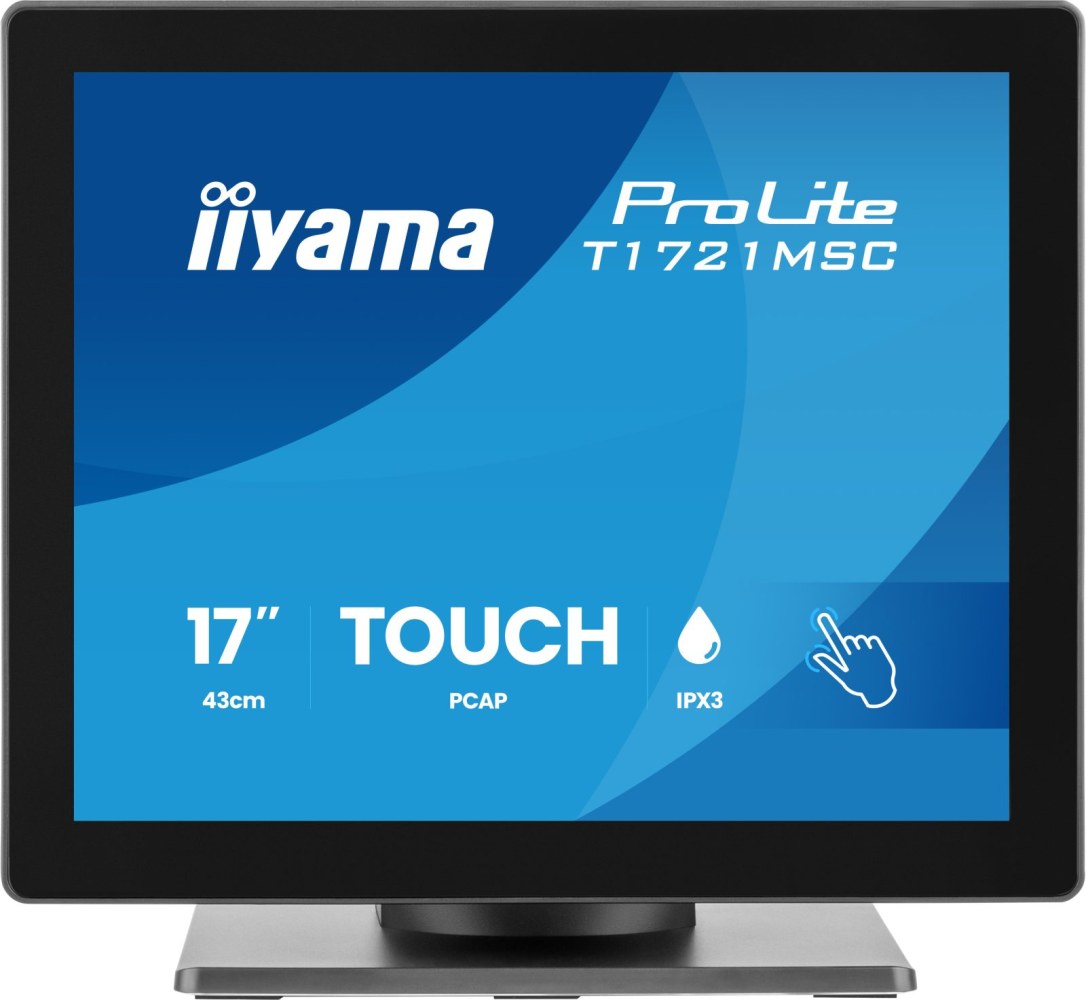

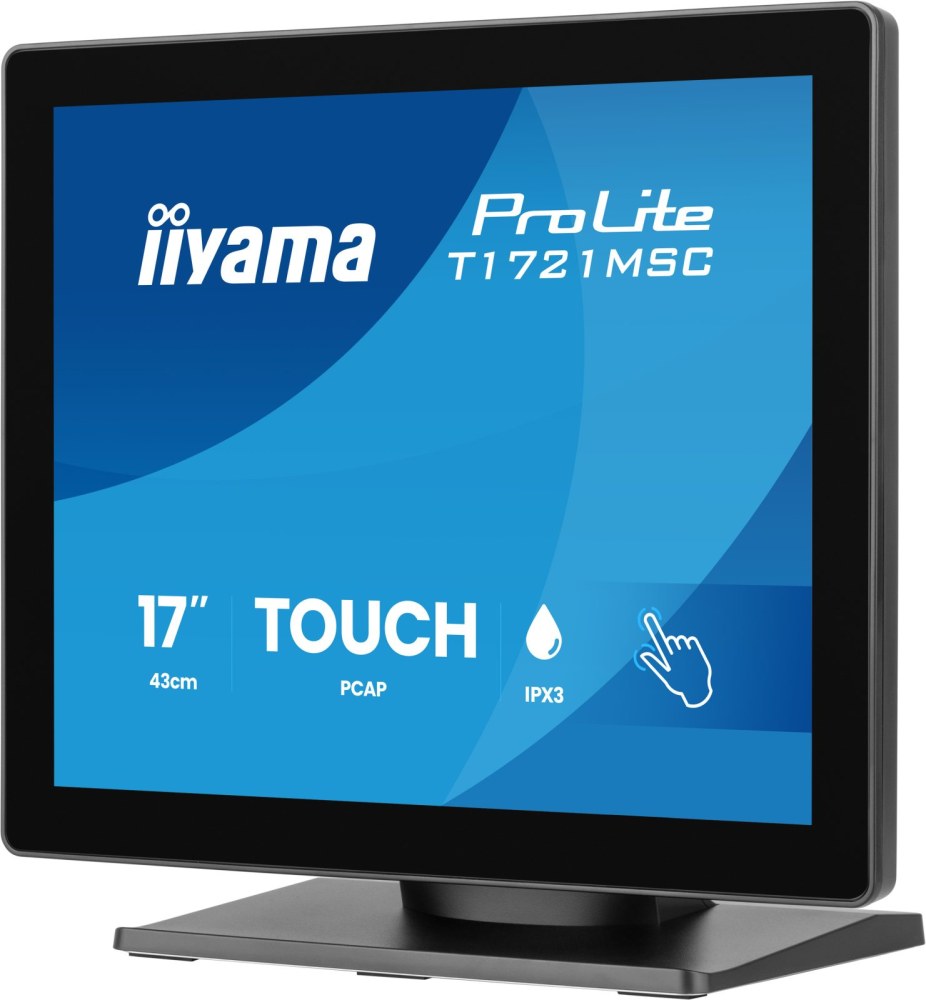

Iiyama T1721MSC-B3 43.0 cm (17") 5:4 M-Touch HDMI+VGA
|
336,25 EUR |
|
|
( 400,14 EUR incl. VAT ) ≈ £282.45 | ≈ $377.27 plus delivery charges: 83,00 € |
|
| Delivery time from supplier's stock (ca.) 5 workdaysinfo_outline | |
| In Stock: >10 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 207560 |
| Mfg Part No: | T1721MSC-B3 |
| UPC/EAN: | 4948570127092 |
| Weight: | 6.06 kg |
| Type: | MNTR |
Further TouchScreen LCD from IiyamaFurther products in category TouchScreen LCD
All products of Iiyama
Product information for Iiyama T1721MSC-B3:
• Sichtbare Bildschirmdiagonale: 43,2 cm ( 17 inch )/43,0cm • Auflösung: 1280x1024 @ 75Hz • Helligkeit: 230cd/m² • Kontrast: 1000:1 • Touch: Projectiv Resistiv • Touch-Oberfläche: USB • Reaktionszeit: 5ms • Blickwinkel: 170°/160° • Panel: TN • Anschlüsse: 1x VGA, 1x HDMI • USB-Hub: 1x USB-B • Ergonomie: +70°/-10° Neigen • VESA: 100x100 • Audio: 2x2W • Maße: 392,5x364x198mm • Farbe: Schwarz
| Design | |
| Market positioning | Business |
| Product colour | Black |
| Front bezel colour | Black |
| Glass thickness | 1.5 mm |
| Display | |
| Display diagonal | 43.2 cm (17") |
| Display resolution | 1280 x 1024 pixels |
| HD type | SXGA |
| Native aspect ratio | 5:4 |
| Panel type | TN |
| Touchscreen type | Tabletop |
| Touchscreen technology | Projected capacitive system |
| Number of simultaneous touchpoints | 10 |
| Display brightness (typical) | 250 cd/m² |
| Display brightness | 230 cd/m² |
| Response time | 5 ms |
| Screen shape | Flat |
| Contrast ratio (typical) | 1000:1 |
| Maximum refresh rate | 75 Hz |
| Viewing angle, horizontal | 170° |
| Viewing angle, vertical | 160° |
| Display number of colours | 16.7 million colours |
| Pixel pitch | 0.264 x 0.264 mm |
| Horizontal scan range | 31 - 80 kHz |
| Viewable size, horizontal | 33.8 cm |
| Viewable size, vertical | 27.1 cm |
| Display diagonal (metric) | 43 cm |
| Surface hardness | 7H |
| Touchscreen | |
| Ergonomics | |
| Panel mounting interface | 100 x 100 mm |
| Cable lock slot type | Kensington |

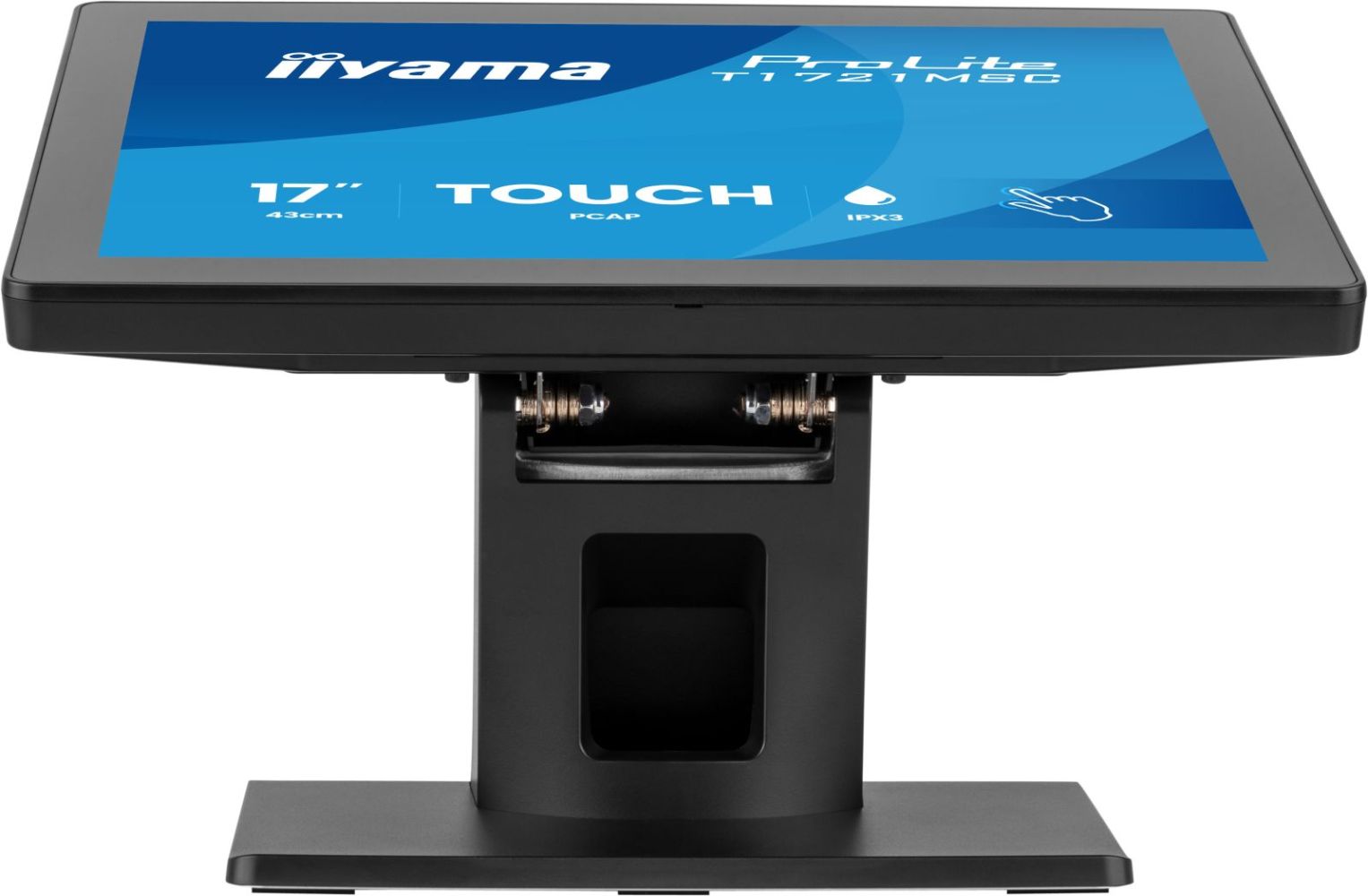

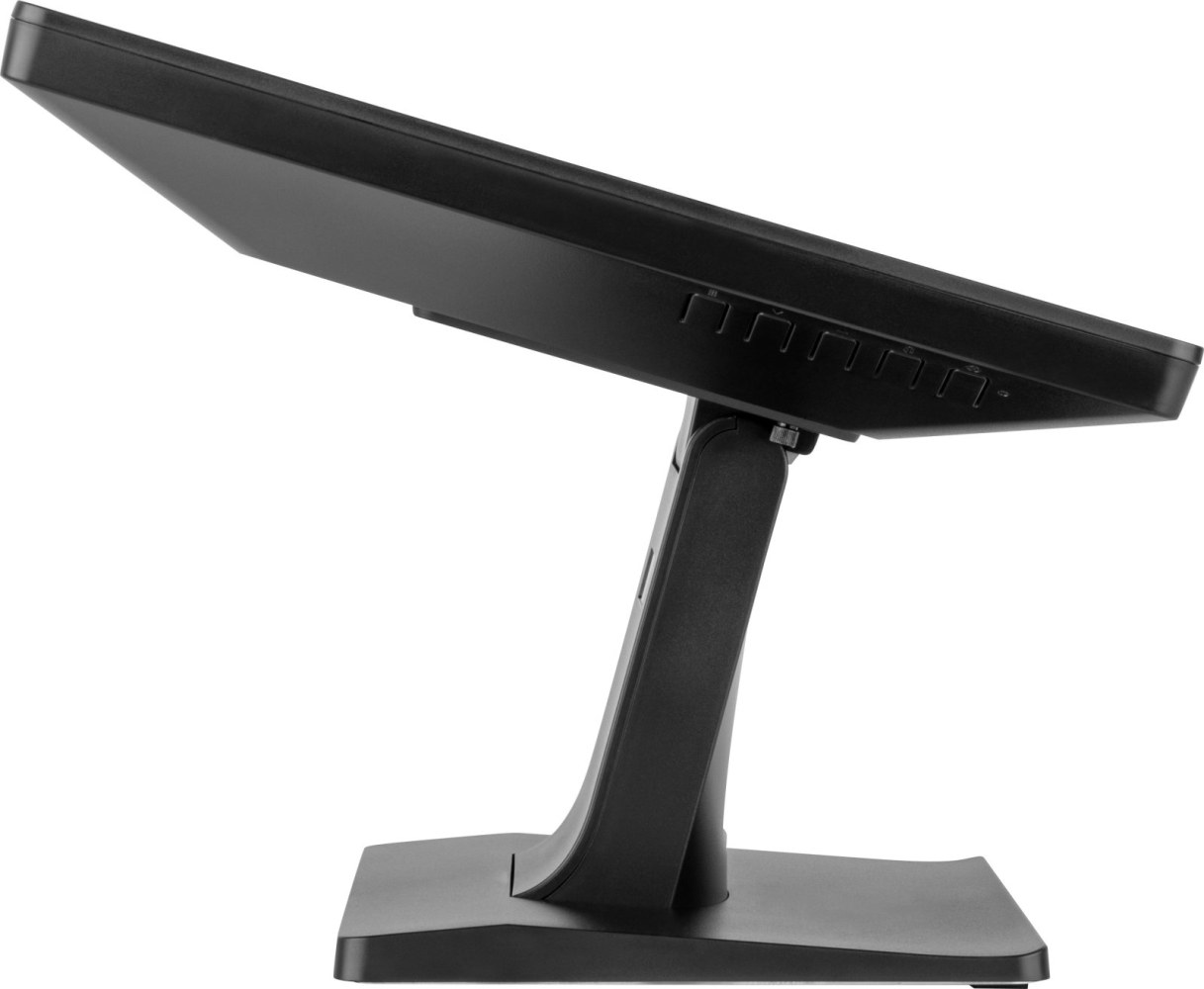

| Tilt angle range | -10 - 70° |
| On Screen Display (OSD) languages | Traditional Chinese, German, English, Spanish, French, Italian, Japanese |
| Number of OSD languages | 7 |
| VESA mounting | |
| Cable management | |
| Cable lock slot | |
| Height adjustment | |
| Tilt adjustment | |
| On Screen Display (OSD) | |
| Plug and Play | |
| Multimedia | |
| Number of speakers | 2 |
| RMS rated power | 4 W |
| Built-in speaker(s) | |
| Built-in camera | |
| Other features | |
| International Protection (IP) code | IPX3 |
| Compatible operating systems | All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section. |
| User controls | picture (backlight, brightness, contrast, sharpness) display (auto adjustment, H position, V position, pixel clock, phase) colour (colour temp, picture mode) input, audio (volume, mute, audio source), other (reset, OSD time, OSD H position, OSD V position, language) information |
| Brightness | 230 cd/m² |
| Packaging content | AC adapter, mylar sheet (for VESA mount) |
| Active display area (W x H) | 338 x 270.5 mm |
| Touch method | stylus, finger, glove (latex) |
| USB ports quantity | 1 |
| Weight | 4.4 kg |
| Height | 364 mm |
| Width | 392.5 mm |
| Depth | 198 mm |
| Control panel | Menu, Up/Left/ Auto adjustment button, Down/Right button, Return/Exit button, Power |
| Compliance certificates | CE, cULus, REACH, RoHS, VCCI, WEEE |
| Mean time between failures (MTBF) | 50000 h |
| AC adapter included | |
| Packaging content | |
| Cables included | AC, USB, HDMI |
| HDMI cable length | 1.8 m |
| Power cable length | 1.8 m |
| Quick start guide | |
| Packaging data | |
| Package width | 537 mm |
| Package depth | 172 mm |
| Package height | 500 mm |
| Package weight | 5.8 kg |
| USB cable length | 1.8 m |
| Performance | |
| NVIDIA G-SYNC | |
| AMD FreeSync | |
| Low Blue Light technology | |

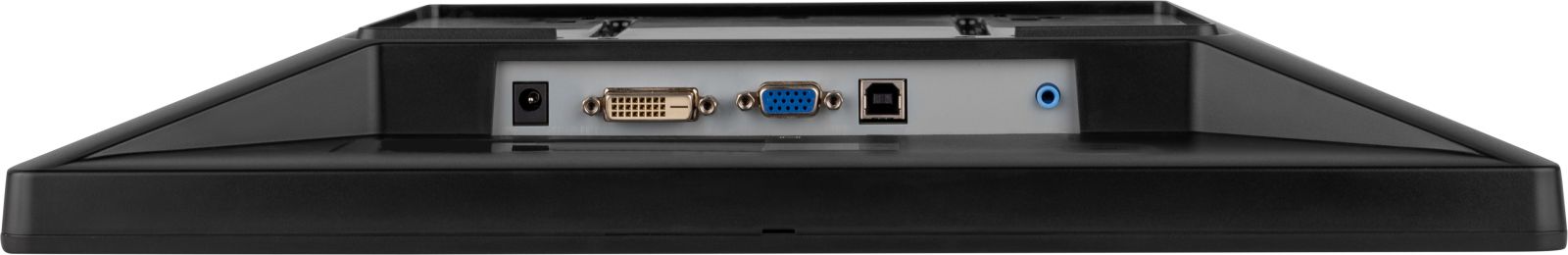

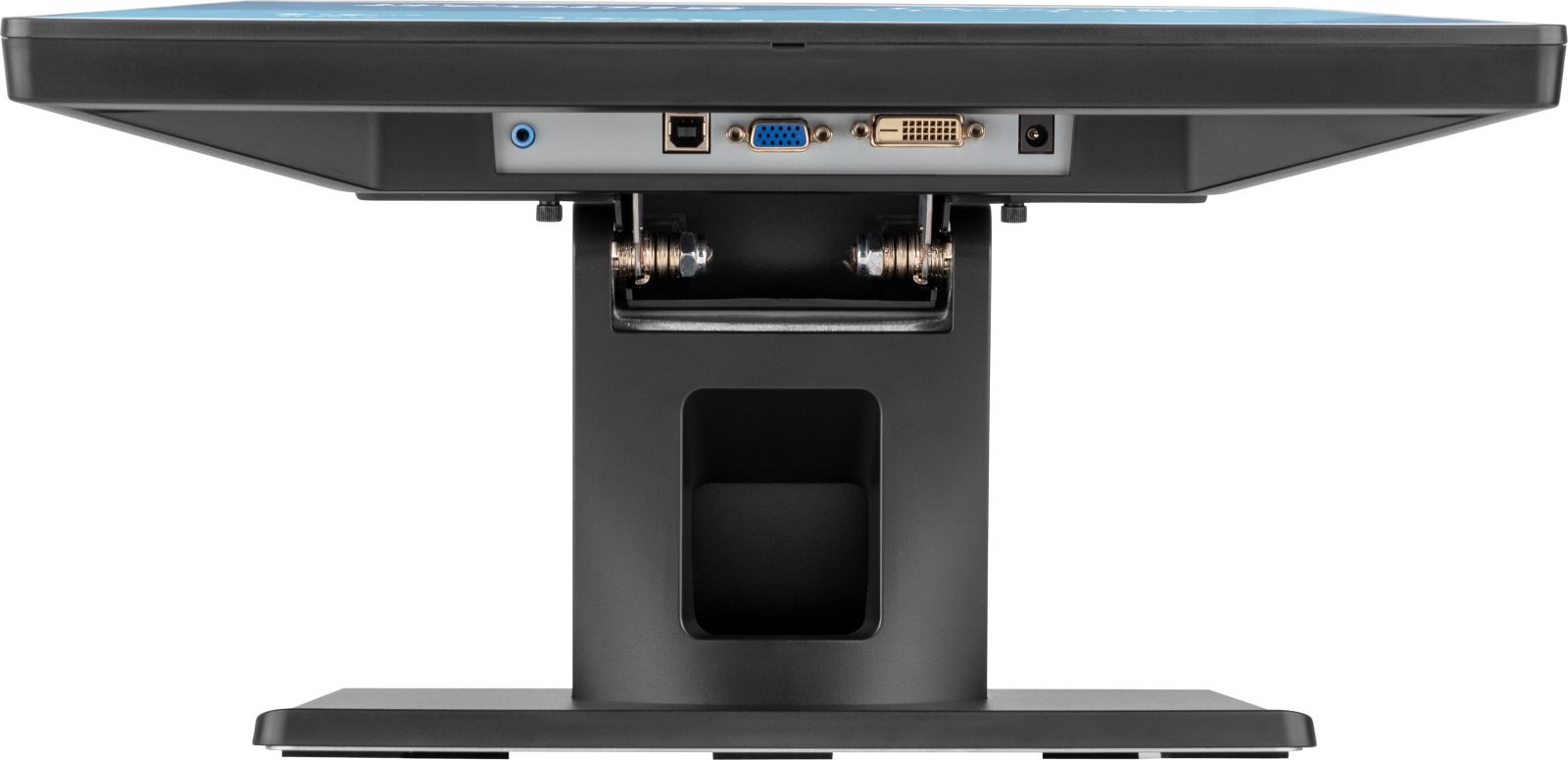

| Ports & interfaces | |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| Built-in USB hub | |
| USB Touch port | |
| HDMI | |
| Audio input | |
| Headphone out | |
| HDCP | |
| Power | |
| Energy efficiency class (SDR) | E |
| Energy efficiency class (HDR) | Not available |
| Energy consumption (SDR) per 1000 hours | 13 kWh |
| Power consumption (typical) | 20 W |
| Power consumption (standby) | 0.9 W |
| Power consumption (off) | 0.3 W |
| AC adapter output voltage | 12 V |
| Power supply type | External |
| Energy efficiency scale | A to G |
| Sustainability | |
| Sustainability certificates | ErP |
| Technical details | |
| Native refresh rate | 60 Hz |
| Weight & dimensions | |
| Width (with stand) | 392.5 mm |
| Depth (with stand) | 198 mm |
| Height (with stand) | 364 mm |
| Weight (with stand) | 4.4 kg |
