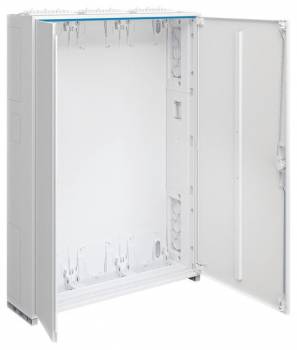

Hager ZB33S
meter cabinet IP44 SKII 1100x800x205mm
|
913,90 EUR 952,38 EUR |
|||||||||||
|
( 1.087,54 EUR incl. VAT ) ≈ £785.95 | ≈ $1,039.10 plus delivery charges: 213,00 € |
|||||||||||
| Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline | |||||||||||
| In Stock: >50 pieces | |||||||||||
| Lieske Part No.: | 645543 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | ZB33S | ||||||||||
| UPC/EAN: | 3250617620277 | ||||||||||
| Weight: | 25 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Hager ZB33S:

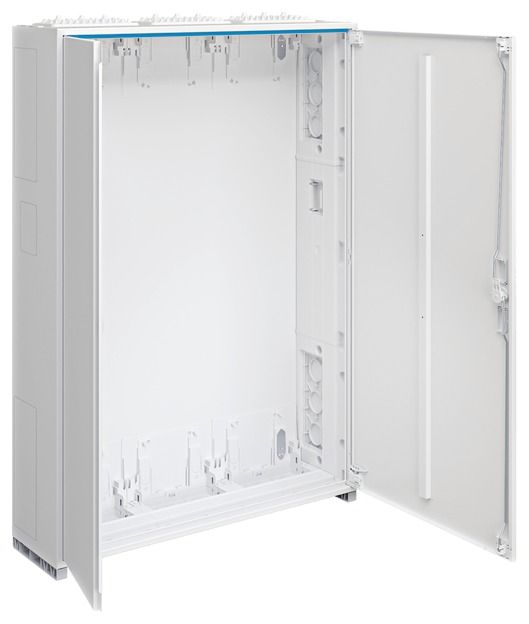

Meter cabinet, univers Z, 1100x800x205 mm, protection class II, 252 space units. Cabinet housing in accordance with DIN VDE 0603-1, dimensional standard DIN 43870 for surface-mounted, flush-mounted or partially recessed installation. For setting up a meter distribution system up to 355 A, rated voltage 230/400 V 50 Hz. Protection class IP31 IP31 IP31 in accordance with DIN VDE 0470-1), protection class II protectively insulated, protection class IP3X behind the door. Consists of a cabinet with door made of powder-coated, baked-on, sturdily profiled 1 mm thick sheet steel. Interior lining made entirely of plastic. Cable entries at the top and bottom through built-in plastic flange plates, rear pre-punching in the plastic part and side-mounted plastic flange plates in the area of the NAR (suitable as a busbar bushing), the RfZ (only with a height of 1100 mm) and the AAR.
Door flush with the front with internal, adjustable hinges, can be opened either on the right or left with an opening angle of 110°. Door lock with sash, from a width of 800 mm and for all cabinets from a height of 1250 mm with a rod lock with three-point locking. Door lock can be replaced with other locks. Cabinets can be flanged next to each other and on top of each other. Cabinet size 1 to 5 fields with 72 to 540 space units (PLE).
Note: Always use a connection set (accessory) for a cabinet-cabinet connection. In the AAR area, the plastic flange plates can be removed and a SCHUKO socket or a CEE socket can be installed as an option.
Type: ZB33S
Door flush with the front with internal, adjustable hinges, can be opened either on the right or left with an opening angle of 110°. Door lock with sash, from a width of 800 mm and for all cabinets from a height of 1250 mm with a rod lock with three-point locking. Door lock can be replaced with other locks. Cabinets can be flanged next to each other and on top of each other. Cabinet size 1 to 5 fields with 72 to 540 space units (PLE).
Note: Always use a connection set (accessory) for a cabinet-cabinet connection. In the AAR area, the plastic flange plates can be removed and a SCHUKO socket or a CEE socket can be installed as an option.
Type: ZB33S
Questions & answers
What is the delivery time of Hager ZB33S meter cabinet IP44 SKII 1100x800x205mm?
The article Hager ZB33S meter cabinet IP44 SKII 1100x800x205mm is currently in stock
According to our experience the article is ready for dispatch within 3 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Hager ZB33S to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Hager ZB33S meter cabinet IP44 SKII 1100x800x205mm always at the best possible price. We can give you a discount of 2% on Hager ZB33S meter cabinet IP44 SKII 1100x800x205mm if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 3 pieces of Hager ZB33S meter cabinet IP44 SKII 1100x800x205mm we can offer you a price of 831,65 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
