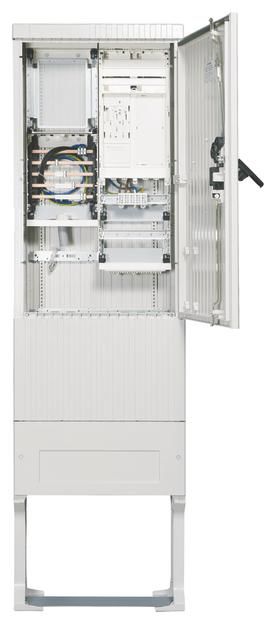

Hager ZAS205BE15A
meter connection column 205 base 1 meter slot eHZ 5-pin +APZ
|
2.418,79 EUR 2.520,64 EUR |
|||||||||||
|
( 2.878,36 EUR incl. VAT ) ≈ £2,080.16 | ≈ $2,750.16 plus delivery charges |
|||||||||||
| Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline | |||||||||||
| In Stock: >5 pieces | |||||||||||
| Lieske Part No.: | 1012012 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | ZAS205BE15A | ||||||||||
| UPC/EAN: | 3250611073338 | ||||||||||
| Weight: | 40 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Hager ZAS205BE15A:
Meter connection column 205, universZ, 1 meter position, eHZ, 5-pole, base, APZ. Meter connection column, protection class IP 44, as a base column including buried base, made of glass fiber reinforced polyester FS 833.5 according to DIN EN 14598. The meter connection column meets the requirements of DIN VDE 0603-1 (VDE 0603-1):2017-06 in conjunction with DIN VDE 0603-2-1 (VDE 0603-2-1):2017-06.
Furthermore, the system is constructed based on the applicable application guidelines of VDE-AR-N 4100:2019-04 including the associated correction VDE-AR-N 4100 Ber 1:2019. Using additional components, the base column is expanded into a ready-to-connect meter connection column of the corresponding VNB.
Profiled housing in rib design. Door with opening angle of 180 degrees when free-standing and 90 degrees when mounted in series. Right door can be detached. Locking with swivel lever and three-point bascule lock with 1 or 2 profile half cylinders. Built-in cylinder at the bottom with a same-key series. A second locking cylinder (e.g. from VNB locking system) can be installed at the top after removing the square lock. If a second profile half cylinder is not installed, the second upper opening must be fitted with a blind lock.
Ventilation takes place via labyrinth-like ventilation ducts, prevents the ingress of foreign bodies and is poke-proof. Meter connection columns are built according to the technical guideline: outdoor connection cabinets/connection of fixed switch and control cabinets and meter connection columns to the VNB low-voltage network.
The installation consists of protectively insulated meter fields DIN 43870 (functional areas) for meters. Meter locations are prepared for an IP 44 cover. The buried base and meter connection column form a unit. A floor grate is recommended. To prevent condensation, the base should be filled with base filler up to the height of the cable fastening rail.
Type: ZAS205BE15A
Furthermore, the system is constructed based on the applicable application guidelines of VDE-AR-N 4100:2019-04 including the associated correction VDE-AR-N 4100 Ber 1:2019. Using additional components, the base column is expanded into a ready-to-connect meter connection column of the corresponding VNB.
Profiled housing in rib design. Door with opening angle of 180 degrees when free-standing and 90 degrees when mounted in series. Right door can be detached. Locking with swivel lever and three-point bascule lock with 1 or 2 profile half cylinders. Built-in cylinder at the bottom with a same-key series. A second locking cylinder (e.g. from VNB locking system) can be installed at the top after removing the square lock. If a second profile half cylinder is not installed, the second upper opening must be fitted with a blind lock.
Ventilation takes place via labyrinth-like ventilation ducts, prevents the ingress of foreign bodies and is poke-proof. Meter connection columns are built according to the technical guideline: outdoor connection cabinets/connection of fixed switch and control cabinets and meter connection columns to the VNB low-voltage network.
The installation consists of protectively insulated meter fields DIN 43870 (functional areas) for meters. Meter locations are prepared for an IP 44 cover. The buried base and meter connection column form a unit. A floor grate is recommended. To prevent condensation, the base should be filled with base filler up to the height of the cable fastening rail.
Type: ZAS205BE15A
Questions & answers
What is the delivery time of Hager ZAS205BE15A meter connection column 205 base 1 meter slot eHZ 5-pin +APZ?
The article Hager ZAS205BE15A meter connection column 205 base 1 meter slot eHZ 5-pin +APZ is currently in stock
According to our experience the article is ready for dispatch within 3 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Hager ZAS205BE15A to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Hager ZAS205BE15A meter connection column 205 base 1 meter slot eHZ 5-pin +APZ always at the best possible price. We can give you a discount of 2% on Hager ZAS205BE15A meter connection column 205 base 1 meter slot eHZ 5-pin +APZ if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 2 pieces of Hager ZAS205BE15A meter connection column 205 base 1 meter slot eHZ 5-pin +APZ we can offer you a price of 2.291,80 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
