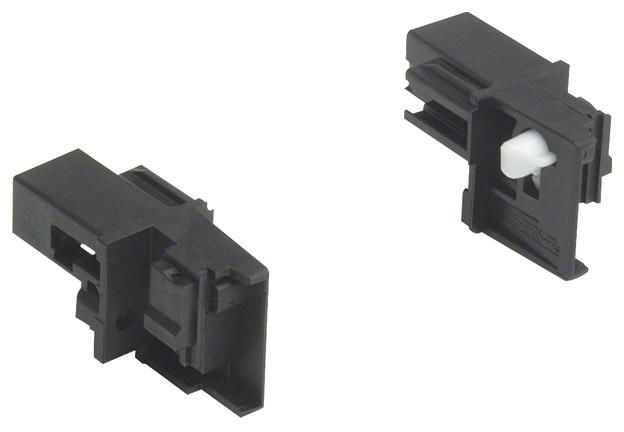

Hager tower bottoms UZ03A1, right and left
|
3,92 EUR 4,09 EUR |
|||||||||||
|
( 4,66 EUR incl. VAT ) ≈ £3.37 | ≈ $4.46 plus delivery charges: 53,00 € |
|||||||||||
| Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline | |||||||||||
| In Stock: >50 pieces | |||||||||||
| Lieske Part No.: | 911897 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | UZ03A1 | ||||||||||
| UPC/EAN: | 3250616364097 | ||||||||||
| Weight: | 0.026 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Further Wall, Stand, distribution systems from HagerFurther products in category Wall, Stand, distribution systems
All products of Hager
Product information for Hager UZ03A1:
Hood tower lower part, universZ, with latch. Meter cabinet solution Cabinet housing according to DIN VDE 0603/1, dimension standard DIN 43 870 for surface-mounted, flush-mounted or partially recessed installation. Consists of a cabinet with door made of powder-coated, baked-in, stably profiled 1 mm thick sheet steel. Interior lining made entirely of plastic. Cable entries at the top and bottom through built-in plastic flange plates. Pre-stamping on the back of the plastic part. Busbar bushings as flanges on both sides that can be opened without tools in the lower area as a way of connecting busbars between different cabinets or in conjunction with a cable junction box and connection set. In addition to the bushing in the NAR, there are also openings in the area of the AAR (for heights 1100 and 1400 mm) and RfZ (for heights 1100 mm). Door flush with the front with internal, adjustable hinges, can be hinged on the right or left with an opening angle of 110°. Door lock with cam lock. Door lock can be replaced with other locks. Cabinets can be flanged next to each other and one above the other. Cabinet size 1 to 5 fields with 72 to 540 space units (PLE). Note: The main line must be inserted from below or from the side into the lower connection compartment of the meter cabinet and connected there in accordance with VDE-AR-N 4100:2019-04. Height: __ mm (1100mm or 1400mm) Width: __ mm Depth: 205 / 160 mm, RAL color: 9010 Protection type 44, protection class II Nominal current of the busbar system 250 A Design in accordance with VDE-AR-N 4100:2019-04 Meter system for __ meter space(s). According to the technical connection conditions (TAB) of the VNB __ for: __ Electronic household meters (eHZ) or __ meters with 3-point fastening (3HZ). __ for supply systems with normal household consumption max. 63 A (10mm²) according to DIN 18015-1 (__ apartments, __ general, __ reserve, __ heat pump) __ for continuous current applications max. 32 A (10 mm²) according to VDE-AR-N 4100:2019-04 (e.g. PV up to 22 KW) __ for continuous current applications max. 44 A (16 mm²) according to VDE-AR-N 4100:2019-04 (e.g. PV up to 30 KW) __ for meter locations with more than 63 A in intermittent operation or 44 A in continuous operation (transformer measurement) Nominal current _ A, nominal power _ kW __ Tariff ripple control receiver as three-point version alternatively __ Tariff ripple control receiver as top-hat rail version __ Distribution panel (__ PLE), with/without busbars for feeding in __ Distribution panel (__ PLE) with APZ room according to VDE-AR-N 4100:2019-04, with/without busbars for feed-in __ Communication panel, 1- or 2-panel __ Communication panel with APZ room according to VDE-AR-N 4100:2019-04, with/without busbars for feed-in __ SLS switch Hager HTS3xxE in __ A.. Voltage tap for power supply additional devices according to VDE-AR-N 4100:2019-04: __ before the SLS with fuse box pluggable 25 kA __ before the SLS with LS switch 10 A / 25 kA __ behind the SLS with fuse box pluggable 25 kA. Surge protection with combination arrester type 1/2/3 for busbar mounting in the UAR.To comply with the requirements of DIN VDE 0100-443 and -534: ___for TNS/TT network, without external lightning protection, back-up fuse in the HAK - 160 A ___for TNC network, without external lightning protection, back-up fuse in the HAK - 160 A ___for TNS/TT network, with external lightning protection, back-up fuse in the HAK - 160 A ___for TNC network, with external lightning protection, back-up fuse in the HAK - 160 A ___for TNS/TT network, with external lightning protection, back-up fuse in the HAK - 315 A ___for TNC network, with external lightning protection, back-up fuse in the HAK - 315 A Fuse for cellar, washing machine, dryer (if TAB / DIN compliant) per WE (max. 6 PLE) __ pieces of FI/LS switch 10 kA, 16 A, 30 mA (ADA516D). General distribution panel equipped with: __ pcs. LS switch 6 kA, 16 A (MBS116) __ pcs. FI/LS switch 6 kA, 16 A, 30 mA (ADS916D) __ pcs. RCD type 40 A 4-pole, 30 mA (CDS440D). Consisting of: __ pcs. ZB__S, meter cabinet __ pcs. ZK__ Complete panel for __ meters __ selected make/type: HAGER/univers Z or equivalent, supply, install and connect ready for operation.
Type: UZ03A1
Type: UZ03A1
Questions & answers
What is the delivery time of Hager tower bottoms UZ03A1, right and left?
The article Hager tower bottoms UZ03A1, right and left is currently in stock
According to our experience the article is ready for dispatch within 3 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Hager UZ03A1 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Hager tower bottoms UZ03A1, right and left always at the best possible price. We can give you a discount of 2% on Hager tower bottoms UZ03A1, right and left if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 50 pieces of Hager tower bottoms UZ03A1, right and left we can offer you a price of 3,74 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
