Hager ZB52S

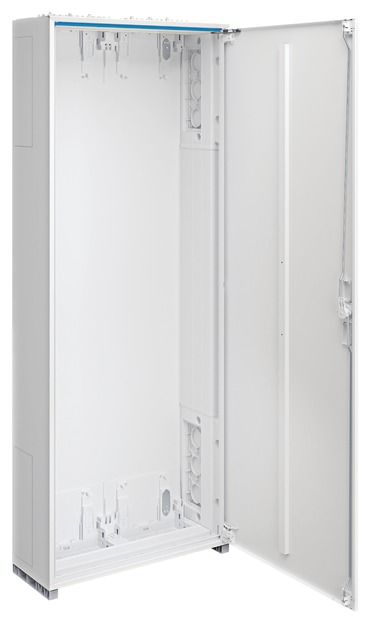

meter cabinet IP44 SKII 1400x550x205mm

Meter cabinet, univers Z, 1400x550x205 mm, protection class II, 216 space units. Cabinet housing according to DIN VDE 0603-1, dimensional standard DIN 43870 for surface-mounted, flush-mounted or partially recessed installation. For setting up a meter distribution system up to 355 A, rated voltage 230/400 V 50 Hz. Protection class IP31 IP31 IP31 according to DIN VDE 0470-1), protection class II protectively insulated, protection class IP3X behind the door. Consists of a cabinet with door made of powder-coated, baked-on, sturdily profiled 1 mm thick sheet steel. Interior lining made entirely of plastic. Cable entries at the top and bottom through built-in plastic flange plates, rear pre-punching in the plastic part and side-mounted plastic flange plates in the area of the NAR (suitable as a busbar bushing), the RfZ (only with a height of 1100 mm) and the AAR.
Door flush with the front with internal, adjustable hinges, can be opened either on the right or left with an opening angle of 110°. Door lock with sash, from a width of 800 mm and for all cabinets from a height of 1250 mm with a rod lock with three-point locking. Door lock can be replaced with other locks. Cabinets can be flanged next to each other and on top of each other. Cabinet size 1 to 5 fields with 72 to 540 space units (PLE).
Note: Always use a connection set (accessory) for a cabinet-cabinet connection. In the AAR area, the plastic flange plates can be removed and a SCHUKO socket or a CEE socket can be installed as an option.
