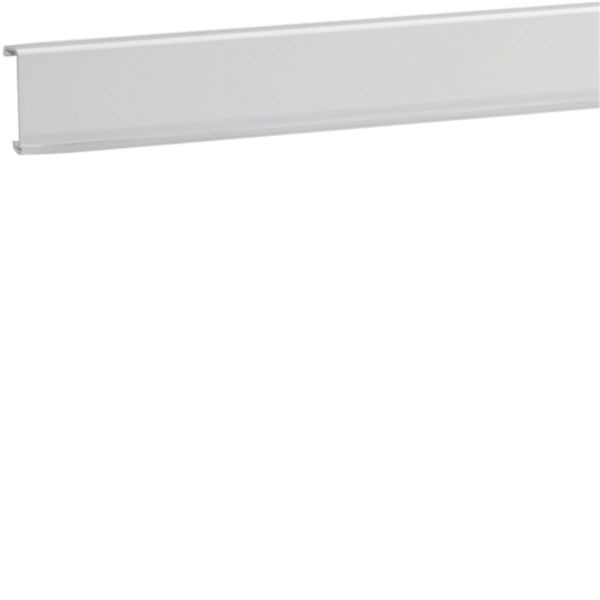

Hager SL20055219016 plinth strip channel top part soft lip PVC for SL 20x55 mm
|
11,59 EUR |
|||||||||||
|
( 13,79 EUR incl. VAT ) ≈ £9.69 | ≈ $12.81 plus delivery charges: 55,00 € |
|||||||||||
| Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline | |||||||||||
| Sales unit: 2 meters | |||||||||||
| In Stock: >50 meters | |||||||||||
| Datasheet: | file_download Download | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Lieske Part No.: | 1595807 | ||||||||||
| Mfg Part No: | SL20055219016 | ||||||||||
| UPC/EAN: | 4012740017510 | ||||||||||
| Weight: | 0.212 kg | ||||||||||
| Type: | SL20055219016 | ||||||||||
|
Graduated prices net
|
|||||||||||
Further Cable duct accessories complete from HagerFurther products in category Cable duct accessories complete
All products of Hager
Product information for Hager SL20055219016:
The SL20055219016 top cover for the baseboard trunking system from Hager is a PVC component designed for use with the SL 20x55 mm baseboard trunking system. It serves as a covering profile that is clipped onto the lower part of the trunking system to enable a clean and secure installation of electrical devices. The top cover is finished in traffic white (RAL 9016) and complies with DIN EN 50085-1, the standard defining requirements for baseboard trunking systems. It is specifically designed for indoor use and provides an aesthetic cover for cable routing along walls and floor surfaces.
Applications
This top cover is used in electrical installations to cover the top of a baseboard trunking channel. It is suitable for use in residential and commercial spaces where discreet and neat cable routing is required. The dimensions of 2000 mm length, 55 mm height, and 20 mm depth are designed to fit precisely with the standard SL 20x55 mm trunking channel. It is used in conjunction with the lower part of the trunking system, where the top cover is secured via snap-fit connections.
Functions and Features in Detail
The top cover features two soft lips that effectively conceal wall and floor irregularities. These sealing lips are oriented towards the wall and floor to ensure a tight and visually appealing connection. The surface is protected by a protective film that prevents dirt and scratches during installation. The material is polyvinyl chloride (PVC), chosen for its mechanical stability and dimensional stability. The product is not halogen-free.
Technical Explanation
The protection rating IP40 means the top cover is protected against solid foreign objects (minimum 1 mm) and splashing water, but is not suitable for outdoor use or in damp environments. The impact resistance rating IK07 indicates the component is resistant to mechanical impacts such as light bumps or knocks, which is sufficient for indoor applications. The operating temperature range is between 5 °C and 60 °C, allowing use under normal indoor conditions. The product is REACh-SVHC free and RoHS-compliant, confirming the use of non-hazardous materials and compliance with EU directives for electrical equipment.
Compatibility and Accessories
The top cover is specifically developed for the SL 20x55 mm baseboard trunking system and fits precisely with the corresponding lower parts. Compatible accessories include, among others, the baseboard trunking lower part SL200551, device carriers SL200559009016, end caps SL2005579016, end pieces SL2005569016, adjustable internal corners SL2005549016, external corners SL2005539016, and device carrier skirts SL20055A9016. These components allow for flexible and custom cable routing solutions.
Installation and Mounting
Installation is carried out by snapping the top cover onto the already installed lower part of the trunking system. The snap-fit connections ensure secure fastening. The soft lips ensure that irregularities between wall and floor are visually concealed. The protective film is removed after installation. No additional fastening or tools are required, as the top cover is mechanically clipped into the lower part.
Operational Advantages
The top cover provides a clean and professional cover for cable routing. The soft lips ensure a tight and visually appealing connection that conceals irregularities. The use of PVC ensures high mechanical stability and dimensional stability. Compliance with REACh and RoHS confirms the use of environmentally compatible materials. The IP40 protection rating and IK07 impact resistance are sufficient for indoor use and ensure safe and long-lasting operation.
The item price shown refers to 2 meters Hager SL20055219016
Applications
This top cover is used in electrical installations to cover the top of a baseboard trunking channel. It is suitable for use in residential and commercial spaces where discreet and neat cable routing is required. The dimensions of 2000 mm length, 55 mm height, and 20 mm depth are designed to fit precisely with the standard SL 20x55 mm trunking channel. It is used in conjunction with the lower part of the trunking system, where the top cover is secured via snap-fit connections.
Functions and Features in Detail
The top cover features two soft lips that effectively conceal wall and floor irregularities. These sealing lips are oriented towards the wall and floor to ensure a tight and visually appealing connection. The surface is protected by a protective film that prevents dirt and scratches during installation. The material is polyvinyl chloride (PVC), chosen for its mechanical stability and dimensional stability. The product is not halogen-free.
Technical Explanation
The protection rating IP40 means the top cover is protected against solid foreign objects (minimum 1 mm) and splashing water, but is not suitable for outdoor use or in damp environments. The impact resistance rating IK07 indicates the component is resistant to mechanical impacts such as light bumps or knocks, which is sufficient for indoor applications. The operating temperature range is between 5 °C and 60 °C, allowing use under normal indoor conditions. The product is REACh-SVHC free and RoHS-compliant, confirming the use of non-hazardous materials and compliance with EU directives for electrical equipment.
Compatibility and Accessories
The top cover is specifically developed for the SL 20x55 mm baseboard trunking system and fits precisely with the corresponding lower parts. Compatible accessories include, among others, the baseboard trunking lower part SL200551, device carriers SL200559009016, end caps SL2005579016, end pieces SL2005569016, adjustable internal corners SL2005549016, external corners SL2005539016, and device carrier skirts SL20055A9016. These components allow for flexible and custom cable routing solutions.
Installation and Mounting
Installation is carried out by snapping the top cover onto the already installed lower part of the trunking system. The snap-fit connections ensure secure fastening. The soft lips ensure that irregularities between wall and floor are visually concealed. The protective film is removed after installation. No additional fastening or tools are required, as the top cover is mechanically clipped into the lower part.
Operational Advantages
The top cover provides a clean and professional cover for cable routing. The soft lips ensure a tight and visually appealing connection that conceals irregularities. The use of PVC ensures high mechanical stability and dimensional stability. Compliance with REACh and RoHS confirms the use of environmentally compatible materials. The IP40 protection rating and IK07 impact resistance are sufficient for indoor use and ensure safe and long-lasting operation.
The item price shown refers to 2 meters Hager SL20055219016
| General | |
| Height | 55 mm |
| Depth | 20 mm |
| Length | 2000 mm |
| Sealing lip cover | Wall/floor |
| Material | Plastic |
| Colour | White |
| RAL-number | 9016 |
| Decoration | None |
| Degree of protection (IP) | IP40 |
| Impact strength | IK07 |
| Material quality | Polyvinyl chloride (PVC) |
| With carpet border | |
| With protection film | |
| Halogen free | |
Please note...
This article has over-size and needs to be seperately taken care of. This is why we want to inform you, that the calculation of the delivery charges in the shopping cart will disregard this aspect. Though, there will be corresponding surcharges after you send us your order.
Questions & answers
What is the delivery time of Hager SL20055219016 plinth strip channel top part soft lip PVC for SL 20x55 mm?
The article Hager SL20055219016 plinth strip channel top part soft lip PVC for SL 20x55 mm is currently in stock
According to our experience the article is ready for dispatch within 3 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Hager SL20055219016 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Hager SL20055219016 plinth strip channel top part soft lip PVC for SL 20x55 mm always at the best possible price. We can give you a discount of 2% on Hager SL20055219016 plinth strip channel top part soft lip PVC for SL 20x55 mm if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 15 meters of Hager SL20055219016 plinth strip channel top part soft lip PVC for SL 20x55 mm we can offer you a price of 11,24 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
How many units does the article contain?
Hager SL20055219016 plinth strip channel top part soft lip PVC for SL 20x55 mm is offered by us in a sales unit of 2 meters If you need a larger quantity, you can contact us at any time. We will make a special offer for you
