Hager SL200559009016 device carrier standard 2-way plug-in terminals for SL20x55 mm content_copy

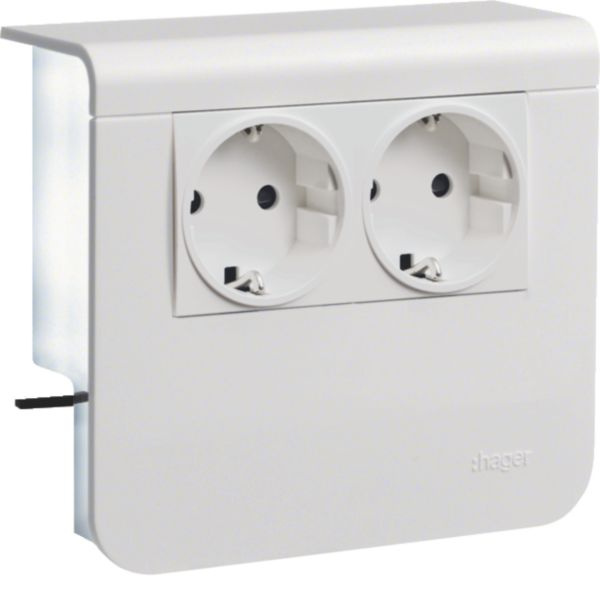

The Hager device carrier SL200559009016 is a pre-wired installation device for use in baseboard channel systems with dimensions of 20 mm depth and 55 mm height. It is specifically designed for horizontal mounting and serves for the integrated installation of two Schuko sockets in standard format. The device is delivered pre-fitted, thereby reducing installation time in the electrical installation system. The sockets are equipped with push-in terminals, ensuring a secure and reliable connection. The rated current is 16 A at a nominal voltage of 230 V, with an allowable cable cross-section of 2.50 mm². The connection method is via screw connection and snap fixation, enabling quick and tool-free installation.

Cable duct accessories are an integrated part of installation technology, enabling structured routing of cables and placement of devices within a system. The device carrier is designed for use in a baseboard channel system standardized according to DIN EN 50085-1. Installation is achieved via snap fixation to the lower side of the channel, with a locking screw ensuring secure fastening. The overall dimensions of the device are 130 mm width, 124 mm height, and 48 mm depth, with the channel depth being 20 mm and height 55 mm.

Plastic as the material provides sufficient mechanical stability and is halogen-free, meeting fire safety requirements. The color is traffic white (RAL 9016), enabling visual harmonization with other components in the room. The surface is plain, without decoration, facilitating integration into standardized installation systems. The operating temperature range is between 5 °C and 60 °C, making the device suitable for indoor environments without extreme temperature fluctuations.

Protection class IP20 ensures protection against contact with fingers and against solid foreign objects larger than 12.5 mm, but not against water or dust. The impact resistance IK07 protects the device against mechanical stress during normal operation, such as minor impacts or vibrations. The devices are intended for indoor use, with horizontal mounting.

Compatibility and accessories include use with the baseboard channel SL20x55 mm. As suitable accessory, the device carrier skirt SL20055A9016 is offered, serving as a cover for the lower channel half beneath the device carrier and mounted via snap fixation.

Installation and mounting are tool-free, achieved by snap locking to the lower channel half. The prerequisite is an already installed baseboard channel in the 20x55 mm format. The sockets are pre-equipped with push-in terminals, allowing direct electrical connection at the device. The connection terminals are rated for a cross-section of 2.50 mm², sufficient for most standard installations.

Operational advantages include pre-fitted components, reducing installation time and minimizing error sources. The use of push-in terminals enables quick and secure cable connections. The halogen-free plastic alloy contributes to fire safety. The traffic white color (RAL 9016) ensures visual uniformity with other components in the installation system. The IK07 impact resistance provides adequate protection against normal mechanical loads in indoor environments.

The device is RoHS-compliant and REACh-SVHC free, ensuring environmental compatibility and compliance with European chemical regulations. The application is exclusively for indoor use, as protection class IP20 does not provide water tightness. Mounting is horizontal, and the devices are stackable to realize longer installations.

General
Height baseboard duct	55 mm
Depth plinth skirting duct	20 mm
Number of device units	2
Equipped with	Socket outlet with safety contact
Mounting method installation unit	Already assembled
Material	Plastic
Colour	White
RAL-number	9016
Decoration	None
Degree of protection (IP)	IP20
Impact strength	IK07
Mounting direction	Horizontal
Working temperature	60 °C
Halogen free
Antibacterial treatment

---
