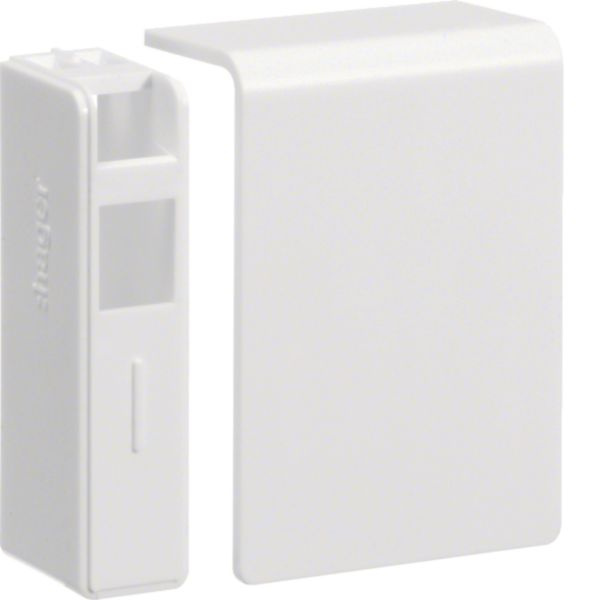

Hager SL2005569016 end piece with cut edge covering for SL 20x55 mm traffic white content_copy

The product SL2005569016 from Hager is an end cap for cable ducts of the SL 20x55 mm series, designed as a cut-edge covering component in traffic white colour. It is used for finishing the ends of cable ducts, where the cut edges are visually concealed to ensure a clean and professional appearance. The component is made of PC-ABS plastic and corresponds to RAL number 9016, which matches the traffic white colour. It is halogen-free and thus suitable for applications where the avoidance of flammable or toxic fumes in case of fire is required.

Applications
This end cap is specifically designed for use with cable ducts of the SL series in the 20x55 mm format. It is used in electrical installation systems, particularly in building electrotechnics, where proper and aesthetic finishing of cable ducts is required. The component can be used both indoors and outdoors, with the IP40 protection rating providing protection against finger contact and splashing water directed towards the openings. Installation is possible on both sides of the duct – left or right – and is carried out via a click system that enables quick and secure fastening.

Functions and Equipment in Detail
The component is designed as a two-part end cap that fits onto the lower duct section. The cut-edge covering function ensures that the ends of the cable ducts appear rounded and neatly covered after cutting. It is not equipped with a carpet strip, making it specifically intended for standard applications without additional floor covering. The surface is untreated, allowing for processing and installation without additional pre-treatment.

Technology Explained Simply
The PC-ABS (polycarbonate-acrylonitrile butadiene styrene) material blend offers a good combination of mechanical strength, heat resistance, and dimensional stability. The impact resistance rating IK07 means the component is protected against mechanical impacts such as light shocks or vibrations, which is sufficient for use in residential and office buildings. The IP40 protection rating safeguards against finger contact and splashing water, but does not protect against dust ingress or continuous water exposure. The halogen-free design reduces fire hazard and the formation of toxic gases in case of fire, which is particularly beneficial in public or enclosed spaces.

Compatibility and Accessories
It is intended as a replacement part or addition for existing installations and can be combined with other components of the SL series to ensure a consistent design. Use is limited to the specified duct profiles; compatibility with other sizing systems is not provided.

Installation and Mounting
Installation is carried out by simply snapping the end cap onto the lower duct section. The click-lock mechanism ensures secure fastening without additional fastening materials. The left/right mounting design allows for flexible adaptation to the specific installation situation. No additional tools or mounting aids are required. Processing is done directly on the finished cut end of the duct, with the cut-edge covering function ensuring the visual quality of the end.

Operational Advantages
The end cap offers quick and easy installation without requiring additional tools. The halogen-free design increases safety in case of fire, while the IK07 impact resistance provides sufficient mechanical stability for indoor use. The IP40 protection rating offers adequate protection against contact and splashing water, which is sufficient for many indoor applications. The use of PC-ABS ensures long service life and resistance to environmental influences such as temperature fluctuations and mechanical stress. The traffic white colour (RAL 9016) enables visual harmonization with other components of the SL series and fits into most interior designs.

General
Height	55 mm
Depth	20 mm
Model	Left/right
Sealing lip cover	None
Material	Plastic
Colour	White
RAL-number	9016
Decoration	None
Degree of protection (IP)	IP40
Impact strength	IK07
Halogen free
With carpet border
Pre-stamping

---
