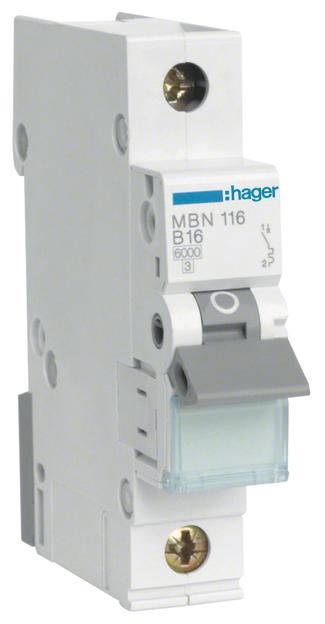

Hager mounting machine 1 pole MBN116 B16, 431009
|
10,73 EUR 11,19 EUR |
|||||||||||
|
( 12,77 EUR incl. VAT ) ≈ £9.08 | ≈ $12.00 plus delivery charges: 53,00 € |
|||||||||||
| Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline | |||||||||||
| In Stock: >1000 pieces | |||||||||||
| Lieske Part No.: | 686180 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | MBN116 | ||||||||||
| UPC/EAN: | 3250614310096 | ||||||||||
| Weight: | 0.0898 kg | ||||||||||
| Type: | MBN116 | ||||||||||
|
Graduated prices net
|
|||||||||||
Further Circuit breaker from HagerFurther products in category Circuit breaker
All products of Hager
Product information for Hager MBN116:
Circuit breaker
Switch rated capacity 6 kA characteristic B
Switch rated capacity 6 kA characteristic B
- Standard: DIN VDE 0641 Part 11/08/92 - Limiting class 3
- With installation-friendly bi-connect terminal
- suitable for retro-fitting of additional equipment (busbars, connectors, end caps) - Electric shock protection to DIN VDE 0106 part 100
- Rated voltage 230/400 V ~
- Single phase extraction from the composite rail possible
Characteristic B, DIN VDE 0641, Part 08/11/92
Version: 1 pole
Current: 16 A
Type: MBN116
Quantity: 1 unit.
| General | |
| Release characteristic | B |
| Number of poles (total) | 1 |
| Number of protected poles | 1 |
| Rated current | 16 A |
| Rated voltage | 400 |
| Rated insulation voltage Ui | 500 V |
| Rated impulse withstand voltage Uimp | 4 kV |
| Rated short-circuit breaking capacity Icn EN 60898 at 230 V | 6 kA |
| Rated short-circuit breaking capacity Icu IEC 60947-2 at 230 V | 6 kA |
| Voltage type | AC |
| Frequency | 60 |
| Current limiting class | 3 |
| Over voltage category | 3 |
| Pollution degree | 2 |
| Width in number of modular spacings | 1 |
| Built-in depth | 70 mm |
| Degree of protection (IP) | IP20 |
| Ambient temperature during operating | 70 |
| Connectable conductor cross section multi-wired | 25 |
| Connectable conductor cross section solid-core | 35 |
| Power loss | 2.44 W |
| Concurrently switching N-neutral | |
| Additional equipment possible | |
| Explosion-proof | |
| Flush-mounted installation | |
Questions & answers
What is the delivery time of Hager mounting machine 1 pole MBN116 B16, 431009?
The article Hager mounting machine 1 pole MBN116 B16, 431009 is currently in stock
According to our experience the article is ready for dispatch within 3 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Hager MBN116 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Hager mounting machine 1 pole MBN116 B16, 431009 always at the best possible price. We can give you a discount of 2% on Hager mounting machine 1 pole MBN116 B16, 431009 if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 15 pieces of Hager mounting machine 1 pole MBN116 B16, 431009 we can offer you a price of 9,20 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
