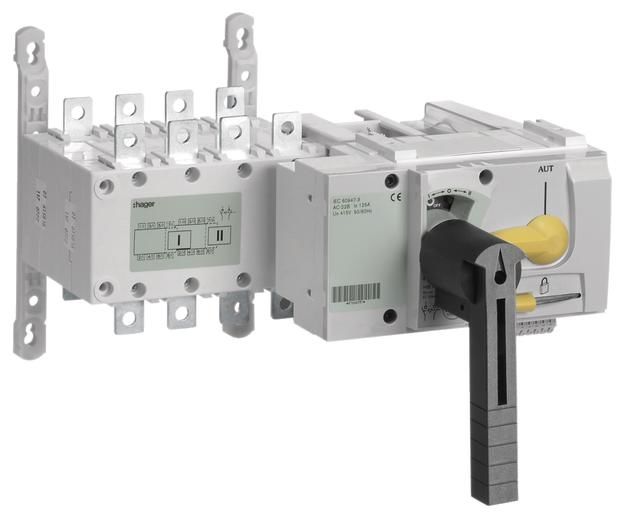

Hager HIB412M switch m.Motorantrieb, 4P 125A
|
2.596,35 EUR 2.705,67 EUR |
|||||||||||
|
( 3.089,66 EUR incl. VAT ) ≈ £2,201.70 | ≈ $2,910.51 plus delivery charges: 83,00 € |
|||||||||||
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |||||||||||
| Lieske Part No.: | 132521 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | HIB412M | ||||||||||
| UPC/EAN: | 3250613191344 | ||||||||||
| Weight: | 9.635 kg | ||||||||||
| Type: | HIB412M | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Hager HIB412M:
Function:
- 3 stable switching positions (I-0-II) and automatic switching under load from one position to the other safety separation with switch position indicator
- manual emergency switch handle
- generously dimensioned connection rails that enable the use of connecting rails. With standby relay with constant monitoring of the availability of the device, integrated auxiliary switch (SÖ) for each switching point and automatic or manual switching selectable.
Note: Manual locking with a padlock is possible.
| General | |
| Number of switches | 1 |
| Max. rated operation voltage Ue AC | 415 V |
| Rated operating voltage | 415 V |
| Rated permanent current Iu | 125 A |
| Rated permanent current at AC-23, 400 V | 125 A |
| Rated permanent current at AC-21, 400 V | 125 A |
| Rated short-time withstand current lcw | 12 kA |
| Rated operation power at AC-23, 400 V | 56 kW |
| Switching power at 400 V | 82 kW |
| Conditioned rated short-circuit current Iq | 100 kA |
| Number of poles | 4 |
| Number of auxiliary contacts as normally closed contact | 0 |
| Number of auxiliary contacts as normally open contact | 0 |
| Number of auxiliary contacts as change-over contact | 0 |
| Device construction | Built-in device fixed built-in technique |
| Colour control element | Other |
| Type of control element | Other |
| Type of electrical connection of main circuit | Cable clamp |
| Degree of protection (IP), front side | IP00 |
| Degree of protection (NEMA) | Other |
| Version as main switch | |
| Version as maintenance-/service switch | |
| Version as safety switch | |
| Version as emergency stop installation | |
| Version as reversing switch | |
| Motor drive optional | |
| Motor drive integrated | |
| Voltage release optional | |
| Suitable for front mounting 4-hole | |
| Suitable for front mounting centre | |
| Suitable for distribution board installation | |
| Suitable for intermediate mounting | |
| Interlockable | |
| Floor mounting | |
Questions & answers
What is the delivery time of Hager HIB412M switch m.Motorantrieb, 4P 125A?
The article Hager HIB412M switch m.Motorantrieb, 4P 125A is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Hager HIB412M to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Hager HIB412M switch m.Motorantrieb, 4P 125A always at the best possible price. We can give you a discount of 2% on Hager HIB412M switch m.Motorantrieb, 4P 125A if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 2 pieces of Hager HIB412M switch m.Motorantrieb, 4P 125A we can offer you a price of 2.498,99 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
