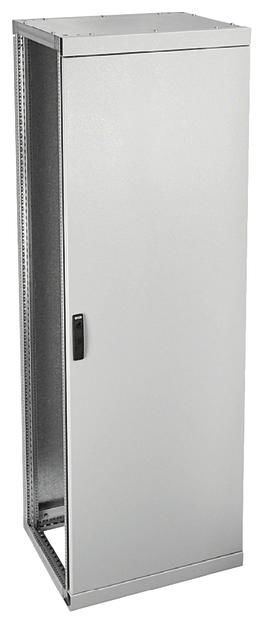

Hager FG22XE modular stand IP41 SKI RAL7035 2000x600x600mm content_copy

Modular distribution board IP41 600x2000x600 120° RAL7035 rear wall galvanized. Modular cabinet for indoor installation in accordance with VDE 0660 Part 600-1/-2, DIN EN 61 439-1/-2, dimensions in accordance with DIN 43870 protection class, IP41 in accordance with DIN EN 60529 (VDE0470-1), protection class IP 3x with open door, air and creepage distances in accordance with VDE 0110, Part 1 and 2/1.89, rated insulation voltage AC 800 V, overvoltage category IV, pollution degree 3, insulation class II, protection class I earthed. Floor-standing housing for single or row installation with removable rear and side walls, width 1 to 6 fields, 144 to 864 space units. Interior fitting system can be installed for network systems: 3 AC 50 Hz 230/400 V or 3 AC 50 Hz 400/690 V with a maximum feed-in current of 1600 A.
Cabinet frame made of galvanized sheet steel, cover plate and rear wall made of hot-dip galvanized sheet steel. With horizontal support rail for supporting rail stabilization, coupling plates for supporting rail fastening, prepared for univers N interior fitting system. Busbar bushings can be flanged next to each other through open side walls.
Door made of 2 mm sheet steel, powder-coated and baked, surface-mounted with internal hinges, can be hinged on the right or left. Door opening angle 120°, double door from width 1100 mm, door lock with standard four-point rod lock (single door) or 3-point rod lock (two doors) with 3 mm double bit.
Upper cable entries: 2 rows are punched out in the cover plate for each field, different cable entries (plastic or metal) can be installed. Lower cable entries: open, base plate with brush can be installed. Compliance with the protection class is required for installation of the cable entries at the top/bottom.
Note: Matching side walls and skirting boards are available as accessories. Door lock can be exchanged for other locks.

General
Mounting method	Floor installation
Type of cover	Door
Cover model	With notch
Type of door	Single
Nominal current (In)	1600 A
Height	2000 mm
Width	600 mm
Depth	600 mm
Internal depth	596 mm
Plate thickness cabinet	2 mm
Plate thickness door/cover	2 mm
Colour	Grey
RAL-number	7035
Number of openings for flange plates	4
Number of conduit inlets	6
Material housing	Steel
Surface protection	Powder coating
Degree of protection (IP)	IP41
Protection class	I
Impact strength	IK10
Circuit integrity	None
Transparent cover/door
With lock
Extension possible
With mounting plate
Suitable for outdoor use
Suitable for lightning protection

---
