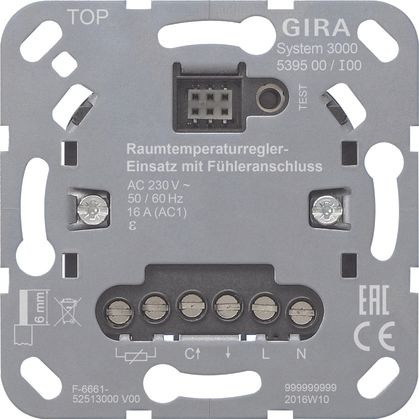

Gira 539500 S3000 RTR insert with sensor connection
|
108,62 EUR 113,20 EUR |
|||||||||||
|
( 129,26 EUR incl. VAT ) ≈ £92.22 | ≈ $122.41 plus delivery charges: 53,00 € |
|||||||||||
| Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline | |||||||||||
| In Stock: >100 pieces | |||||||||||
| Lieske Part No.: | 1713131 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 539500 | ||||||||||
| UPC/EAN: | 4010337036128 | ||||||||||
| Weight: | 0.08 kg | ||||||||||
| Type: | 539500 | ||||||||||
|
Graduated prices net
|
|||||||||||
Further Switch Flush standard from GiraFurther products in category Switch Flush standard
All products of Gira
Product information for Gira 539500:
System 3000 room temperature controller insert with sensor connection - Switching electric underfloor heating and thermal actuators. - Output signal: pulse width modulation (PWM) or two-point control (on/off). - Input for switching to cooling mode. - Interrupts the heating process after 60 minutes (overheating protection of a heater). - Connection of a remote sensor (accessory) possible. Combination with RF operating top 1-way / 2-way for KNX: - Heating actuator 1-way - Sensor channel 1-way or 2-way. - Local control of the System 3000 insert possible. - Radio control of other devices for KNX as a sensor possible. - Temperature detection. - {b}Function selection of the insert for room temperature controller:{\b} Control of 230 V actuators, heating, cooling mode, heating and cooling mode, switching of heating or cooling mode via communication object or extension input. PWM and 2-point controller, absolute and relative setpoint specification, heat demand control including cascading, valve protection function. Cyclic monitoring of the floor temperature, service mode for valve output, frost protection function (automatic or via communication object), calibration of the temperature sensor, boost function, summer and winter compensation. Extension input is used to switch between heating and cooling mode.
| General | |
| Model | On/Off |
| Type of power supply | 230 V AC |
| Thermal feedback | None |
| Control characteristic | PI |
| Number of heater outputs | 1 |
| Number of cooler outputs | 1 |
| Sensor/feeler type | Resistance sensor |
| Mounting method | Flush mounted (plaster) |
| Max. contact voltage | 230 V |
| Max. contact load | 16 A |
| Degree of protection (IP) | IP20 |
| Colour | Other |
| Contact type | Normally open contact (NO) |
| With receiver | |
| External sensor | |
| Heating | |
| Adjustable differential | |
| Temperature readable | |
| With sound indicator | |
| With display | |
| With tap water circuit | |
| Explosion-proof | |
| IFTTT support available | |
| Suitable for cooling | |
| Suitable for heating | |
Questions & answers
What is the delivery time of Gira 539500 S3000 RTR insert with sensor connection?
The article Gira 539500 S3000 RTR insert with sensor connection is currently in stock
According to our experience the article is ready for dispatch within 3 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Gira 539500 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Gira 539500 S3000 RTR insert with sensor connection always at the best possible price. We can give you a discount of 2% on Gira 539500 S3000 RTR insert with sensor connection if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 5 pieces of Gira 539500 S3000 RTR insert with sensor connection we can offer you a price of 105,36 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
