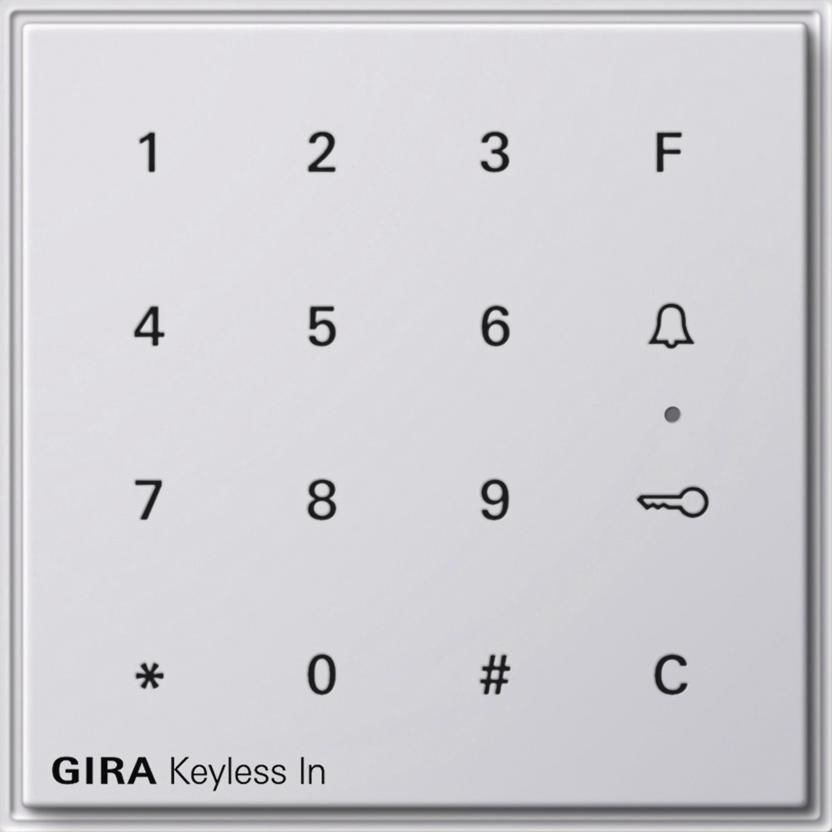

Keyless In keypad TX_44
(IP 44) pure white keypad as an access control system based on a capacitively acting and therefore wear-free keypad. The keypad has the following product features: - installation in the 58 mm flush-mounted box. - Capacitive keyboard. To enter the code a slight rapprochement or contact the number is sufficient. Due to the wear-capacitive technology no discernible wear frequently benuzter digit combination. - Allows a stand-alone device or in combination with the Gira door communication system, enables convenient Tueroeffnung for authorized persons and a Tuerrufsystem for buildings with more units. - In stand-alone mode, in the flush-use potential-free relay contacts are used for the switching operations, eg for door with its own power supply (eg handelsueblicher bell transformer). - Special C" key: delete a wrong entry. - Special key "keys": When the correct code is filed with Tastenbetaetigung a direct Tueroeffnung. - Special key "bell": Specific selection of home stations in large objects. - Special "F key: In conjunction with switching actuators 1211 00, 1289 00 of the Gira door communication system are hereby switching functions possible. - Integration in the Gira door communication system without other system components. - Start with direct configuration at the device, possible - the keypad is taken without a PC or programming software in operation. - Homogeneous blue LED illumination of the numerals and special characters at night. - Design diversity through integration into the Gira design platforms TX_44, System 55 Integration into Flaechenschalter and stainless steel 20 series, 21 series over adapter frame possible. - Master PIN number on the enclosed sealed security card is lost, the administrator PIN number. - The keypad can manage up to 255 codes. - Up to 32stellige codes possible. - Acoustic at Tastenbetaetigung FEEDBACK. - Three-color LED status indicator for visual signaling during programming and during the operation. - Beep on unauthorized removal of keyboard attachment for tamper detection. In combination with the Gira door communication system is also a means of tamper circuit switching is possible to realize. - The two built-in switching relay can be assigned to two different codes, eg Code 1: Tueroeffnung, Code 2: Turn of the Aussenlichtes.Ein and outputs - Switching contact: 2 relays with potential-free change-over contacts - Load capacity 24 V / 1.6 A AC / DC - Plug connector system Gira door communication system - 2 ports Auxiliary supply protection:
(IP 44 (TX_44 =
(IP 44) Power supply: 24 V DC 10% (power supply 1296 00) or 26 V DC 2 V (door communication bus voltage) Temperature range: -20 C to +70 C ESD resistance: up to 16 kV Type: 260 566
Quantity: 1 unit.
