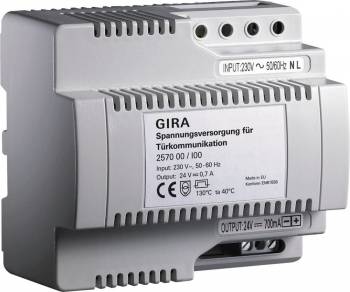

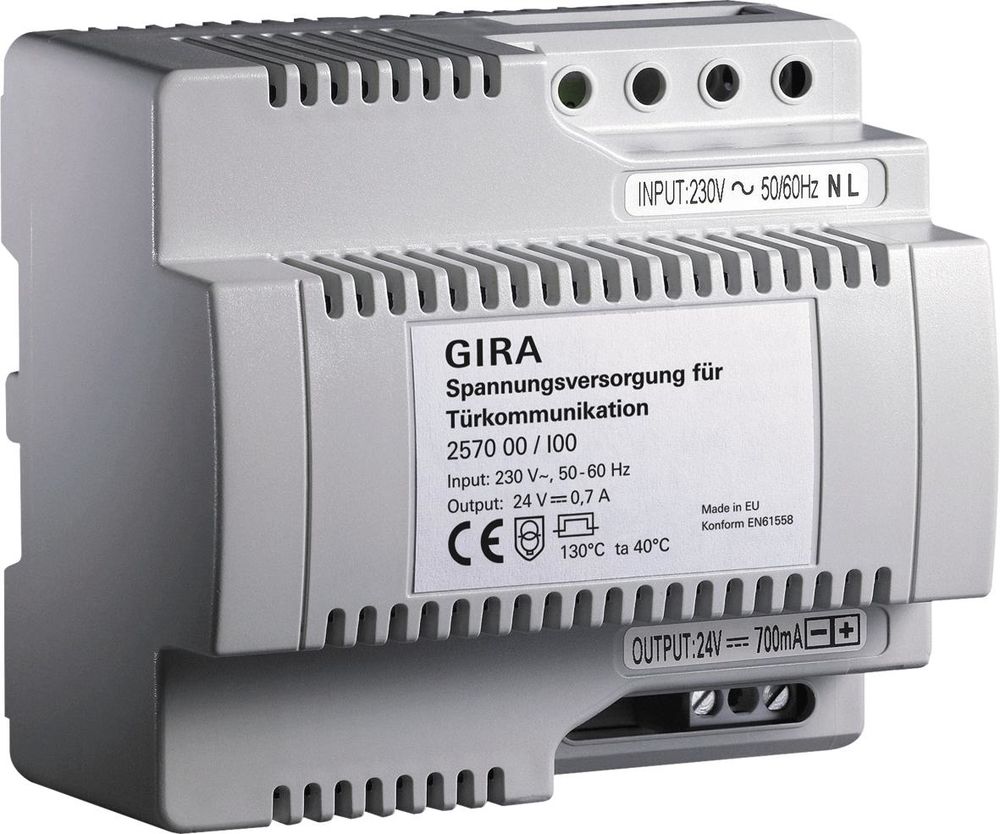

Gira 257000 2570 00 24V DC power supply, 700mA REG door communication content_copy

Gira Video Terminal additional power supply REG The video door communication system terminal is a fully pre-assembled home station with 14.48 inch Active TFT color display (5.7) and speakerphone for the Gira door communication system. The video terminal has the following product features: - Large 14.48 inch Active TFT color display (2) with a resolution of 640x480 pixels. - Text display (OSD Function) TFT color display for each of the camera and switched to Menuefuehrung for the end customer and the installer. - Installation Einzelgeraet as a flush or surface (mounting frame 1252 04 04 or 1251) or in a combination of devices in conjunction with the modular Funktionssaeule 1371 00, 1372 00, 1373 00 - Backlit control wheel is turned and pressed, and the Gespraechsannahme Menuefuehrung. - Optical FEEDBACK at the operating through green or red LED display depending on the system state. - Four buttons with a fixed occupancy for 1 Calling the menu level and Kameraein and switchover, 2 Light switch, 3 Ringer on or off, 4 Open the door. - Camera Switching - Selective dialing of up to three color cameras. The display shows the text indicates which camera is currently being driven is. - Control wheel for menu control as end customer: brightness, color saturation, contrast, switch the display as an installer: Select the language (German / English), frequency setting, termination of the cable, version display, default, display, off, LED lighting A- on / off, brightness, color saturation, contrast, switch the display. - High image quality even at oblique viewing angles. - Backlit by CCFL durable Roehre - handsfree - voice-controlled talk-back with echo and background Geraeuschunterdrueckung. - Enforcement function for loud Umgebungsgeraeuschen during the voice connection. - Signaluebertragung the audio and video data over the reverse polarity protected and short-circuit proof Gira 2-wire bus. - To supply the device with 24 V DC 10% two additional wires are needed for video terminal. The voltage is supplied by the power supply doorcommunication Item 2570 00 - Parallel connection of up to three video terminals possible. - A one-man operation with easy startup procedure. - Call differentiation between panel, landing and internal. - Choice of 5 different ring tones can be assigned individually to each call buttons. - Ring and Sprachlautstaerke adjustable in 5 steps. - Ring tone mute - ringer is switched off when visually displayed a door call. - Switchable Tueroeffnerautomatik: when the function of the door opener is automatically controlled by the Actuation Tuerstations call button. - Gebuehrenfreier-house voice traffic internal call with up to 10 other home stations. - Automatic switching of the TFT display for an incoming door call. - Integrated audio and video privacy. Power supply: 24 V DC 10% connections: 2 screw terminals for 2-wire bus connections: 2 screw Spanungsversorgung 24 V DC 10% connections: 2 screw terminals for floor call button connections: 2 system bus connector strips Dimensions: W x H x D 182 x 240 x 52 mm Recommended Mounting Height: 1.60 m Temperature range: -5 ° C to +40 ° C Color system: PAL Leitungslaenge power supply - video display terminal: max. 80 m cable with 0.8 mm Leitungslaenge power supply - video display terminal: max. 50 m cable with 0.6 mm

Type: 257000
Quantity: 1 unit.

General
Application	Other
Input voltage	230 V
Type of current	DC
Output voltage	24 V
Degree of protection (IP)	IP20
Width in number of modular spacings	6
Installation technique	Bus system
Mounting method	DIN rail
Integrated door opening circuit
Control function
Evaluation function
Service indication
Programming lock

---
