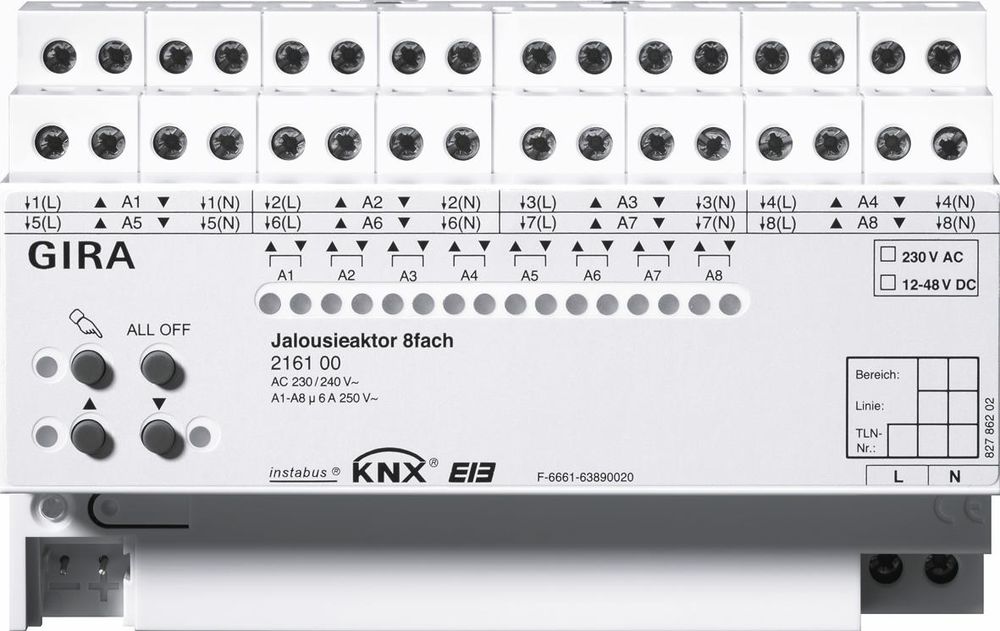

KNX / EIB Blind 8X 230 V AC / 12-48 V DC with Handbetaetigung KNX / EIB system DRA plus product family: Blind Product Type: Blinds Shutter Actuator with Handbetaetigung and status display for each output. For control of electrically operated blinds, Rolllaeden, awnings, Lueftungsklappen or similar devices for mains voltage 230 V AC (8 channel) or low voltage 12 to 48 VDC (4 channel). For project design and commissioning of the unit ETS3.0d is recommended. Blind actuator with integrated bus coupler. Mounting on DIN rail. Connecting various external conductor. Features: - Independent control of Jalousieausgaenge. - Automatic curtain travel time detection at 230 V AC drives with mechanical limit switches. - Hanging position directly controllable. - Slat position directly controllable. - Behaviour after bus voltage failure and recovery. - Separately configurable with Fahrzeitverlaengerung travel times for trips to the upper limit. - Central control of all Jalousieusgaenge possible. - FEEDBACK blind position or the position of the slats. Active or passive (object readout) cyclical Rueckmeldefunktionen. - Return codes can procrastinate after bus voltage. - Assignment to up to 5 different safety functions (3 wind alarms, 1 rain alarm, 1 frost alarm), or with cyclical monitoring. - Forced position function can be implemented for each shutter output. - Inclusion in scenes possible, max. 8 internal scenes can be parameterised per channel. - Memory function for light scenes. - Sun protection function activated with fixed and variable blind or slat positions. - Advanced Sun Protection with extensive control functions. - Possible involvement in temperature management of the building. - Disabling of individual outputs manually or via bus. Operating voltage: 230 V AC, 50/60 Hz Output Voltage AC: 230 V AC, 50/60 Hz SWITCHING AC 230 V 6 A / AC1 Switching Voltage DC: DC 12 to 48 V SWITCHING DC 12/24 V: 6 A SWITCHING DC 48 V: 3 A connections: KNX / EIB about connection and branch terminal 0595 00 connections: screw load about connections: 0.5 to 4 mm finely stranded without ferrule connections: 0.5 to 2.5 mm flexible with ferrules dimensions: REG device with 8 HP VDE approved according to: EN 60669-1, EN 60669-2-1, EN 50428 type: 216100 Quantity: 1 ea.
Questions & answers
What is the delivery time of Gira 216100 Blind 8-230V AC KNX / EIB ?
The article Gira 216100 Blind 8-230V AC KNX / EIB is currently
not in stock und muss auftragsbezogen bestellt werden.
According to our experience the article is ready for dispatch within 8 working days.
The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time.
Just send us an inquiry about the desired quantity of Gira 216100 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Gira 216100 Blind 8-230V AC KNX / EIB always at the best possible price. We can give you a discount of 2% on
Gira 216100 Blind 8-230V AC KNX / EIB if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduation prizes with every purchase. If you buy a minimum of 3 pieces of Gira 216100 Blind 8-230V AC KNX / EIB we can offer you a price of 446,69 EUR per piece. The more you buy, the cheaper the article will be.
You can also send us a price proposal for your desired quantity of Gira 216100 Blind 8-230V AC KNX / EIB via the form price proposal. Enter your name, contact details, price and quantity you need. Our sales team will then send you a good quotation immediately.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
