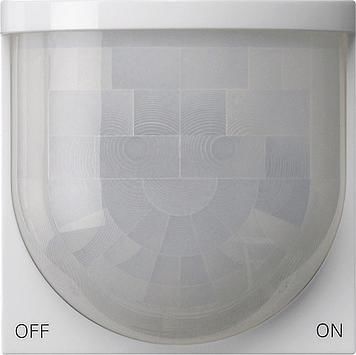

GIRA 204127 KNX movement standard 2.20m System 55 pure white with content_copy

Motion detector attachment 2.20 m standard for KNX pure white satin finish System 55 - Adjustment of the sensitivity using an adjuster on the device. - Display of motion detection (permanent or only in the walk test). - A function block can be configured. - Function block can be configured for the application 'guardian', 'guardian with switch-off brightness' or 'detector'. - The function block has two output communication objects available, via which the switching and control commands are sent to the KNX bus. - Configurable functions: switching, staircase function, dimming value transmitter, scene extension, temperature value transmitter, brightness value transmitter, operating mode switching, switching with forced position. - Switching of the operating mode (OFF / AUTO / ON) during operation by on-site operation or via communication object by on-site operation on other motion detectors for KNX via touch sensor for KNX or visualization. - In brightness-independent operation, the function block can determine the time period after the last movement and send it to the KNX bus via a communication object. This function allows, for example, simple monitoring of people's movements in assisted living or in a retirement home. - Function of the motion detection can be set for the 'guardian' or 'guardian with switch-off brightness' application. - The device can be used in the 'guardian' or 'guardian with switch-off brightness' applications as a single device, as a main or extension unit. - Walk test function to help with the planning and setting of the PIR detection area.
Type: 204127
