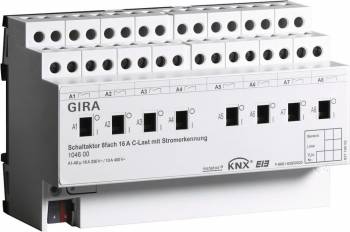

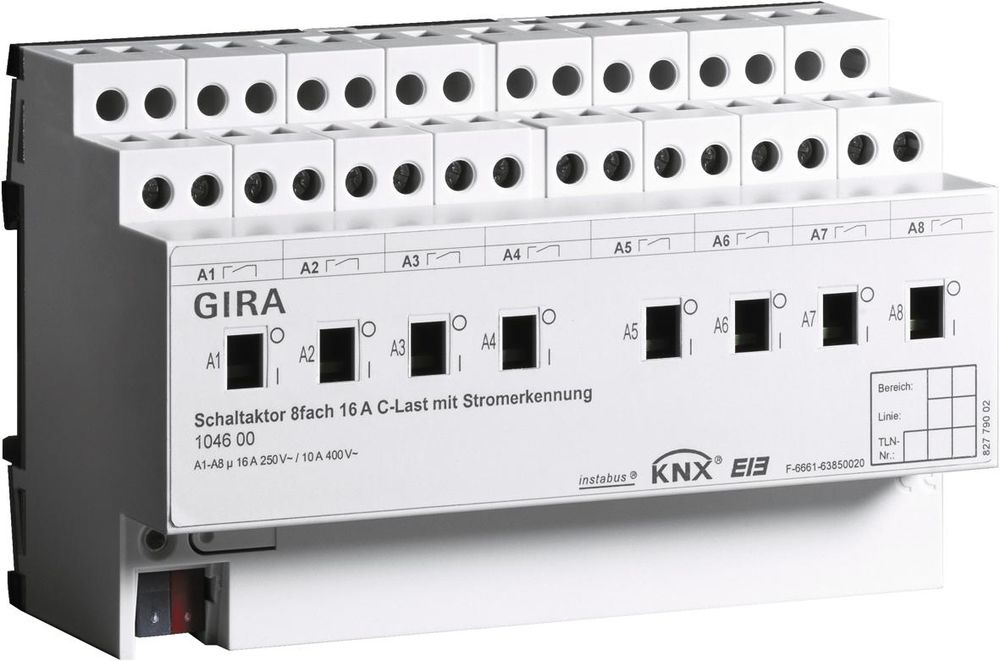

Gira 104600 switch 8-16A , Instabus KNX / EIB

KNX / EIB switching actuator 16 A 8 Handbetaetigung and current measurement for C loads KNX / EIB system DRA plus product family: Output Product type: Binary output 8-8-fold switch actuator with integrated bus coupler REG. Independently controllable For switching eight groups of loads. The switching contacts of the switching actuator 8 carbon load are Specially designed for capacitive loads with character and consequent short-term high inrush currents (see technical data). The switch has a built-in power detection. May be a current measurement for each channel. Mounting on DIN rail.With manual switch for switching the relay (on / off) or without KNX / EIB operational in parallel. No additional power supply. For project design and commissioning of the unit ETS3.0d is recommended.Multi-phase connection. features: - Situated opposite the switching of the 8 outputs. - Handbetaetigung the relay Independently from the bus / switch position indication. - NO or NC. - Central switching function. - Sammelrueckmeldung to reduce bus load. - Active or passive (object readout) cyclical Rueckmeldefunktion. - Return codes can procrastinate after bus voltage. - Logical Verknuepfungsfunktion for each output. - Lock function for each channel Configured. Alternatively forced setting function for each output. - Time functions (A, off delay, staircase light function - ie with advance warning). - Inclusion in light scenes possibleness, max. 8 internal scenes can be parameterised per channel. - Memory function for light scenes. - Operating hours counter with a limit function (overlimit bus changeable) for each . output . - Eingangsueberwachung to cyclical updates with safety - Reactions after bus voltage failure and recovery and after ETS programming of operation for each channel. - Current detection: measurement of the load current for each channel. - Thresholds for Lastueberwachung (eg load failure) . Switching contact: relay with potential-free normally-SWITCHING 8 x 230 V AC: 16 A / AC or 16 A third SWITCHING AC 400 V AC: 10 A / 1 or 10 A AC / DC SWITCHING AC-3: 16 A / 24 V Max current: 600 A, 300 A 150 s, 600 s Power consumption: 3680 W resistive load consumption: 16 A, max. 200 F capacitive load 230 V AC Power consumption: 3680 W incandescence Power input: 3680 W HV halogen-connection capacity: 2000 VA LV halogen, wound transformer power input: 2500 W LV halogen, Gira Tronic transformer connection power: 3680 VA fluorescent lamps, uncompensated Power rating: 3680 VA fluorescent lamps, dual circuit connection power: 2500 VA fluorescent lamps in parallel Compensated power input: 3680 W mercury vapor lamps uncompensated Power input: 3680 W mercury vapor lamps in parallel compensated current detection: 0.25 to 16 A sinusoidal current detection: 50/60 Hz connections: KNX / EIB about connecting and branch terminal 0595 00 connections: screw load about connections: 0.2 to 4 mm solid connections: 2 x 0.2 to 2.5 mm Solid connections: 0.75 to 4 mm stranded without ferrule connections: 0.5 to 2.5 Flexible with ferrule mm Dimensions: DRA device with 8 HP VDE approved accor ding to : EN 60669-1, EN 60669-2-1, EN 50428 type: 104600


Quantity: 1 unit.
