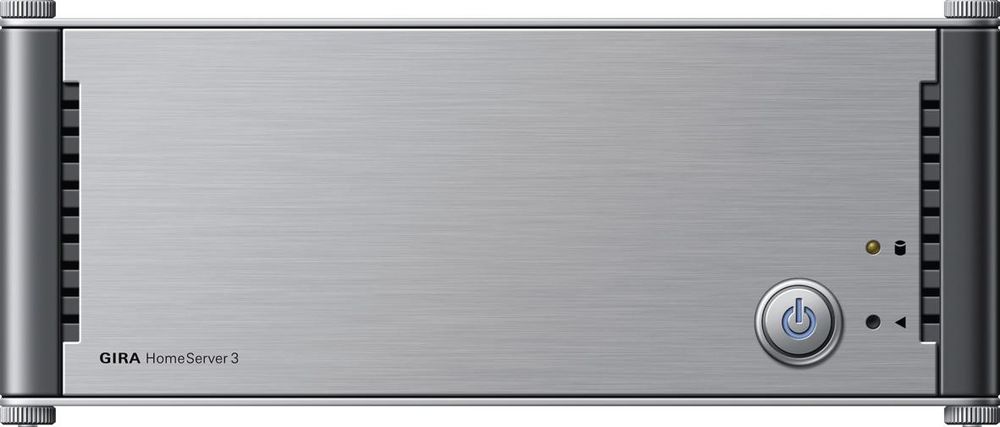

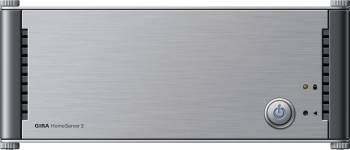

Gira 052900 Home Server 0529 00 Net 4.0, Instabus system content_copy

KNX / EIB Gira Home Server 3 KNX / EIB system Gira Home Server 3 gateway for the KNX / EIB installation, especially tuned to the requirements of buildings in the private sector. Thus, the Gira Home Server 3 on-board computer, which will take over the networking of modern buildings and their technical equipment internally and with the world. The operation is about modern communication media. In addition to the PC can be accessed also through other internetfaehige devices that are connected to a LAN, an in-house WLAN or the Internet. Thus, the KNX / EIB functions are monitored and controlled everywhere. As convenient user Devices for the Gira Gira Home Server 3 also smart sensor Control 9 Client Control are
9 Client and Gira Interface apps for iPhone, iPod touch and iPad (App. from August 2
available from the Apple Store). Due to the software architecture of the home server is protected against attacks from the Internet. The high safety standard is supplemented inter alia by an authentication system that can be queried in the phone number, user name and PIN. The different security levels can be, depending on the access environment individually configured. The Gira Home Server 3 includes all the features of previous home server 2 Net. Some other features: - Updatefaehig. - Management of 2 users. Multiple login using a user name possible. - Archiving projects with your own content such as eg floor plans, etc. - Cyclic / triggered data recording (eg Temperaturverlaeufe, operating hours, levels). Graphical representation. - Graphical user interface: visualization of buildings or Geraetezustaenden with freely positionable icons and texts. Leave your own images and menu structures for each user group. - Evaluation of IP cameras, such as Mobotix: Recording of images and representation in visualization. Transmission of image data by e-mail and FTP. There are country-specific requirements to be considered, especially protocol-specific information and standards in communications (eg ISDN, SMS, etc.). - Export of data or alarm records in Excel format, CSV, HTML, XML. - Mathematical functions (such as basic arithmetic operations). - Save / recall of light scenes. - Timers, weekly program, holiday calendar. - Fault messages, measured values ​​and sensor or Aktorzustaende transferable by SMS and email. Acknowledgment about EIB or phone. - Switching via phone call. - Self-learning presence simulation. - Remote programming via network, Internet, dial-up connection. - Sending of ASCII texts on the information display 2 - IP Communication to other products that generate or edit the IP telegrams to control. - Low wear, there are no moving parts such as fans or hard drive. - Graphical logic editor: Allows eg project about cross-copying of block groups, creating as many Worksheets. About 8 logic blocks. - Import and export of global libraries. - Communication objects: data from ETS by taking over OPC file or HSXML file (add-in ETS). Import and export of communication objects as a CSV file. - Universal clock: Several switching points per clock possible. Using wildcards in day, month, year. Activation / deactivation over communication object. With Astro and random function. - Backup / restore of retentive. -
4-byte EIB texts: Evaluation by comparison with a text string. Use in SMS, email, status page. - Receipt of IP messages: Specification of an address range, extracting
4-byte EIB texts, assignment to
4-byte EIB texts. - SNMP: reading and numerical
4-byte EIB texts. Set of numeric and integer values ​​and texts. Send SNMP traps about Home Server command. Optional cold start trap at the start of the home server. - Operation / Status about Agfeo telephone system. - Bus access via EIBnet / IP protocol. - Evaluation of web-based IP devices (read / write). - IETS Server: Remote programming of EIB systems (secure operating gewaehrleistet). Release of iETS function over communication object. Home Server runs during the next programming over iETS without limitations placed. Cycles before be executed. Process image remains current. - More information: www.gira.de / home server - Technical specifications can vary depending on the version and changed werden.Systemvoraussetzungen for operating devices: Internet browser of possible control devices must at least HTML 4 , Java Script
.
, CSS and Dynamic HTML formatting. WAP is WAP standard
.
supported, but not all functions can be such as universal timer operated. Connection possibilities: -
serial interface. -
RJ 45 network port,
/
Mbit Ethernet - At the KNX / EIB system over IP router
3, USB data interface flush
7, USB data interface REG
8 (USB HID Compliant available from expert software version 2.4 or higher). - ISDN modem integrated (
EURO-ISDN S x RJ45 for direct connection to the NT or south of the telephone system) Setup software: -. The Home Server expert for operating systems Windows XP, including Internet Explorer Version 6 . - Taking over the ETS group addresses from ETS 2 and ETS 3 - Integration of Grafikprogrammen.Lieferumfang: - Power supply with connecting cable, ISDN connection cable, null modem cable, Quick Start Guide, Home Server 3 Efficient service for the electrical industry - networking of EIB and IP expertise with system integrators EIB manufacturing electrical specialist companies can in the commissioning and design of Gira products of trades over cross Gebaeudesystemtechnik, such as the Gira Home Server, with the cooperation system integrators benefit. More information or host closest to a systems integrator, you learn on +49 () 2
95/6 2 -
94 or below about the search function on the Internet: www.gira.de / system integrators Gira KNX / EIB Home Server training for 3 Tel +49 () 2
95/6 2 -
7
Fax +49 () 2
95/6 2 -

Schulung@gira.de 7, e-mail or Internet www.gira.de protection: IP 2 Operating temperature: C to +4 C Power consumption: ca
5 W Dimensions: W x H x D 2
5 x 88 x 27 mm Type: 529 Quantity:
ST.

General
Bus system KNX
Bus system KNX radio
Bus system radio frequent
Bus system LON
Bus system Powernet
With display
Integrated GSM-modem
Integrated DCF clock

---
