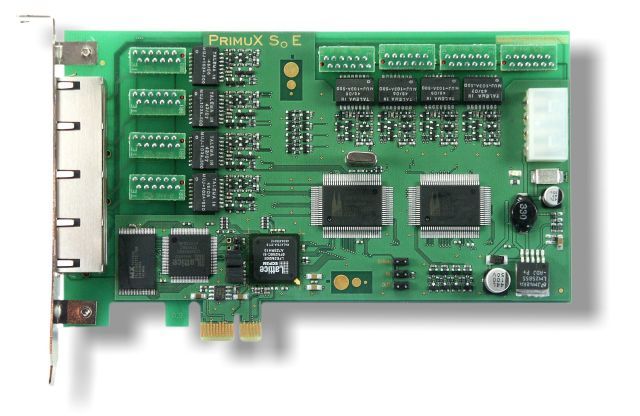

Gerdes PrimuX 2S0 NT Server PCI Express Controller

Gerdes PrimuX 2S0 PCI-Express NT Server Controller
Areas of application
With 4 channels, PrimuX 2s0 is well suited for exchanges and fax servers in small companies.
Features
High-performance signal processor for low PC load and minimal delays.
Connection
2 basic connections (multi-device or system connection).
Technical data
Fully compatible with Windows 2000, XP, Vista, Server 2003, Server 08, Linux, single and dual processor systems, 32 and 64-bit operating systems
Dual-Mode CAPI 1.1/ 2.0, integrated network CAPI, convenient configuration program, Tracer
NDIS WAN MiniPort (for Internet and WAN connection)
Dynamic channel bundling and data compression according to Windows standard
Multi-adapter capable drivers. Different PrimuX cards can be operated at the same time.
Switching and conferencing. Full support, even across controllers.
Virtually delay-free and therefore echo-free voice communication (typically 8 ms)
Fax polling, compression (MR, MMR), ECM, DTMF detection
Support of all supplementary services in ISDN: Call number identification (CLIP, CLIR, COLP, COLR, KEY, MSN, DDI, SUB), call forwarding (TP, CFU, CFB, CFNR), call completion (CW, HOLD, ECT), charge information (AOC), three-party conference, large conference
External protocols: DSS1, 1TR6, NI-2. Protocols :
X.25
, Driver package, configuration and trace software operating and installation instructions
