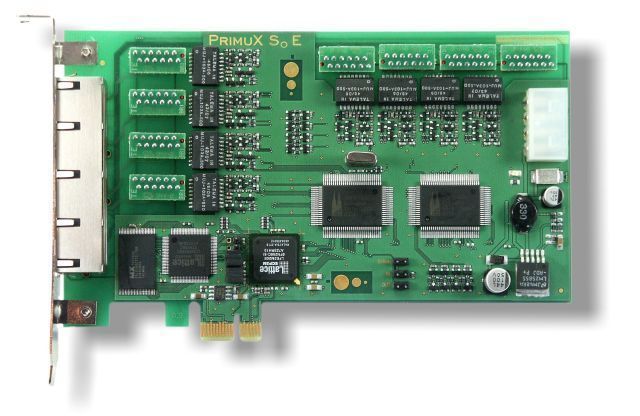

Gerdes 2404 PrimuX 4S0 PCI-Express server controller
|
686,13 EUR 686,13 EUR |
|
|
( 816,49 EUR incl. VAT ) ≈ £574.29 | ≈ $754.05 plus delivery charges: 55,00 € |
|
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |
| Lieske Part No.: | 652305 |
|---|---|
| Mfg Part No: | 2404 |
| UPC/EAN: | 4032783240409 |
| Weight: | 0.84 kg |
Product information for Gerdes 2404:
Applications
The PrimuX 4S0 is used in corporate networks where a stable and high-performance ISDN connection is required. It is suitable for applications such as ISDN telephony, data transmission, fax transmission, and conferencing functions. Support for multiadapter drivers allows simultaneous use of multiple PrimuX cards within a single system, increasing scalability and flexibility. The card is particularly designed for server systems requiring high traffic density and simultaneous processing of multiple ISDN channels.
Functions and Features in Detail
The controller features Dual-Mode CAPI 1.1/2.0, enabling the use of different ISDN protocol versions. The integrated network CAPI supports connection to networks and enables use of ISDN functions within network applications. A configuration program simplifies card setup, and the Tracer NDIS WAN MiniPort supports connection to Internet and WAN networks. Dynamic channel bonding and data compression according to Windows standards increase transmission performance and efficiency. The card supports fax polling, compression techniques such as MR and MMR, ECM (Error Correction Mode), and DTMF detection.
Technology Explained Simply
The card uses ISDN technology to establish digital telephone and data connections. Support for protocols such as DSS1, 1TR6, and NI-2 enables connection to various ISDN networks. Integrated support for supplementary services includes functions such as caller ID (CLIP, CLIR, COLP, COLR, KEY, MSN, DDI, SUB), call forwarding (TP, CFU, CFB, CFNR), call completion (CW, HOLD, ECT), call charge information (AOC), three-way conferencing, and large conferences. The nearly delay-free and thus echo-free voice communication (typ. 8 ms) ensures clear and natural voice transmission. Support for protocols such as X.25, X.75, Transparent, HDLC transparent, V.110, T.30, T.70 NL, T90.NL, ISO 8208, and LAPD expands application possibilities in various network environments.
Compatibility and Accessories
The PrimuX 4S0 is compatible with various operating systems and can be used in systems with different processor architectures. It can be operated simultaneously with other PrimuX cards, enabling use in complex network environments. Compatible accessories include various PrimuX controller models such as the PrimuX 2S0 PCI-Express NT Server Controller, the PrimuX USB external ISDN adapter V2, the PrimuX 8S0 PCI-Express Server Controller, and other variants suitable for different requirements.
Installation and Mounting
Installation is performed via the PCI-Express slot in the server. The card is physically inserted into the appropriate slot and configured through the operating system using the provided drivers. Configuration is done via the included configuration program, which allows setting of ISDN parameters and network settings. The drivers are multiadapter-capable, enabling multiple cards to be operated simultaneously in the system.
Operational Advantages
The PrimuX 4S0 provides a stable and high-performance ISDN connection for server environments. Support for dynamic channel bonding and data compression increases transmission performance. Nearly delay-free voice communication ensures clear and natural telephony. Comprehensive support for supplementary services and protocols enables flexible use in various application scenarios. The 5-year premium warranty provides additional security for operation.
| General | |
| Operating system compatibility | Windows 2000, XP, Vista, Server 2003, Server 08, Linux |
| Processor architecture | Single- and dual-processor systems |
| Operating system architecture | 32- and 64-bit |
| CAPI mode | Dual-Mode CAPI 1.1/2.0 |
| Network CAPI | Integrated |
| WAN MiniPort | Tracer NDIS |
| Data compression | according to Windows standard |
| Channel bonding | Dynamic |
| Voice communication delay | typ. 8 ms |
| Fax functions | Fax polling, compression (MR, MMR), ECM, DTMF detection |
| Supplementary Services | Caller ID (CLIP, CLIR, COLP, COLR, KEY, MSN, DDI, SUB), Call forwarding (TP, CFU, CFB, CFNR), Call completion (CW, HOLD, ECT), Call charge information (AOC), Three-way conference, Large conference |
| External protocols | DSS1, 1TR6, NI-2 |
| Supported protocols | X.25, X.75, Transparent, HDLC transparent, V.110, T.30, T.70 NL, T90.NL, ISO 8208, LAPD |
| Interface | PCI-Express |
| Manufacturer | Gerdes |
| Multi-adapter capability | |
Questions & answers
What is the delivery time of Gerdes 2404 PrimuX 4S0 PCI-Express server controller?
The article Gerdes 2404 PrimuX 4S0 PCI-Express server controller is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Gerdes 2404 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Gerdes 2404 PrimuX 4S0 PCI-Express server controller always at the best possible price. We can give you a discount of 2% on Gerdes 2404 PrimuX 4S0 PCI-Express server controller if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
