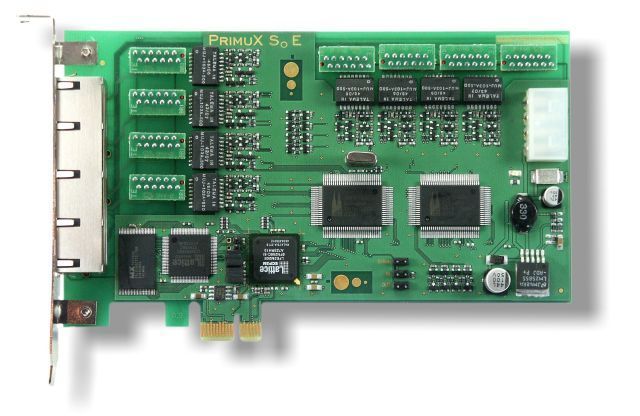

Gerdes PrimuX 4S0 NT Server PCI Express Controller

Gerdes PrimuX 4S0 PCI-Express NT Server Controller
Areas of application
With 8 channels, PrimuX 4S0 is well suited for exchanges and fax servers in small to medium-sized companies.
Features
High-performance signal processor for low PC load and minimal delays. In the NT version, all connections can be configured as TE/NT.
Connection
4 basic connections (multi-device or system connection). PrimuX 4S0 is available as PCI and PCI Express versions.
Technical data
Fully compatible with Windows 2000, XP, Vista, Server 2003, Server 08, Linux, single and dual processor systems, 32 and 64-bit operating systems
Dual-Mode CAPI 1.1/ 2.0, integrated network CAPI, convenient configuration program, Tracer
NDIS WAN MiniPort (for Internet and WAN connection)
Dynamic channel bundling and data compression according to Windows standard
Multi-adapter capable drivers. Different PrimuX cards can be operated at the same time.
Switching and conferencing. Full support, even across controllers.
Virtually delay-free and therefore echo-free voice communication (typically 8 ms)
Fax polling, compression (MR, MMR), ECM, DTMF detection
Support of all supplementary services in ISDN: Call number identification (CLIP, CLIR, COLP, COLR, KEY, MSN, DDI, SUB), call forwarding (TP, CFU, CFB, CFNR), call completion (CW, HOLD, ECT), charge information (AOC), three-party conference, large conference
External protocols: DSS1, 1TR6, NI-2. Protocols :
X.25
, Driver package, configuration and trace software operating and installation instructions
