Fujitsu FPCPR401BP USB Type-C / Thunderbolt 4 Port Replicator

Your rating:
Average rating
product review for Fujitsu FPCPR401BP USB Type-C / Thunderbolt 4 Port Replicator
( 5 / 5 ) 6 ratings
Fujitsu FPCPR401BP
This image may differ from the desired article.
Fujitsu FPCPR401BPFujitsu FPCPR401BPFujitsu FPCPR401BP
-67% 79,96 EUR 238,74 EUR
( 95,15 EUR incl. VAT )
≈ £66.93  |  ≈ $87.88
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline
In Stock: >25 pieces
1x Fujitsu FPCPR401BP USB Type-C / Thunderbolt 4 Port Replicator
Datasheet:file_download Download
Lieske Part No.:2012539
Mfg Part No: FPCPR401BP
UPC/EAN: 4063872854948
Weight:0.2 kg

Product information for Fujitsu FPCPR401BP:

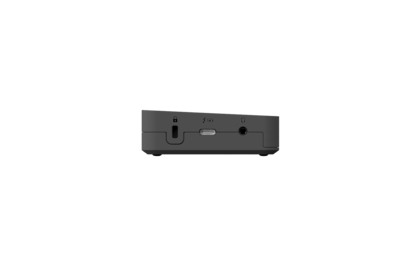

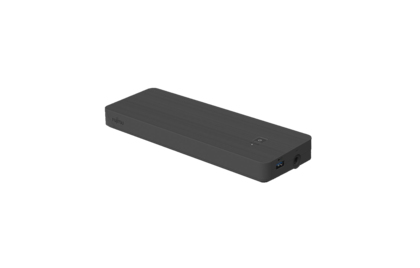

The Fujitsu FPCPR401BP is a cable-connected docking station for notebooks, connected via a Thunderbolt 4 host interface. It serves as a port replicator to simplify the connection of multiple peripheral devices to a notebook, particularly in office and work environments where quick switching between mobile and stationary work modes is required. The device is finished in black and features a compact design with dimensions of 239 mm (width) × 80 mm (depth) × 26 mm (height) and a weight of 440 g, making it suitable for use on desks or in mobile workstations.

Applications

The docking station is designed for professional users requiring a stable and fast connection for multiple devices. It is particularly suitable for workstations where a notebook remains connected for extended periods, such as in offices, call centers, or technical service environments. Support for Thunderbolt 4 enables high data transfer rates and simultaneous power delivery, simplifying use with modern laptops. The integrated Ethernet-LAN function with data rates of 10, 100, or 1000 Mbit/s ensures a reliable network connection, which is essential for office applications.

Functions and Equipment in Detail

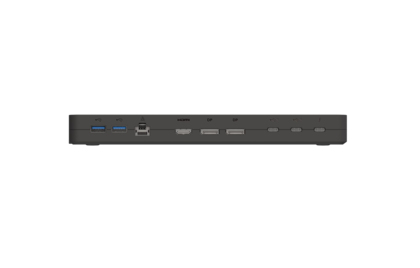

The FPCPR401BP offers a total of six external connections: two USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports, one USB 3.2 Gen 2 (3.1 Gen 2) Type-C port, two DisplayPort connections, and two Thunderbolt 4 ports. This variety of interfaces allows simultaneous connection of monitors, storage devices, printers, network cables, and other USB devices. The two DisplayPort connections support connection to two external screens, which is useful for multi-monitor setups. The integrated DC power connector enables power delivery to the connected notebook via the docking station, eliminating the need for the laptop’s original charger.

Technology Explained Simply

The Thunderbolt 4 technology offers a maximum data transfer rate of up to 40 Gbit/s and supports simultaneous power delivery over the same cable. This reduces the number of required cables and simplifies the work environment. The USB 3.2 Gen 2 connections (also known as USB 3.1 Gen 2) enable data transfer rates up to 10 Gbit/s, sufficient for connecting external hard drives, SSDs, or other fast storage devices. The Ethernet-LAN function with 10/100/1000 Mbit/s ensures a stable network connection, which is especially important for critical applications such as file transfers or video conferencing. The docking station is powered via an AC power supply unit with 170 W, sufficient to power the connected notebook and multiple connected devices simultaneously.

Compatibility and Accessories

The docking station is designed for notebooks equipped with a Thunderbolt 4 port. Connection is made via a cable-based system, with the included AC cable providing power to the docking station. Compatibility is therefore limited to all devices supporting the Thunderbolt 4 interface.

Installation and Mounting

Installation is performed by simply connecting the notebook to the docking station via the Thunderbolt 4 port. Power is supplied via the included AC cable. External device connections (USB, DisplayPort, Ethernet) are directly accessible on the device and require no additional configuration. The docking station is designed for desktop use and does not require special mounting or fixation.

Operational Advantages

The FPCPR401BP reduces the number of required cables and enables a quick, cable-free work environment once the notebook is connected. Simultaneous power delivery and data transfer via Thunderbolt 4 simplifies usage. The integrated Ethernet function ensures a stable network connection, essential for office applications. The combination of multiple USB and DisplayPort connections allows simultaneous use of multiple peripheral devices, increasing productivity. The compact design and low weight also make the docking station suitable for mobile use scenarios.

Logistics data
Harmonized System (HS) code84733020
Network
Ethernet LAN (RJ-45) ports1
Ethernet LAN data rates10,100,1000 Mbit/s
Ethernet LANYes
Packaging content
Cables includedAC
Packaging data
Quantity per pack1 pc(s)
Performance
Product colourBlack
Card reader integratedNo
Ports & interfaces
Connectivity technologyWired
Host interfaceThunderbolt 4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity1
DisplayPorts quantity2
Thunderbolt 4 ports quantity2
DC-in jackYes
Power
Power source typeAC
Power supply170 W
Weight & dimensions
Width239 mm
Depth80 mm
Height26 mm
Weight440 g


Product data sheet
Datasheet for Fujitsu FPCPR401BP, EAN: 4063872854948
