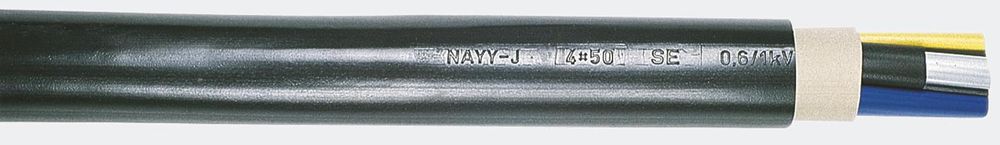

Faber Kabel 3994251 NAYY-J 5X185 RM var. Low voltage underground cable aluminum conductor
|
49,57 EUR |
|
|
( 58,99 EUR incl. VAT ) plus delivery charges |
|
| Delivery time on requestinfo_outline | |
| Lieske Part No.: | 1326783 |
|---|---|
| Mfg Part No: | 3994251 |
| UPC/EAN: | 4046725334798 |
| Weight: | 0 kg |
Product information for Faber Kabel 3994251:
Application:
As power and control cable for use outdoors, in the ground, for power plants, industrial and switchgear installations, in water, in dry and damp indoor areas, in cable ducts and in local networks, if no mechanical damage is to be expected.Structure:
Conductor: aluminum conductor in accordance with VDE 0295,
(RE) round single-wire or
(SE) sector-shaped single-wire
or (SM) sector-shaped
multi-wire
Core insulation: PVC
Core identification: in accordance with VDE 0293-308
Filling jacket
J = with protective conductor
O = without protective conductor
Outer jacket: black PVC
Technical data:
Nominal voltage: 0.6 /1 kV
Test voltage: 4 kV
Temperature range: -5 °C - +50 °C (during installation)
-30 °C - +70 °C (after installation)
Operating temperature: +70 °C (max.)
Bending radius: 12 x cable diameter
Flame retardancy: in accordance with VDE 0472 T.
804 test type B (=IEC 332-1).
Type: NAYY-J 5X185 RM var.
The final cable weight will be determined before invoicing. The calculation is based on the copper content and any additional weight due to drums, pallets, or outer packaging. Prices are subject to this subsequent calculation.
Please note that for cables, that are not in stock and must be produced, the manufacturer may need an order of a minimum length that can be 5-10km depending on cable type!
Questions & answers
What is the delivery time of Faber Kabel 3994251 NAYY-J 5X185 RM var. Low voltage underground cable aluminum conductor?
The article Faber Kabel 3994251 NAYY-J 5X185 RM var. Low voltage underground cable aluminum conductor is currently not in stock und muss auftragsbezogen bestellt werden.
According to our experience the article is ready for dispatch within 8 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Faber Kabel 3994251 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Faber Kabel 3994251 NAYY-J 5X185 RM var. Low voltage underground cable aluminum conductor always at the best possible price. We can give you a discount of 2% on Faber Kabel 3994251 NAYY-J 5X185 RM var. Low voltage underground cable aluminum conductor if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
