Faber Kabel 0111046 NYCY 5X6 RE/6 var. Eca low voltage underground cable
|
9,21 EUR |
|
|
incl. 3,14 EUR copper surcharge ( 10,96 EUR incl. VAT ) plus delivery charges |
|
| Delivery time on requestinfo_outline | |
| Lieske Part No.: | 1427771 |
|---|---|
| Mfg Part No: | 0111046 |
| UPC/EAN: | 4046725044161 |
| Weight: | 0 kg |

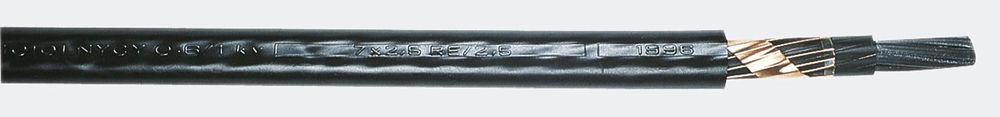

Product information for Faber Kabel 0111046:
Application:
As a permanently installed power and control cable for use primarily in industrial and switchgear installations and in power plants where increased mechanical protection against contact voltage is required.Structure:
Conductor: bare copper conductor in accordance with VDE 0295,
(RE) round, single-wire
Core insulation: PVC
Core identification: in accordance with VDE 0293-308 1 to 5 cores,
from 7 cores black with white numbers
Filling jacket
Concentric conductor: made of bare copper wires stranded around the
common core sheath
with a counter helix made of
copper tape (copper wires in the
inner layer, copper tape in the
outer layer)
Outer jacket: black PVC
Technical data:
Nominal voltage: 0.6 /1 kV
Test voltage: 4 kV
Temperature range: -5 °C - +50 °C (during installation)
-30 °C - +70 °C (after installation)
Operating temperature: +70 °C (max.)
Bending radius: 12 x cable diameter
Flame retardancy: in accordance with VDE 0472 T.
804 test type B (=IEC 332-1).
Type: NYCY 5X6 RE/6 var.
The final cable weight will be determined before invoicing. The calculation is based on the copper content and any additional weight due to drums, pallets, or outer packaging. Prices are subject to this subsequent calculation.
Please note that for cables, that are not in stock and must be produced, the manufacturer may need an order of a minimum length that can be 5-10km depending on cable type!
