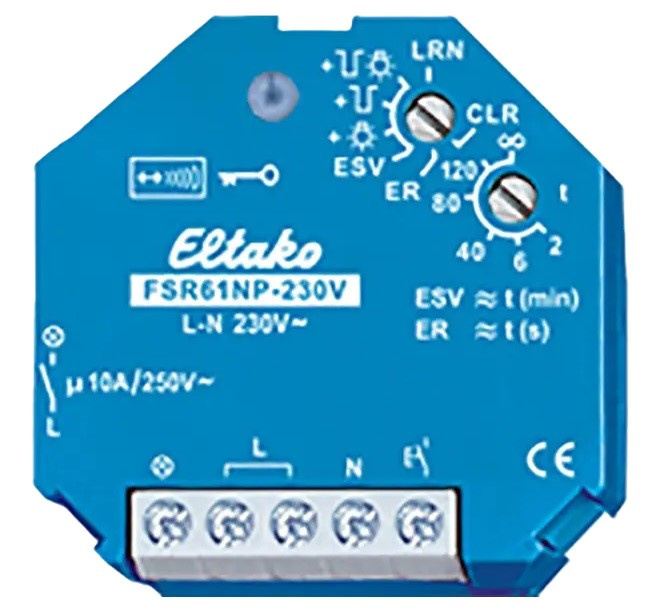

Eltako 30100030 FSR61NP-230V wireless actuator power surge relay n. potential
|
80,56 EUR 83,95 EUR |
|||||||||||
|
( 95,87 EUR incl. VAT ) ≈ £67.11 | ≈ $88.37 plus delivery charges: 55,00 € |
|||||||||||
| Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline | |||||||||||
| In Stock: >25 pieces | |||||||||||
| Lieske Part No.: | 677245 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 30100030 | ||||||||||
| UPC/EAN: | 4010312300190 | ||||||||||
| Weight: | 0.066 kg | ||||||||||
| Type: | FSR61NP-230V | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Eltako 30100030:
Applications
This radio actuator is designed for use in intelligent building automation systems, particularly in residential and commercial buildings, where flexible and decentralized control of lighting and loads is required. It is suitable for applications such as dusk-to-dawn switches, motion detection, scene control, and as part of a radio network with bidirectional communication. The functionality can be combined with various sensors, including radio window-door contacts, radio outdoor light sensors FAH, and radio motion detectors FBH.
Functions and Equipment in Detail
The FSR61NP-230V features an upper and a lower rotary switch for configuring the operating mode. Using the upper rotary switch, the user can choose between the function ER (switching relay) and ESV (inrush current switch). When ESV is selected, an optional fallback delay of 2 to 120 minutes can be set. The position infinite activates the standard inrush current switch function ES without fallback delay, along with push-button continuous lighting and switch-off warning. Additionally, push-button continuous lighting and switch-off warning can be activated. When push-button continuous lighting is enabled, holding the button for longer than 1 second activates continuous lighting, which turns off automatically after 2 hours or can be manually deactivated by pressing the button. The switch-off warning is indicated by flickering of the lighting, starting approximately 30 seconds before automatic switch-off, occurring three times in increasingly shorter intervals. When both push-button continuous lighting and switch-off warning are activated, the continuous lighting turns off before the switch-off warning begins.
Technology Explained Simply
The radio actuator operates using encrypted radio, with bidirectional communication and repeater function optionally activatable. Every state change and incoming central control telegram is confirmed by a radio telegram, which can be learned into other actuators, controllers, or universal displays. Control is achieved via an internal antenna, allowing the radio actuator to also be controlled locally via a conventional 230V control switch. Glow lamp current is not permitted. The LED serves during operation to indicate radio control commands by brief flashing and supports the learning process according to the instruction manual.
Compatibility and Accessories
The FSR61NP-230V can be combined with encrypted sensors, radio window-door contacts, radio outdoor light sensors FAH, and radio motion detectors FBH. Up to 35 radio switches, including central control switches, can be learned via the upper rotary switch. Scene control allows multiple FSR61 units to be controlled via a single scene switch with double toggle, which has been learned in. When set to ER (switching relay), the lower rotary switch provides a safety and energy-saving function: if a switch-off command is not detected — for example, due to a stuck or too quickly operated switch — the relay automatically turns off after an adjustable time period of 2 to 120 seconds. This function is deactivated when an FTK (radio switch kit) is learned in.
Mounting and Installation
The radio actuator is designed for flush mounting and has dimensions of 45 mm (length) × 45 mm (width) × 33 mm (depth). Mounting is done in a suitable flush-mounted box, and electrical connections must be made in accordance with installation regulations. The automatic synchronization after installation must be awaited before connecting the connected load to the network.
Advantages in Operation
The FSR61NP-230V features a low standby loss of 0.8 W, enhancing energy efficiency. The fallback delay and switch-off warning provide additional safety and user-friendly functions. Bidirectional radio communication enables feedback of state changes, which is beneficial for integration into intelligent control systems. The combination of radio and conventional control offers flexibility during commissioning and use.
Functions, Technology, Standards
The radio actuator uses encrypted radio, bidirectional communication, and can function as a repeater. The fallback delay is adjustable, as are push-button continuous lighting and switch-off warning. Power supply is via 230V, and the switching capacity is 10A/250V AC. Flush mounting is intended, and dimensions are 45 mm × 45 mm × 33 mm. The LED indicator signals radio control commands and supports the learning process.
| General | |
| Switching power | 10 A/250V AC |
| Supply voltage | 230 V |
| Release-delay | 2 to 120 minutes |
| Push-button constant light | Switchable |
| Pre-warning of switching-off | Switchable |
| Stand-by loss | 0,8 Watt |
| Wireless technology | encrypted, bidirectional, Repeater |
| Switching type | non-isolated |
| LED function | Learning process, wireless control commands |
| Pre-programmed sensors | Wireless window/door contacts, FAH, FBH |
| Constant light duration | 2 hours |
| Switch-off warning duration | approx. 30 seconds |
| Safety function | automatic shutdown after 2–120 seconds if command not detected |
| Compatibility | Function key, central control key, FAH, FBH |
| Adjustable safety time | 2 to 120 Seconds |
| Neon lamp current | not approved |
| Radio telegram transmission | on state change and central control |
| Pre-programmed push-button count | up to 35 |
| Synchronization after installation | Automatic |
| LED indicator | |
| Panel mounting | |
| Scene control | |
| Central control unit | |
| Adjustable reset delay | |
