RS485 bus wireless AC meter, maximum current 65A, standby loss only 0.5 watts. Modular device for mounting on DIN-EN 60715 TH35 mounting rail. 1 division unit = 18mm wide, 58mm deep. Accuracy class B (1%). With RS485 interface. Connection to the Eltako RS485 bus. Cross-wiring of bus and power supply with jumper. The meter reading, the instantaneous power and the serial number are transferred to the bus - e.g. for forwarding to an external computer or Professional Smart Home Controller - and also sent to the wireless network via the FAM14. For this, it is necessary that the FAM14 wireless antenna module assigns a device address, as described in the operating instructions. The AC meter measures the active energy based on the current flowing between the input and the output. The internal consumption of only a maximum of 0.5 watts is not measured. Like all meters without a MID declaration of conformity, it is not approved for monetary electricity billing in Europe. An external conductor with a current of up to 65A can be connected. The starting current is 40mA. During operation, the rotary switch must be set to AUTO. The power consumption is indicated by a flashing LED. If the L input and L output were swapped when connecting, an HT/NT switchover telegram is sent every 20 seconds to indicate the connection error. If the expected load is more than 50%, a ventilation distance of 1/2 division unit must be maintained from devices installed next to it. For this purpose, the scope of delivery includes 2 DS14 spacers and, in addition to the short jumper, two further long jumpers.

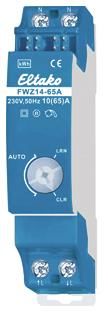

Type: FWZ14-65A
Questions & answers
What is the delivery time of Eltako 30014050 FWZ14-65A radio-AC, meter transmitter module ?
The article Eltako 30014050 FWZ14-65A radio-AC, meter transmitter module is currently
not in stock und muss auftragsbezogen bestellt werden.
According to our experience the article is ready for dispatch within 8 working days.
The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time.
Just send us an inquiry about the desired quantity of Eltako 30014050 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Eltako 30014050 FWZ14-65A radio-AC, meter transmitter module always at the best possible price. We can give you a discount of 2% on
Eltako 30014050 FWZ14-65A radio-AC, meter transmitter module if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduation prizes with every purchase. If you buy a minimum of 6 pieces of Eltako 30014050 FWZ14-65A radio-AC, meter transmitter module we can offer you a price of 78,84 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
