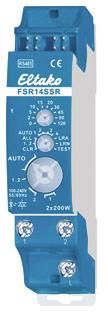

Eltako 30014020 FSR14SSR RS485 Bus Switching, 2 channels FSR14SSR

Silent impulse switching relay with 2 channels, 230V LED lamps up to 400W, incandescent lamps 400W. 2 solid-state relays not potential-free. Bidirectional. Standby loss only 0.1 watts. Modular device for mounting on DIN-EN 60715 TH35 mounting rail. 1 division unit = 18mm wide, 58mm deep. Connection to the Eltako RS485 bus. Cross-wiring bus and power supply with jumper. If both relays of the FSR14 are switched on, 0.4W is required. The nominal switching capacity of 400W applies to one contact and also as the sum of both contacts. Parallel connection of several devices to increase performance is permitted. From production week 12/17 with automatic electronic overtemperature shutdown. If the load is < 1W, a GLE must be connected in parallel to the load. If the supply voltage fails, it is switched off in a defined manner. The channels can be taught in independently of one another as ES and/or ER channels. Scene control: With one of the four control signals of a button with a double rocker that has been taught in as a scene button, several channels of one or more FSR14SSRs can be switched on or off for one scene each. Central commands can be sent with radio buttons and/or with a Professional Smart Home Controller. The buttons are taught in with the rotary switches and, if necessary, the 2 channels are tested. For normal operation, the middle and lower rotary switches are then set to AUTO. With the upper rotary switch, the EW time (0-120 seconds) for relays or the RV time (0-120 minutes) for impulse switches is set the same for all channels if necessary. If radio motion brightness sensors FBH (master) and/or FBH (slave) are taught in, the switching threshold at which the lighting switches on or off is set separately for each channel with the upper rotary switch. Settings for the upper rotary switch according to the operating instructions. If wireless brightness sensors are taught-in, the switching threshold at which the lighting switches on or off depending on the brightness is set separately for each channel using the upper rotary switch (from approx. 0 lux in position 0 to approx. 50 lux in position 120). A hysteresis of approx. 300 lux between switching on and off is fixed. An additional RV time set is ignored. Only one FBH (master) or FAH can be taught in per channel. However, one FBH (master) or FAH can be taught in to several channels. If wireless window-door contacts FTK or window handle sensors FFG7B are taught-in, different functions can be set using the middle rotary switch in positions AUTO 1 to AUTO 4 and a maximum of 116 FTKs can be linked: AUTO 1 = window closed, then output active. AUTO 2 = window open, then output active. In the AUTO 3 and AUTO 4 positions, the FTKs programmed on a channel are automatically linked. In AUTO 3, all FTKs must be closed for the working contact to close (e.g.for climate control). With AUTO 4, an open FTK is sufficient to close the working contact (e.g. for alarm signaling or switching on the power supply of an extractor hood). One or more FTKs can be programmed into several channels so that different functions are possible for each FTK at the same time. After a power failure, the link is re-established by a new signal from the FTK or with the next status message after 15 minutes. An additional RV time is ignored. Function with wireless smoke detectors FRW or water sensors according to the operating instructions. The LED under the upper rotary switch accompanies the programming process according to the operating instructions and indicates control commands during operation by flashing briefly.
Type: FSR14SSR
