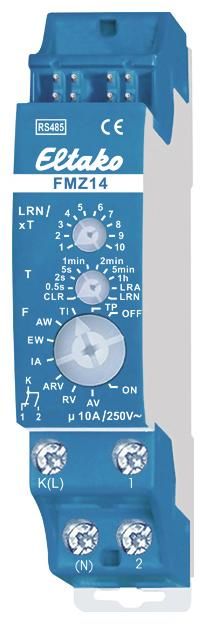

Multifunctional time relay with 10 functions, 1 changeover contact potential-free 10A/250V AC, 230V LED lamps up to 400W, incandescent lamps 2000W*, with DX technology. Bidirectional. Standby loss only 0.4 watts. Modular device for mounting on DIN-EN 60715 TH35 rail. 1 division unit = 18mm wide, 58mm deep. Connection to the Eltako RS485 bus. Cross-wiring of bus and power supply with jumper. Wireless window/door contacts (FTK) can be taught in with the function of normally open or normally closed when the window is open. If a direction button is taught in, a function (e.g. TI) can be started with the upper button (START) and stopped with the lower button (STOP). With the patented Eltako Duplex technology, the normally potential-free contacts can still switch at zero crossing when switching 230V AC 50Hz, thereby drastically reducing wear. To do this, simply connect the N conductor to terminal (N) and L to K(L). This results in an additional standby loss of just 0.1 watts. If the supply voltage fails, both contacts switch off. When the supply voltage returns, contact 1 closes. Times can be set between 0.5 seconds and 10 hours. The upper and middle rotary switches are used to teach in and then set the time. T is the time base and xT is the multiplier. The function is selected with the lower rotary switch: RV = release delay. AV = response delay. TI = clock generator starting with pulse. TP = clock generator starting with pause. IA = pulse-controlled response delay (e.g. automatic door opener). EW = pulse-on switch. AW = pulse-off switch. ARV = response and release delay. ON = permanently ON. OFF = permanently OFF. The LED under the upper rotary switch accompanies the programming process in accordance with the operating instructions and indicates control commands during operation by flashing briefly. * The maximum load can be used from a delay or cycle time of 5 minutes. For shorter times, the maximum load is reduced as follows: up to 2 seconds to 15%, up to 2 minutes to 30%, up to 5 minutes to 60%.
Type: FMZ14
Questions & answers
What is the delivery time of Eltako 30014009 FMZ14 RS485 bus switching, multi-function time relay FMZ14?
The article Eltako 30014009 FMZ14 RS485 bus switching, multi-function time relay FMZ14 is currently
not in stock und muss auftragsbezogen bestellt werden.
According to our experience the article is ready for dispatch within 8 working days.
The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time.
Just send us an inquiry about the desired quantity of Eltako 30014009 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Eltako 30014009 FMZ14 RS485 bus switching, multi-function time relay FMZ14 always at the best possible price. We can give you a discount of 2% on
Eltako 30014009 FMZ14 RS485 bus switching, multi-function time relay FMZ14 if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduation prizes with every purchase. If you buy a minimum of 10 pieces of Eltako 30014009 FMZ14 RS485 bus switching, multi-function time relay FMZ14 we can offer you a price of 53,20 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
