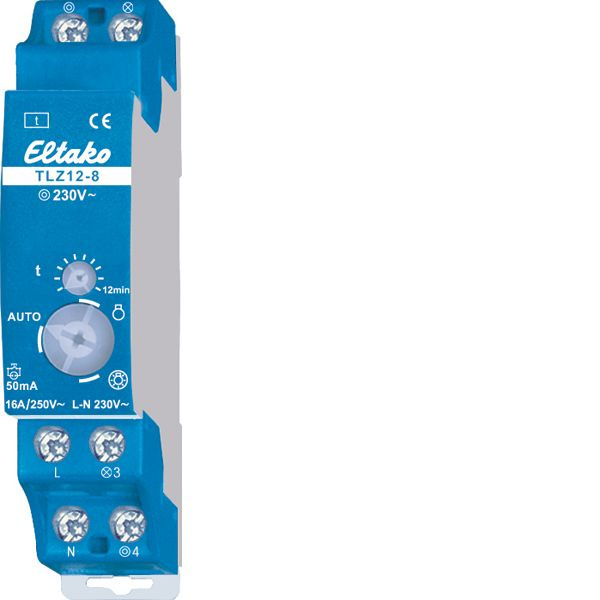

Eltako 23100934 TLZ12-8 staircase light timer 1NO without switch-off warning

Your rating:
Average rating
product review for Eltako 23100934 TLZ12-8 staircase light timer 1NO without switch-off warning
( 4.4 / 5 ) 36 ratings
Eltako 23100934
This image may differ from the desired article.
Eltako 23100934Eltako 23100934
39,27 EUR 40,93 EUR
( 46,73 EUR incl. VAT )
≈ £32.87  |  ≈ $43.16
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline
In Stock: >25 pieces
1x Eltako 23100934 TLZ12-8 staircase light timer 1NO without switch-off warning
Lieske Part No.:366303
Mfg Part No: 23100934
UPC/EAN: 4010312401637
Weight:0.123 kg
Type:TLZ12-8
Graduated prices net
From piecesPrice per pieces
1037,21 EUR
2535,15 EUR
5033,08 EUR
7531,02 EUR

Product information for Eltako 23100934:

The Eltako TLZ12-8 is a modular device for the automatic control of staircase and corridor lighting. It is a staircase light timer switch with a non-isolated closing contact for a maximum load of 16A/250V AC. The device is designed for mounting on a support rail according to DIN-EN 60715 TH35 and occupies a mounting unit of 18 mm width and 58 mm depth. It is suitable for controlling 230V LED lamps and energy-saving lamps (ESL) up to 100W, as well as incandescent lamps up to 2000W. The operating voltage is 230V, and the control, supply, and switching voltage is also 230V. The time setting is adjusted via a large rotary switch and can be varied between approximately 0.2 and 12 minutes. The device includes its own permanent lighting switch, allowing the lighting to be switched on permanently, independently of the timer function.

Applications

The TLZ12-8 is specifically designed for use in residential and commercial buildings where automatic switching off of lighting after a preset time is required. Typical applications include stairwells, corridors, attics, or basements, where manual switching off is often forgotten. The device is suitable for 3- and 4-wire circuits and can be installed in series. With a 4-wire circuit, it can be used for attic lighting. The automatic detection of the circuit type ensures the device functions correctly without requiring manual adjustment.

Functions and Equipment in Detail

The device features dual terminals for switches and lamps, enabling flexible installation—either top and bottom or bottom only. This allows adaptable installation into existing circuits. The contact switching occurs at zero crossing, which increases contact lifespan and minimizes disturbances in the power network. There is no switching-off warning, meaning the lighting is switched off without prior notice. The standby power loss is only 0.7 W, ensuring energy-efficient operation. The electronics are silent, enabling disturbance-free operation, unlike mechanical synchronous motors with gearboxes.

Technology Explained Simply

The non-isolated closing contact means the switch is directly connected to the mains voltage and does not have galvanic isolation. This is sufficient for most applications in building electrical systems and allows direct control of the load. The time setting from 0.2 to 12 minutes can be adjusted according to requirements, for example, for short lighting in a corridor or longer lighting in an attic. The automatic detection of circuit type recognizes whether a 3- or 4-wire circuit is present and adapts accordingly, without requiring manual configuration. The dual terminals offer installation flexibility, especially when the circuit already includes existing switches or lamps.

Compatibility and Accessories

The device is suitable for use with 230V LED lamps, energy-saving lamps up to 100W, and incandescent lamps up to 2000W. It can be used in 3- and 4-wire circuits and is suitable for series installation. Compatibility with attic lighting in 4-wire circuits expands application possibilities.

Mounting and Installation

Mounting is on a support rail according to DIN-EN 60715 TH35. The device occupies a mounting unit of 18 mm width and 58 mm depth. Installation requires no special tools or additional components. The dual terminals allow flexible connection options, with wiring possible either top and bottom or bottom only. Switching occurs at zero crossing, ensuring clean and disturbance-free switching.

Operational Advantages

The TLZ12-8 offers energy-efficient operation with a standby power loss of only 0.7 W. The silent electronics ensure disturbance-free operation, especially in living spaces. Automatic detection of circuit type and dual terminals increase installation flexibility. The time setting from 0.2 to 12 minutes allows application-specific adjustment. Zero-crossing switching extends contact lifespan and reduces network disturbances. The device is suitable for a variety of lighting types, including LED, ESL, and incandescent lamps.

Neon Lamp Current

The neon lamp current is up to 50mA, with the exact value depending on the ignition voltage of the neon lamp used. This is relevant when the device is used in circuits with neon lamps serving as signal or operational indicators.

Functions Without Additional Components

The device includes an integrated permanent lighting switch, allowing the lighting to be switched on permanently without requiring additional switches or modules. The timer function and permanent lighting function are independently available.

No Switching-Off Warning

The lighting is switched off without prior notice, meaning no optical or acoustic warning is given before switching off. This is sufficient for many applications in residential and commercial buildings, as lighting is often only needed for a short time.

Switching Type and Operating Voltage

Switching occurs at zero crossing, ensuring clean and disturbance-free switching. The operating voltage is 230V, which corresponds to the standard voltage in Germany. The control, supply, and switching voltage are identical and also amount to 230V.

General
Degree of protectionnon-isolated
Operating voltage230 V
Switching voltage230 V
Control voltage230 V
Maximum load16 A
Maximum voltage250 V AC
Time setting0.2 to 12 minutes
Neon lamp currentup to 50 mA
Stand-by loss0,7 W
Mounting methodDIN-EN 60715 TH35 mounting rail
Switching typeAt zero crossing
Pre-warning of switching-offNone
Double connectorsfor pushbuttons and lamps
Wiring systemautomatic detection of 3- and 4-wire
Compatibility230V-LED lamps, ESL up to 100W, incandescent lamps up to 2000W
ApplicationStair lighting, hallway lighting, attic lighting
Noise generationsilent
Pitch unit1 TE (18 mm)
