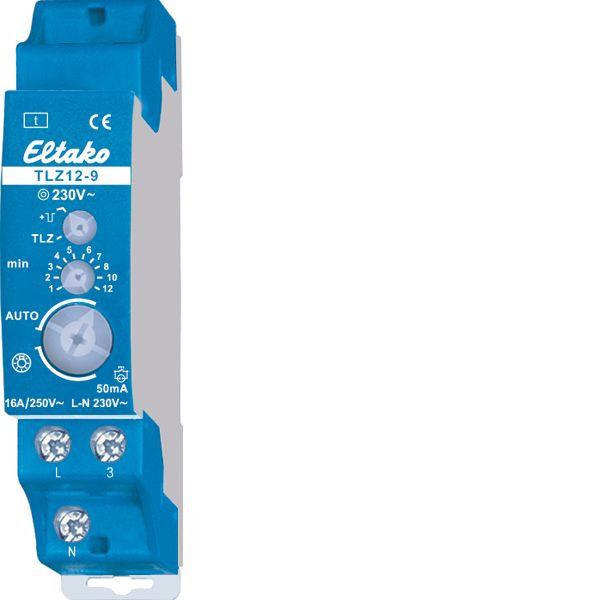

Eltako 23100836 TLZ12-9 staircase light timer switch 1NO with switch-off warning

Your rating:
Average rating
product review for Eltako 23100836 TLZ12-9 staircase light timer switch 1NO with switch-off warning
( 4.4 / 5 ) 17 ratings
Eltako 23100836
This image may differ from the desired article.
Eltako 23100836Eltako 23100836
58,10 EUR 60,55 EUR
( 69,14 EUR incl. VAT )
≈ £48.63  |  ≈ $63.85
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 5 workdaysinfo_outline
In Stock: >5 pieces
1x Eltako 23100836 TLZ12-9 staircase light timer switch 1NO with switch-off warning
Lieske Part No.:366305
Mfg Part No: 23100836
UPC/EAN: 4010312401620
Weight:0.123 kg
Type:TLZ12-9
Graduated prices net
From piecesPrice per pieces
655,49 EUR
1252,87 EUR
2450,26 EUR
3647,64 EUR

Product information for Eltako 23100836:

The Eltako TLZ12-9 is a modular device for controlling stairway and corridor lighting. It is a stairway light timer switch with a non-potential-free close contact, designed for mounting on a support rail according to DIN-EN 60715 TH35. The device is intended for use in existing electrical installations and serves for the automatic switching off of lighting fixtures after a preset time interval. It is specifically designed for 3-wire circuits, such as those commonly used for attic lighting, and cannot be connected in series.

Applications

The TLZ12-9 is suitable for controlling lighting in residential and commercial spaces, particularly in corridors, stairwells, and attics. It enables energy-saving operation, as the lighting is automatically switched off after the set time has elapsed. The maximum power consumption is 600W for 230V LED lamps, 200W for energy-saving lamps (ESL), and 2300W for incandescent lamps. The switching function is designed for an operating voltage of 230V, with control, supply, and switching voltage being identical.

Functions and Equipment in Detail

The device features a large rotary switch that serves as an independent permanent lighting switch and allows time setting from 1 to 12 minutes. The setting is adjusted in minute increments, enabling precise adaptation to the respective usage situation. The switch-off warning is optional and activates a flickering function: approximately 30 seconds before the end of the time interval, the lighting begins to flicker, three times in increasingly shorter intervals. This serves as a visual warning before the lighting is switched off. The contact switching occurs at zero crossing to extend the life of the contacts and the connected lamps.

Technology Explained Simply

The electronics of the TLZ12-9 are silent, in contrast to mechanical synchronous motors with gearboxes. The use of a bistable relay ensures that no coil power loss occurs in the switched-on state, thus avoiding unwanted heating. The standby power loss is only 0.7 watts, ensuring high energy efficiency. After installation, a short automatic synchronization is required, which must be waited for before connecting the consumer to the network. In the event of a power failure, the lighting is automatically switched back on, provided the time interval has not yet expired.

Compatibility and Accessories

The device is designed for 3-wire circuits and cannot be connected in series. It is exclusively intended for retrofitting existing installations. The maximum current consumption is 16A at 250V AC. The neon lamp current is up to 50mA, with the exact value depending on the ignition voltage of the neon lamp used.

Mounting and Installation

The TLZ12-9 is designed as a modular device and occupies a module width of 18mm and a depth of 58mm. Mounting is done on a DIN-EN 60715 TH35 support rail. Installation requires observing the automatic synchronization after installation before connecting the consumer.

Operational Advantages

The zero-crossing switching and the bistable relay increase the lifespan of the contacts and the connected lamps. The low standby power loss of 0.7 watts contributes to energy efficiency. The silent electronics ensure disturbance-free operation, especially in living spaces. The switch-off warning provides clear visual information before the lighting is switched off, which is particularly useful in stairwells or attics. The automatic reactivation after a power failure ensures continuous use, provided the time has not yet expired.

General
Degree of protectionnot specified
Switching power16 A
Switching voltage250 V AC
Operating voltage230 V
Time setting1 to 12 minutes
LED power600 W
ESL power200 W
Incandescent lamp power2300 W
Stand-by loss0,7 W
Neon lamp current50 mA
Mounting methodrack mounting on DIN rail DIN-EN 60715 TH35
Switching typenon-isolated
Switching behaviorAt zero crossing
Pre-warning of switching-offSwitchable
Relay typeBistable
Power failure behaviorautomatic re-energization if time period not yet expired
