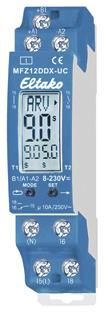

Eltako MFZ12DDX-UC multifunctional time relay 18 functions 1We 23001004

1 changeover contact potential-free 10A/250V AC, 230V LED lamps up to 200W, incandescent lamps 2000W*. Stand-by loss only 0.05-0.5 watts. Modular device for mounting on DIN-EN 60715 TH35 mounting rail. 1 division unit = 18mm wide, 58mm deep. With the patented Eltako Duplex technology (DX), the normally potential-free contacts can still switch at zero crossing when switching 230V AC 50Hz, thus drastically reducing wear. To do this, simply connect the N conductor to terminal (N) and L to 15(L). This results in an additional stand-by loss of only 0.1 watts. Universal control voltage 8..230V UC. Supply voltage same as the control voltage. Both the function and the times are entered at the touch of a button and shown digitally on an LC display. Only two buttons need to be operated for this. When setting the time, all values can be entered within the preselected time frames (0.1-9.9 or 1-99 seconds, minutes or hours). The longest time is 99 hours. 600 time settings are possible. The entered time(s) are constantly displayed digitally. By using a bistable relay, there is no coil power loss and no heating as a result, even when switched on. After installation, wait for the automatic short synchronization before connecting the switched consumer to the mains. Functions: RV = release delay. AV = response delay. AV+ = additive response delay. TI = clock generator starting with pulse. TP = clock generator starting with pause. IA = pulse-controlled response delay (e.g. automatic door opener). IF = pulse former. EW = pulse-on switch. AW = pulse-off switch. EAW = On and Off pulse. ARV = Response and release delay. ARV+ = Additive response and release delay. ES = Impulse switch. SRV = Impulse switch with release delay. ESV = Impulse switch with release delay and switch-off warning. ER = Relay. ON = Permanently ON. OFF = Permanently OFF. For the functions TI, TP, IA, EAW, ARV and ARV+, a different second time can be entered, also with a different time frame. Setting the times and functions: Press the MODE button to select the LCD element to be changed. The element currently being accessed flashes. Press the SET button to change the element currently being accessed. This can be the function, the time frame, the time T1 or the time T2 (only for TI, TP, IA, EAW, ARV and ARV+). Each entry is terminated with the MODE button. After the time has been set with MODE, no more elements flash - the time relay is ready for operation. The next time the MODE button is pressed, the input cycle starts again from the beginning; all set parameters are retained unless they are changed with SET.25 seconds after the last operation and if the element is still flashing, the input cycle is automatically ended and the previous changes are lost. Display functions of the LC display: If the ON or OFF functions have been selected, no time is shown, only ON or OFF and the contact symbol in the correct position. For all other functions, the set time(s), the function abbreviation and the contact symbol in the correct position open or closed are shown. While the time is running, the elapsed time flashes and the remaining time is displayed. Safety in the event of a power failure: The set parameters are saved in an EEPROM and are therefore immediately available again after a power failure. * The maximum load can be used from a delay or cycle time of 5 minutes. For shorter times, the maximum load is reduced as follows: Up to 2 seconds to 15%, up to 2 minutes to 30%, up to 5 minutes to 60%.
Type: MFZ12DDX-UC
