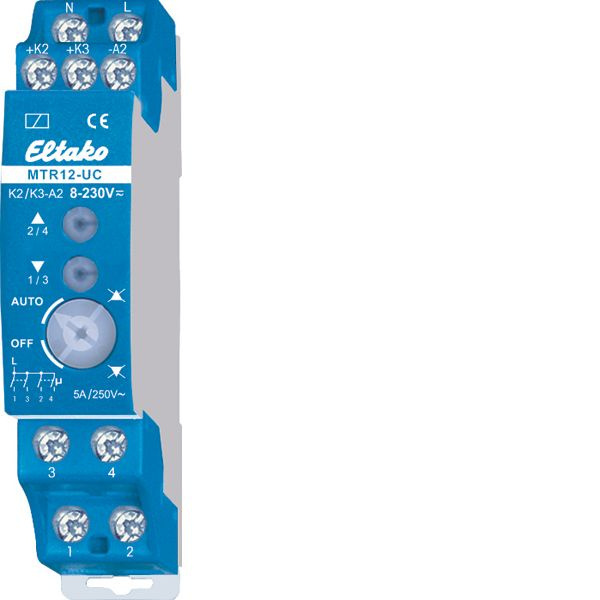

Eltako 22400601 MTR12-UC motor disconnect relay 2+2S potential-free

Your rating:
Average rating
product review for Eltako 22400601 MTR12-UC motor disconnect relay 2+2S potential-free
( 4.6 / 5 ) 31 ratings
Eltako 22400601
This image may differ from the desired article.
Eltako 22400601Eltako 22400601
74,72 EUR 77,86 EUR
( 88,92 EUR incl. VAT )
≈ £62.54  |  ≈ $82.12
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline
In Stock: >5 pieces
1x Eltako 22400601 MTR12-UC motor disconnect relay 2+2S potential-free
Lieske Part No.:560659
Mfg Part No: 22400601
UPC/EAN: 4010312205211
Weight:0.123 kg
Type:MTR12-UC
Graduated prices net
From piecesPrice per pieces
670,24 EUR
1265,75 EUR
2461,27 EUR
3656,79 EUR

Product information for Eltako 22400601:

The Eltako MTR12-UC is a motor disconnect relay for controlling up to two 230V tube motors in shading systems or roller shutter installations. It serves as a safety and disconnect unit to prevent back-voltage that can occur when motors are directly connected in parallel via end switches, which may lead to motor damage. The device is designed as a plug-in unit and is mounted on a support rail according to DIN-EN TH35. It features a universal control voltage of 8 to 230 V UC, allowing flexible use in various control systems. The supply voltage is 230 V, and the standby loss is maximum 0.5 W, ensuring energy-efficient operation.

Applications

The MTR12-UC is specifically designed for applications in building technology and automation systems where multiple shading elements or roller shutters are controlled via a central control system. It is used when more than one motor is to be controlled by an EGS12Z-UC or when the control voltage differs from the motor voltage. In such cases, one MTR12-UC is required for every two motors. The disconnect function protects motors from damage caused by back-voltage that may arise from uncontrolled parallel connection.

Functions and Equipment in Detail

The relay features two close contacts (1/2) for motor 1 and two close contacts (3/4) for motor 2, which are not potential-free. The contacts are rated for 5 A/250 V AC, sufficient for controlling standard tube motors. The Up" and "Down functions can be locked or completely deactivated via an integrated rotary switch. This lock affects only the connected motors and allows individual shading elements or roller shutters to be excluded from the automatic function of an overall control system without affecting the entire installation.

Technology Explained Simply

The universal control voltage of 8 to 230 V UC enables flexible integration into various control systems, regardless of the exact voltage of the control source. The supply voltage of 230 V is provided via the network. The contacts are not potential-free, meaning they are directly connected to the motor voltage. The disconnect function ensures that motors are not directly connected in parallel, but are controlled via the relay, thus avoiding back-voltage. The low standby power consumption of 0.5 W reduces energy usage in idle state.

Compatibility and Accessories

The MTR12-UC is compatible with the EGS12Z-UC, a control device for shading systems. When using multiple MTR12-UC devices in an installation, free contact outputs K2/K3 of the controlling EGS12Z-UC must be available. These are connected to terminals K2/K3 of the MTR12-UC to enable control of multiple motors. Parallel operation of multiple MTR12-UC devices is possible as long as the required contacts on the EGS12Z-UC are available.

Mounting and Installation

The device is designed as a plug-in unit and is mounted on a support rail according to DIN-EN TH35. Dimensions are 18 mm width (equivalent to one module width) and 58 mm depth. Mounting is performed on standard installation rails commonly used in electrical installations. The terminals are designed for direct connection to motors and control.

Advantages in Operation

The disconnect function extends the service life of connected motors by avoiding back-voltage. The flexible control via universal control voltage allows easy integration into existing systems. The ability to lock individual motors via the rotary switch provides additional flexibility when using shading systems. The low standby power consumption reduces energy usage in idle state, which is particularly beneficial in larger installations. Mounting on DIN rail enables standardized and quick installation in electrical installations.

Protection Rating and Operating Environment

The device is designed for indoor use and meets requirements for installation technology in buildings. It is not designed for outdoor use, as no specific protection rating such as IP67 is specified.

General
Degree of protectionnot specified
Operating voltage230 V
Control voltage8..230 V UC
Contact type2 + 2 Normally open contacts (NO) non-isolated
Contact rating5 A
Voltage category250 V AC
Stand-by loss0,5 W
Mounting methodrack-mounted device on mounting rail DIN-EN TH35
Pitch unit1 TE
Number of motors2 max.
CompatibilityEGS12Z-UC
Function lockoutRotary switch for up/down and switching off
