EdgeCore F0LEC2000204Z Switch L2 8x GE + 2x SFP, 4x PoE 65W, ECS2100-10PE

Your rating:
Average rating
product review for EdgeCore F0LEC2000204Z Switch L2 8x GE + 2x SFP, 4x PoE 65W, ECS2100-10PE
( 0 / 5 ) 0 ratings

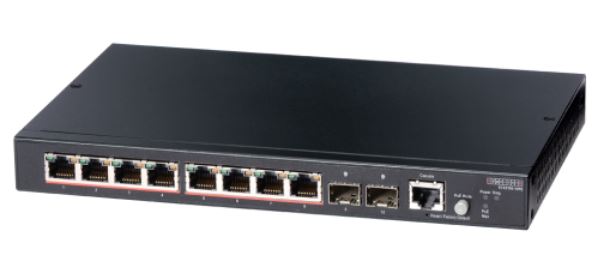

EdgeCore F0LEC2000204Z
This image may differ from the desired article.
232,42 EUR 232,42 EUR
( 276,58 EUR incl. VAT )
≈ £193.61  |  ≈ $254.96
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x EdgeCore F0LEC2000204Z Switch L2 8x GE + 2x SFP, 4x PoE 65W, ECS2100-10PE
Lieske Part No.:597297
Mfg Part No: F0LEC2000204Z
UPC/EAN: 4712687011212
Weight:3 kg

Product information for EdgeCore F0LEC2000204Z:

The EdgeCore Switch ECS2100-10PE is a Layer-2 network switch designed for use in small and medium-sized networks. It features a total of ten ports: eight ports with 10/100/1000Base-T technology for connecting end devices such as computers, printers, or IP cameras, and two Uplink ports with SFP socket for fiber optic or copper connections. Four of the eight Ethernet ports support PoE (Power over Ethernet) with a total power output of 65 W, enabling power supply to compatible devices via the network cable. This function is particularly useful for installing IP surveillance cameras, VoIP phones, or wireless access points in locations where no direct power supply is available.

Layer-2-Switch

The switch operates at Layer 2 of the OSI model architecture, meaning it forwards data packets based on MAC addresses. It supports basic network functions such as MAC address tables, port forwarding, and broadcast avoidance. Processing occurs without routing functions, making it suitable for simple network topologies where no IP address routing functions are required.

Einsatzbereiche

The ECS2100-10PE is suitable for office and commercial environments where reliable and cost-efficient network connectivity is needed. The PoE function enables decentralized installation of network devices without additional power supply. The combination of Ethernet ports and SFP Uplink ports offers flexibility in network design, for example, for connecting multiple switches or linking to a central router or core switch.

Funktionen und Ausstattung im Detail

The eight 10/100/1000Base-T ports enable data transfer rates of up to 1 Gbit/s per port. The four PoE ports deliver a total of 65 W of power, with power distribution varying according to device and requirements. The PoE technology (Power over Ethernet) reduces the need for separate power cables, simplifying installation and increasing flexibility. The two SFP Uplink ports support connections via fiber optic or copper cables, depending on the SFP transceiver modules used, enabling a scalable network architecture.

Technik verständlich erklärt

The designation 10/100/1000Base-T describes support for data transfer rates of 10 Mbit/s, 100 Mbit/s, and 1000 Mbit/s (1 Gbit/s) over twisted-pair cables (Category 5e or higher). The SFP ports (Small Form-factor Pluggable) are modular sockets into which various transceiver modules (e.g., for single-mode or multi-mode fiber) can be inserted according to requirements. PoE (Power over Ethernet) enables power supply via the existing network cable, facilitating the installation of devices in hard-to-reach or powerless locations.

Kompatibilität und Zubehör

The switch is compatible with standard network devices supporting 10/100/1000Base-T. The PoE function is compatible with devices supporting PoE standard specifications (such as IEEE 802.3af or 802.3at). The SFP ports require the use of SFP transceiver modules, which must be selected according to requirements (e.g., fiber, copper, range). The exact selection of modules depends on the network architecture and physical connection conditions.

Montage und Installation

The switch is designed for mounting in a 19-inch rack and can be screwed into standard rack systems. Installation is performed by connecting end devices to the Ethernet ports and establishing the Uplink connection via the SFP ports. The PoE ports can be directly connected to compatible devices, with power supply automatically provided via the network cable. No additional configuration steps are required, as the switch operates in plug-and-play mode by default.

Vorteile im Betrieb

Using the EdgeCore ECS2100-10PE reduces the complexity of network installation, especially through the PoE function, which minimizes the need for additional power supplies. The combination of Ethernet and SFP ports offers flexibility in network design. The Layer-2 functionality ensures reliable data transmission without additional routing load, optimizing network performance in simple topologies. The devices are designed for indoor use and do not require special environmental conditions.

General
Number of Ethernet ports8
Ethernet port type10/100/1000Base-T
Number of SFP ports2
PoE ports4
PoE total power65 W
Switch layer2
