EdgeCore ECS5500-12T Switch L2+ 8x 10G ports, 2x SFP+, 2x 10G uplink,

Your rating:
Average rating
product review for EdgeCore ECS5500-12T Switch L2+ 8x 10G ports, 2x SFP+, 2x 10G uplink,
( 0 / 5 ) 0 ratings

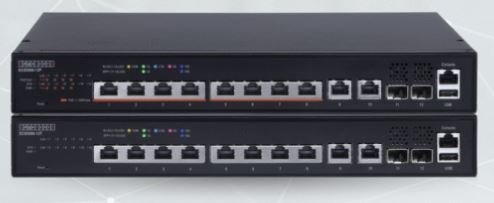

EdgeCore ECS5500-12T
This image may differ from the desired article.
664,56 EUR 664,56 EUR
( 790,83 EUR incl. VAT )
≈ £553.58  |  ≈ $729.02
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x EdgeCore ECS5500-12T Switch L2+ 8x 10G ports, 2x SFP+, 2x 10G uplink,
Lieske Part No.:597536
Mfg Part No: ECS5500-12T
Weight:3 kg

Product information for EdgeCore ECS5500-12T:

The EdgeCore ECS5500-12T is a Layer 2+ network switch designed for use in medium to large network infrastructures. It features 8 Multi-Gigabit RJ-45 ports supporting speeds of 1, 2.5, 5, or 10 Gigabit per second, as well as two 10G-RJ-45 ports and two SFP+ slots for connecting SFP+ modules. This combination enables flexible connection of various devices and a scalable network architecture. The switch is designed for use in 48,3 cm ( 19 inch ) racks and is delivered with a mounting kit that allows installation in standard rack systems.

Applications

The ECS5500-12T is suitable for use in enterprise networks, particularly in environments requiring high bandwidth and flexible port configuration. The support for 10G ports and SFP+ modules makes it appropriate for backbone connections, server connections, or as an aggregation switch in a campus network. The integrated support for VLANs, QoS, and LACP enables structured network management and optimized data transmission. The operating temperature range of -20°C to 55°C allows use in various environments, including industrial or outdoor areas, provided environmental conditions remain within the specified temperature range.

Functions and Equipment in Detail

The switch offers management functions via CLI (Console, Telnet), web interface, and SNMP, enabling flexible monitoring and configuration. It supports various Spanning-Tree protocols (STP, RSTP, MSTP) to prevent loops in the network. Support for IPv6, static routing, RIPv1/v2, and IGMP extends functionality to meet modern network requirements. QoS functions allow prioritization of data traffic to support critical applications such as VoIP or video streaming. VLAN functions enable logical segmentation of the network to improve security and management.

Technology Explained Simply

The 8 Multi-Gigabit RJ-45 ports support various speeds (1, 2.5, 5, 10 Gbit/s), allowing adaptation to different end devices. The two 10G-RJ-45 ports provide direct 10-Gigabit connections, ideal for servers or high-performance end devices. The two SFP+ slots allow use of SFP+ modules, which can be used for optical connections or longer copper connections. Power supply is via 100–240 V AC, enabling worldwide usability. The integrated support for LACP (Link Aggregation Control Protocol) allows combining multiple physical connections into a single logical link to increase bandwidth and redundancy.

Compatibility and Accessories

The switch is compatible with standard SFP+ modules, which can be inserted into the two SFP+ slots. Using SFP+ modules allows connection via fiber optic or copper, depending on the module type. The RJ-45 ports are suitable for standard network cables, with maximum speed varying based on cable quality and length. Management functions via CLI, web, and SNMP are compatible with common network management tools. Support for IPv6 and static routing also makes the switch suitable for environments based on modern IP protocols.

Mounting and Installation

The switch is designed for use in 48,3 cm ( 19 inch ) racks and is delivered with a mounting kit that enables rack installation. Installation is performed by attaching the mounting arms to the sides of the device and then inserting it into the rack. Power supply is via an external power supply unit, connected to the 100–240 V AC mains. Configuration is done via the provided management interfaces (CLI, web, SNMP), with exact procedures described in the manufacturer’s documentation.

Advantages in Operation

The ECS5500-12T offers high flexibility through the combination of Multi-Gigabit ports, 10G-RJ-45 ports, and SFP+ slots. Support for VLANs, QoS, and LACP enables efficient network management and optimized data transmission. Management functions via CLI, web, and SNMP provide multiple access options for administrators. The operating temperature range of -20°C to 55°C allows broad deployment. Power supply via 100–240 V AC ensures worldwide usability without additional adapters.

General
Number of RJ-45 ports8
RJ-45 port speeds1/2.5/5/10 Gbit/s
Number of 10G-RJ-45 ports2
Number of SFP+ slots2
LayerLayer 2+
Management interfacesCLI, Web, SNMP
Supported protocolsSTP, RSTP, MSTP, IPv6, VLAN, LACP, QoS, IGMP, static routing, RIPv1/v2
Current supply100-240 V AC
Operation temperature-20 to 55 °C
Scope of delivery19" mounting kit


Questions & answers

What is the delivery time of EdgeCore ECS5500-12T Switch L2+ 8x 10G ports, 2x SFP+, 2x 10G uplink, ?

The article EdgeCore ECS5500-12T Switch L2+ 8x 10G ports, 2x SFP+, 2x 10G uplink, is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of EdgeCore ECS5500-12T to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you EdgeCore ECS5500-12T Switch L2+ 8x 10G ports, 2x SFP+, 2x 10G uplink, always at the best possible price. We can give you a discount of 2% on EdgeCore ECS5500-12T Switch L2+ 8x 10G ports, 2x SFP+, 2x 10G uplink, if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
