EdgeCore Switch full manged 54 Port • 48 x 1Gbe • 6x 10G SFP+ • 48,3 cm ( 19 inch ) 1 HE • Datacenter Switch • Front-to-back • EPS122 • 4625-54T-O-AC-F content_copy

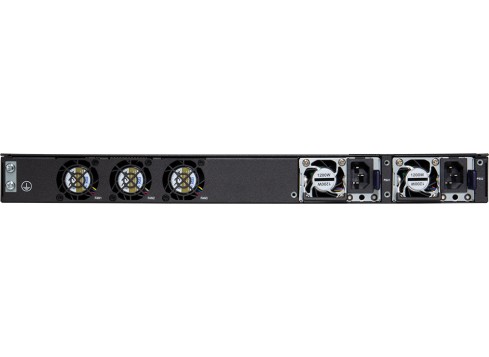

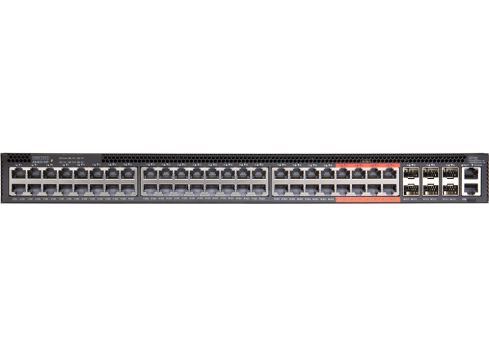

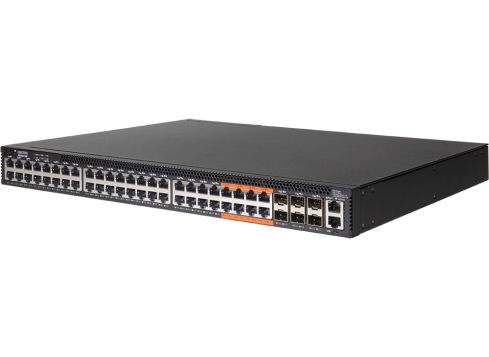

EdgeCore EPS122 • AS4625-54P, 48 x 10/100/1000BASE-T PoE, 6 x 10G SFP+, 40xPoE(30W) + 8xPoE(90W) capable ports with 1850W PoE power budget with 2 PSUs, 820W with only 1 PSU operating, Broadcom Trident3.X2 ASIC, Intel C3508 Quad-core CPU with COMe type 7 module, dual hot-swappable 1200W AC PSUs and 2+1 fixed Fan Modules with Front-to-Rear airflow, 2 front rack mounting ears, 3 years Hardware Warranty Features Easy-to-use entry level open networking switch with PoE capability, ideal for enterprise and campus access networking. Fully utilizing the existing Cat. 5/5e/6 cable infrastructure (90 W requires Cat6A Cabling). Full line-rate L2/L3 forwarding and switching. PoE capability able to power up enterprise, hospital, warehouse, and retail environments by connecting to security devices, Wi-Fi access points, IP phones, and IP cameras. 48 x 10/100/1000BASE-T RJ-45 ports. 6 x SFP+ uplink ports supporting 1GE/10GE. Ports 1 to 40 up to 30 W per-port. Ports 41 to 48 up to 90 W per-port. Intel® Atom® COMe module with C3508 4-Core 1.6GHz x86 processor. Support TPM 2.0 with SPI Interface. Options to enable UEFI Secure Boot. Full line-rate L2/L3 forwarding and switching. Hot-swappable, load-sharing, redundant AC PSUs. Fixed 2+1 redundant fans. Hardware switch pre-loaded with Open Network Install Environment (ONIE) for automated loading of compatible open source options and commercial NOS offerings Compatible Software Option Pica8 – PicOS SONiC
