Eaton 278455 ZB65-10 motor protection relay 6-10 A

Your rating:
Average rating
product review for Eaton 278455 ZB65-10 motor protection relay 6-10 A
( 4.4 / 5 ) 8 ratings

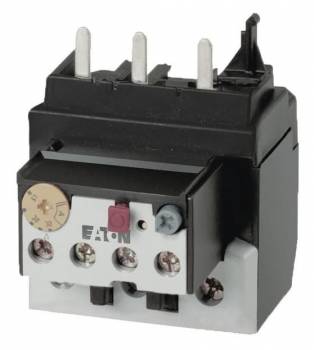

Eaton 278455
This image may differ from the desired article.
Eaton 278455Eaton 278455
94,75 EUR
incl. 1,08 EUR copper surcharge
( 112,75 EUR incl. VAT )
≈ £79.31  |  ≈ $104.13
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Eaton 278455 ZB65-10 motor protection relay 6-10 A
Lieske Part No.:470462
Mfg Part No: 278455
UPC/EAN: 4015082784553
Weight:0.241 kg
Type:ZB65-10
Graduated prices net
From piecesPrice per pieces
691,24 EUR
1287,72 EUR
2484,21 EUR
3680,70 EUR

Product information for Eaton 278455:

The ZB65-10 motor protection relay from Eaton is a modular component designed for use in industrial drive systems. It provides electrical protection for electric motors with rated currents between 6 and 10 amperes. The device is part of the ZB motor protection relay range up to 150 A and is mounted directly onto contactors or reversing contactors to protect the motor system against overload, phase loss, and other disturbances. The ZB65 size enables compact integration into existing control panels. The relay features a Test/Off button and a Reset button, which allows switching between manual and automatic operation. The free release ensures a safe reset of the relay after a tripping event.

Applications

The ZB65-10 motor protection relay is designed for use in industrial drive systems, particularly in combination with contactors and reversing contactors from the DILM40, DILM50, DILM65, DILM72, DILMF40, DILMF50, DILMF65, DIULM40, DIULM50, DIULM65, SDAINLM70, SDAINLM90, and SDAINLM115 series. It is used in applications where reliable motor monitoring is required, such as in manufacturing, process engineering, or machine building. The protection functions are especially important in continuous operation to prevent motor damage caused by thermal overload or phase loss.

Functions and Features in Detail

The relay offers integrated phase loss sensitivity in accordance with IEC/EN 60947 and VDE 0660 Part 102, meaning it responds to the failure of one or more phases in a three-phase power supply. The Test/Off button allows manual tripping of the relay to test its functionality. The Reset button enables resetting the relay after a tripping event, with the option to choose between manual and automatic operation. The free release ensures that the relay does not automatically reset after a tripping event, requiring manual reset to ensure safe operational resumption. The device includes an auxiliary contact consisting of one normally open (1 S) and one normally closed (1 Ö) contact, which can be used for additional control or signaling tasks.

Technology Explained Simply

The ZB65-10 motor protection relay monitors the current consumption of the connected motor and responds when the set rated current range of 6 to 10 A is exceeded. Upon detecting a fault such as overload or phase loss, it disconnects the motor to prevent damage. The integrated phase loss sensitivity detects when one or more phases in the three-phase network are missing, which can lead to uneven loading and motor damage. The auxiliary contacts (1 S + 1 Ö) can be used in control circuits to, for example, activate a warning light or trigger an alarm. Mounting is done directly onto the contactor, ensuring a compact and reliable installation.

Compatibility and Accessories

The relay is compatible with a wide range of contactors and reversing contactors from the DILM40, DILM50, DILM65, DILM72, DILMF40, DILMF50, DILMF65, DIULM40, DIULM50, DIULM65, SDAINLM70, SDAINLM90, and SDAINLM115 series. It can be combined with various accessories, such as unlocking buttons (e.g. M22-DZ-B, M22-DZ-B-GB14) or button plates (e.g. M22-XD-R-GB0, M22-XD-R-X0), to optimize operation and signaling. Combination with reversing contactors such as DIULM40/11 or DIULM65/11 enables use in drives with forward-reverse operation.

Mounting and Installation

Mounting is done directly onto the contactor or reversing contactor, with the ZB65 size enabling standardized fastening. Direct mounting ensures a stable mechanical connection and secure electrical connection. Installation is typically performed by professionals in electrical installation or drive technology. The terminal connections are designed for connection to the corresponding cables, with exact connection designations matching the respective contactor. Compliance with standards IEC/EN 60947, VDE 0660, UL, and CSA ensures the device is suitable for use in various markets and applications.

Operational Advantages

The ZB65-10 motor protection relay provides reliable protection for electric motors in the rated current range of 6 to 10 A. The integrated phase loss sensitivity and free release enhance operational safety. The auxiliary contacts allow expansion of control functions, for example, to signal tripping events. Direct mounting onto the contactor reduces space requirements and simplifies installation. Compatibility with a wide range of contactor types increases flexibility in system design. Compliance with international standards ensures reliability and safe operation in various application environments.

Protection Rating

The relay has a protection rating of IP00, meaning it offers no mechanical or electrical protection against touch, dust, or water. It is therefore intended for use in enclosed control enclosures, where it is protected from external influences. The IP00 classification is typical for modular components mounted in enclosed control systems and not directly exposed to the environment.

Standards and Regulations

The device complies with standards IEC/EN 60947, VDE 0660, UL, and CSA. These standards define requirements for electrical safety, operational safety, and functionality of switching devices. Certification under UL and CSA enables use in markets such as the USA and Canada. Compliance with these standards ensures the relay can be safely and reliably used in various industrial applications.

General
Rated current range6-10 A
Construction sizeZB65
Degree of protectionIP00
Phase failure sensitivityIEC/EN 60947, VDE 0660 Part 102
Auxiliary contacts Normally open (NO)1
Auxiliary contacts normally closed (NC)1
Mounting typeDirect mounting
Reset functionHand/Auto
CompatibilityDILM40, DILM50, DILM65, DILM72, DILMF40, DILMF50, DILMF65, DIULM40, DIULM50, DIULM65, SDAINLM70, SDAINLM90, SDAINLM115
Standards and regulationsIEC/EN 60947, VDE 0660, UL, CSA
Free releaseYes
Test/Off buttonYes


Please note...
This article contains a copper surcharge of 1,08 EUR. This depends on daily copper prices and weight of included copper. You can inquire the copper price via phone under +49 7666 884990
