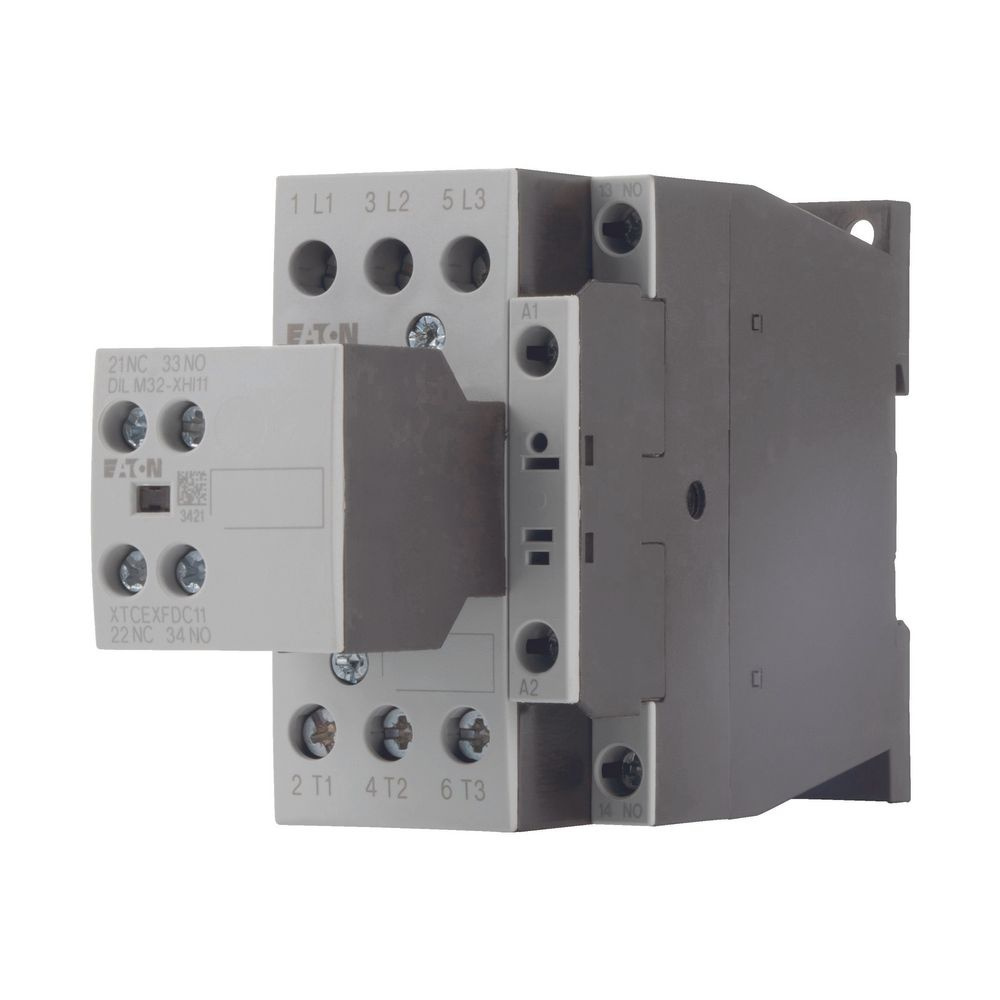

Eaton 277196 DILM25-21(230V50Hz 240V60Hz) power contactor 11kW/400VAC
|
142,46 EUR |
|||||||||||
|
incl. 1,18 EUR copper surcharge ( 169,53 EUR incl. VAT ) ≈ £119.24 | ≈ $156.56 plus delivery charges: 55,00 € |
|||||||||||
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |||||||||||
| Lieske Part No.: | 126216 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 277196 | ||||||||||
| UPC/EAN: | 4015082771966 | ||||||||||
| Weight: | 0.516 kg | ||||||||||
| Type: | DILM25-21(230V50HZ,240V60HZ) | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Eaton 277196:
Applications
This contactor is suitable for applications in industrial electrical engineering, particularly for operating squirrel-cage motors. It covers usage categories AC-1, AC-3, and AC-4. AC-1 includes non-inductive or slightly inductive loads such as resistance furnaces, while AC-3 is intended for starting and switching off motors during operation. AC-4 refers to more demanding operating modes such as starting, plugging, reversing, and inching. The device is also suitable for motors of efficiency class IE3, indicated by a logo on the packaging.
Functions and Equipment in Detail
The contactor has a rated operational current of 25 A for AC-3 operation at 380 V and 400 V. For AC-1 operation, the rated operational current corresponds to the conventional thermal current. The switching function is performed via a 3-pole main contact arrangement. Additionally, two auxiliary switches (2S+1Ö) are integrated, which can be used for controlling auxiliary functions such as signaling or feedback. The connection terminals are designed as screw terminals, ensuring a firm and secure connection.
Technology Explained Simply
The contactor is operated by a coil designed for an operating voltage of 230 V at 50 Hz and 240 V at 60 Hz. The coil generates a magnetic field that pulls the armature, thereby closing the main contacts. When the coil is de-energized, the armature returns to its initial position via spring force, opening the contacts. The switching function thus operates electromagnetically. The integrated auxiliary switches enable control of additional functions, such as indicating the switching state in a control system.
Compatibility and Accessories
The contactor can be combined with various accessories to extend its functionality. These include motor protection relays such as the ZB32-4 (2.4–4 A) or ZB32-1 (0.6–1 A), used for monitoring motor load and protecting against overload. Replacement coils for other voltages, such as DILM32-XSP(42V50Hz 48V60Hz) or DILM32-XSP(400V50Hz 440V60Hz), allow adaptation to different operating voltages. Varistors such as DILM32-XSPV48 or DILM32-XSPV500 serve as overvoltage protection. Auxiliary switches like DILM32-XHI11-S or parallel connectors such as DILM32-XP1 can be added to extend switching functions.
Mounting and Installation
Mounting is carried out in standard enclosures or control systems. The screw terminals allow for easy and secure connection of the wiring. The installation orientation is unrestricted, although environmental conditions such as temperature and humidity should comply with technical specifications. Installation must follow applicable regulations and standards for electrical installations.
Advantages in Operation
The contactor provides reliable switching performance under high loads and is designed for demanding operating conditions. The integration of auxiliary switches enables flexible control and feedback. Compatibility with various accessories expands application possibilities. Suitability for IE3 motors supports use in energy-efficient installations. The screw terminals ensure a stable connection that remains secure even under vibration.
| General | |
| Utility category | AC-1, AC-3, AC-4 |
| Rated operating current AC-3 | 25 A |
| Operating voltage | 230 V / 50 Hz, 240 V / 60 Hz |
| Connection system | Screw terminals |
| Number of main contacts | 3 way |
| Number of auxiliary switches | 2S+1Ö |
| Application range | motors, complete units >170 A |
| Energy efficiency class | IE3-capable |
Questions & answers
What is the delivery time of Eaton 277196 DILM25-21(230V50Hz 240V60Hz) power contactor 11kW/400VAC ?
The article Eaton 277196 DILM25-21(230V50Hz 240V60Hz) power contactor 11kW/400VAC is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Eaton 277196 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Eaton 277196 DILM25-21(230V50Hz 240V60Hz) power contactor 11kW/400VAC always at the best possible price. We can give you a discount of 2% on Eaton 277196 DILM25-21(230V50Hz 240V60Hz) power contactor 11kW/400VAC if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 5 pieces of Eaton 277196 DILM25-21(230V50Hz 240V60Hz) power contactor 11kW/400VAC we can offer you a price of 137,16 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
