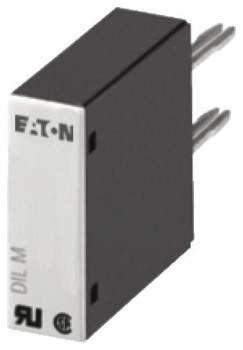

Eaton 281202 DILM32-XSPR48 RC protection circuit for DILM17..32
|
185,25 EUR 193,05 EUR |
|||||||||||
|
( 220,45 EUR incl. VAT ) ≈ £155.05 | ≈ $203.59 plus delivery charges: 55,00 € |
|||||||||||
| Delivery time from supplier's stock (ca.) 2 workdaysinfo_outline | |||||||||||
| Sales unit: 10 pieces | |||||||||||
| In Stock: 1 pieces | |||||||||||
| Lieske Part No.: | 539342 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 281202 | ||||||||||
| UPC/EAN: | 4015082812027 | ||||||||||
| Weight: | 0.123 kg | ||||||||||
| Type: | DILM32-XSPR48 | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Eaton 281202:
RC protection circuit
The term RC protection circuit refers to the electrical circuit used, consisting of a resistor (R) and a capacitor (C). This combination serves as an overvoltage absorber and smooths out voltage spikes generated during switching operations in inductive loads. The protection circuit is designed for an operating voltage range of 24 to 48 V AC, making it suitable for a wide range of control systems in industrial electrical engineering. The voltage range specification refers to the control voltage of the connected contactors.
Applications
The DILM32-XSPR48 is used in industrial plants where contactors are employed for operating motors, capacitors, or other inductive loads. It is particularly suitable for applications where switching operations can generate high overvoltages, such as when switching three-phase motors or controlling capacitors in power factor correction systems. The protection circuit is typically connected directly to the control terminals of the contactors, without requiring additional mounting or connection components.
Functions and equipment in detail
The protection circuit operates passively and requires no additional power supply. It automatically responds to voltage spikes generated by switching inductive loads and diverts them through the RC filter. The components used are designed for industrial use and offer high reliability under operating conditions. The protection circuit is compact and can be directly connected to the control terminals of the contactors, eliminating the need for additional mounting work.
Technology explained simply
The RC protection circuit functions according to the principle of voltage limitation. When a contactor interrupts an inductive load circuit, a high voltage spike is generated due to self-induction. This voltage spike is absorbed by the RC circuit: the capacitor temporarily stores the energy, and the resistor limits the current flow, thereby dissipating the voltage spike. This extends the service life of the switching devices and increases the reliability of the system. The protection circuit is designed for an operating voltage of 24 to 48 V AC, making it suitable for most industrial control systems.
Compatibility and accessories
The DILM32-XSPR48 is specifically designed for contactor types DILM17 to DILM32, DILK12 to DILK25, DILL. as well as DILMP32 to DILMP45. These contactors are commonly used in industrial electrical engineering, for example, for controlling three-phase motors or switching capacitors in power factor correction systems. The protection circuit is not intended for other contactor types not listed in the compatibility list. Suitable accessories offered in the same product line include, for example, contactors for three-phase capacitors with various rated capacities (e.g. 12.5 kVAR, 20 kVAR, 25 kVAR) as well as SD contactors for motors with powers from 15 kW to 30 kW at 400 V AC. These accessories can be used in combination with the RC protection circuit to create a complete switching system.
Mounting and installation
The installation of the DILM32-XSPR48 is carried out by direct connection to the control terminals of the respective contactor. No additional mounting elements or tools are required. The protection circuit is typically connected in parallel to the control winding of the contactor, with the exact connection method following the technical documentation of the respective contactor type. Installation is carried out as part of standard electrical installation and requires no special conditions regarding ambient temperature or humidity.
Advantages in operation
The use of the DILM32-XSPR48 leads to an extended service life of switching devices, as sensitive semiconductor components are protected against overvoltages. This reduces maintenance costs and increases the operational safety of the system. The protection circuit is maintenance-free and does not require regular inspection. The compact design enables easy integration into existing switching systems without additional space requirements.
The item price shown refers to 10 pieces Eaton 281202
| General | |
| Degree of protection | RC protection circuit |
| Operating voltage | 24 - 48 V AC |
| Suitable for | DILM17 - DILM32, DILK12 - DILK25, DILL., DILMP32 - DILMP45 |
Questions & answers
What is the delivery time of Eaton 281202 DILM32-XSPR48 RC protection circuit for DILM17..32 ?
The article Eaton 281202 DILM32-XSPR48 RC protection circuit for DILM17..32 is currently in stock
According to our experience the article is ready for dispatch within 2 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Eaton 281202 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Eaton 281202 DILM32-XSPR48 RC protection circuit for DILM17..32 always at the best possible price. We can give you a discount of 2% on Eaton 281202 DILM32-XSPR48 RC protection circuit for DILM17..32 if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 5 pieces of Eaton 281202 DILM32-XSPR48 RC protection circuit for DILM17..32 we can offer you a price of 179,69 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
How many units does the article contain?
Eaton 281202 DILM32-XSPR48 RC protection circuit for DILM17..32 is offered by us in a sales unit of 10 pieces If you need a larger quantity, you can contact us at any time. We will make a special offer for you
