Eaton 278474 ZB65-XEZ single installation motor protection relay

Your rating:
Average rating
product review for Eaton 278474 ZB65-XEZ single installation motor protection relay
( 4.6 / 5 ) 9 ratings

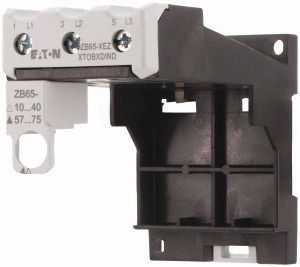

Eaton 278474
This image may differ from the desired article.
Eaton 278474Eaton 278474
44,19 EUR 46,05 EUR
( 52,59 EUR incl. VAT )
≈ £36.99  |  ≈ $48.56
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 5 workdaysinfo_outline
Sales unit: 2 pieces
In Stock: >10 pieces
1x Eaton 278474 ZB65-XEZ single installation motor protection relay
Lieske Part No.:365791
Mfg Part No: 278474
UPC/EAN: 4015082784744
Weight:0.342 kg
Type:ZB65-XEZ
Graduated prices net
From piecesPrice per pieces
1042,53 EUR
2540,88 EUR
5039,22 EUR
7537,56 EUR

Product information for Eaton 278474:

The article ZB65-XEZ from Eaton is a plinth for individual mounting of motor protection relays of size ZB65. It serves as a mounting base for individual motor protection relays in industrial applications, particularly in control panels, where a clear and accessible arrangement of components is required. The plinth enables secure and standardized fixation of the relays, ensuring easy installation, maintenance, and replaceability. It is specifically designed for size ZB65, which is used in many industrial applications for motor monitoring and protection functions.

Applications

The ZB65-XEZ plinth is used in industrial electrical installations where motor protection relays must be mounted individually. This includes, for example, plants in the manufacturing industry, process engineering, or energy supply, where the reliability of motor control is crucial. It is suitable for use in enclosures and distribution boxes, where modular and structured mounting is required.

Functions and Equipment in Detail

The plinth is designed for individual mounting, meaning it is intended for mounting a single motor protection relay of size ZB65. It provides a stable mounting option that dampens mechanical stress caused by vibrations or oscillations during operation. The design ensures that the electrical connections of the relay are securely and correctly positioned, guaranteeing a reliable electrical connection. Mounting typically occurs in standard control panels or enclosures, with the exact mounting technique depending on the specific installation.

Technology Explained Simply

The ZB65-XEZ plinth is a mechanical component that does not perform any electrical function but exclusively enables the physical mounting of a motor protection relay. It is made from a robust material that meets the requirements of industrial environments. Size ZB65 is a standard format for motor protection relays, specifying defined dimensions and connection geometry. The plinth is designed to fit this geometry exactly, allowing the relay to be mounted securely without additional adapters. Individual mounting means it is not designed for multiple relays simultaneously, but only for a single device.

Compatibility and Accessories

The plinth is specifically designed for motor protection relays of size ZB65. Compatible relay models include, for example, types ZB65-10, ZB65-16, ZB65-24, ZB65-40, ZB65-57, ZB65-65, and ZB65-75, each designed for different rated currents. These relays can be mounted directly onto the plinth, with the relay's electrical connections linked to the corresponding terminals or connection points in the enclosure. The combination of plinth and relay enables a modular and flexible system configuration that can be adapted to specific requirements.

Mounting and Installation

The plinth is mounted in a suitable enclosure or control panel. It is typically secured to the panel wall using screws or a similar mounting technique. After mounting the plinth, the motor protection relay is placed onto it and mechanically fixed, with the relay's electrical connections wired to the corresponding conductors. The exact mounting instructions depend on the specific installation and local regulations. It is important that electrical connections are made correctly and securely to ensure reliable operation of the motor protection relay.

Advantages in Operation

Using the ZB65-XEZ plinth offers several advantages in industrial operation. It enables structured and clear mounting of motor protection relays, simplifying maintenance and servicing. Individual mounting reduces the risk of incorrect connections, as each relay is clearly identifiable and accessible. Additionally, the relay can be quickly replaced if needed, without affecting the entire circuit or other components. The standardization of size ZB65 ensures high compatibility with various relay models, simplifying planning and component replacement.

The item price shown refers to 2 pieces Eaton 278474
General
Product typeSocket for individual installation
Compatibilitymotor protection relay size ZB65
ManufacturerEaton


Questions & answers

What is the delivery time of Eaton 278474 ZB65-XEZ single installation motor protection relay ?

The article Eaton 278474 ZB65-XEZ single installation motor protection relay is currently in stock

According to our experience the article is ready for dispatch within 5 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Eaton 278474 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Eaton 278474 ZB65-XEZ single installation motor protection relay always at the best possible price. We can give you a discount of 2% on Eaton 278474 ZB65-XEZ single installation motor protection relay if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 10 pieces of Eaton 278474 ZB65-XEZ single installation motor protection relay we can offer you a price of 42,53 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.

How many units does the article contain?

Eaton 278474 ZB65-XEZ single installation motor protection relay is offered by us in a sales unit of 2 pieces If you need a larger quantity, you can contact us at any time. We will make a special offer for you
