Eaton 207145 T0-1-8200/I1/SVB main switch assembly

Your rating:
Average rating
product review for Eaton 207145 T0-1-8200/I1/SVB main switch assembly
( 4.7 / 5 ) 6 ratings

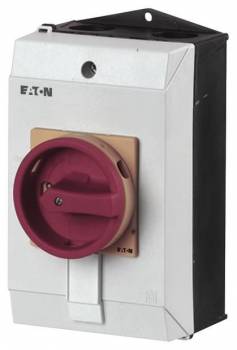

Eaton 207145
This image may differ from the desired article.
Eaton 207145Eaton 207145Eaton 207145Eaton 207145Eaton 207145Eaton 207145Eaton 207145Eaton 207145Eaton 207145Eaton 207145Eaton 207145Eaton 207145
56,23 EUR 56,25 EUR
( 66,91 EUR incl. VAT )
≈ £47.06  |  ≈ $61.80
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 2 workdaysinfo_outline
In Stock: >5 pieces
1x Eaton 207145 T0-1-8200/I1/SVB main switch assembly
Datasheet:file_download Download
Lieske Part No.:355789
Mfg Part No: 207145
UPC/EAN: 4015082071455
Weight:0.332 kg
Type:T0-1-8200/I1/SVB
Graduated prices net
From piecesPrice per pieces
654,54 EUR
1252,86 EUR
2451,17 EUR
3649,48 EUR

Product information for Eaton 207145:

The article from Eaton, type T0-1-8200/I1/SVB, is a toggle switch of the T0 group, designed as a main switch, maintenance switch, or repair switch. It is used for safe disconnection of power in industrial installations and features an EMERGENCY STOP function, visually indicated by a red rotary handle and a yellow locking ring. The switch position 0 (Off) is lockable, preventing unintended reactivation. The design is intended for surface mounting, with dimensions of 80 mm (width), 110 mm (depth), and 137 mm (height). The protection rating IP65 ensures protection against dust and splashing water, making the switch suitable for use in harsh environments, such as in industry or outdoor applications. The operating temperature ranges from -25 °C to 40 °C.

Applications
This switch is intended for use in industrial installations, machine controls, and power distribution systems. It functions as a switch disconnector in accordance with IEC/EN 60947-3 and enables safe disconnection of electrical power, particularly during maintenance or repair work. The integrated EMERGENCY STOP function makes it especially suitable for installations where immediate shutdown in an emergency is required, for example in manufacturing industry or with movable machinery. The switching angle of 90 ° ensures clear and unambiguous operation.

Functions and Equipment in Detail
The switch is 1-pole (1P) and has a rated service current of Iu = 20 A. The rated operational power is 5.5 kW at AC-23A, 50–60 Hz, and 400 V. These values define the maximum electrical load the switch can safely switch and disconnect. The locking in position 0 (Off) ensures the switch cannot be accidentally turned on, enhancing safety during maintenance work. The color scheme with a red handle and yellow locking ring corresponds to common safety colors and supports visual recognition.

Technology Explained Simply
The switch operates as a mechanical switch disconnector, interrupting the power supply to an electrical installation. The switching function is performed via a toggle mechanism operated by the rotary handle. The IP65 protection rating means the switch is dust-tight and protected against splashing water, making it suitable for locations with increased contamination or moisture exposure. Standards IEC/EN 60947, VDE 0660, and IEC/EN 60204 ensure compliance with international safety and functional standards.

Compatibility and Accessories
Various accessories are available for this switch to extend its functionality. These include insulating housing (e.g. CI-K2-T3-2, CI-K1-T0-4), which protects the switch from mechanical impacts, and additional front shields (e.g. ZFS60-T0, ZFS61/62-P3) for function identification. Knob handles (e.g. KNB-T0, SVB-P3) improve operability or allow integration of padlocks. A maintenance key (KNK-T0) can be used to lock the operation. Additionally, neutral conductor terminals (e.g. K-CI-K4) and conversion kits (e.g. V/EA/SVB-SW-T5) are available to adapt the switch to specific requirements.

Mounting and Installation
Mounting is done via surface mounting, with the specified dimensions (80 mm × 110 mm × 137 mm) aligned to mounting holes and placement in control panels or machine fronts. Installation requires securing to a suitable base, with electrical connections made according to standards and circuit diagram specifications. The locking in position 0 (Off) must be considered during installation to ensure the safety function is maintained.

Advantages in Operation
The switch offers clear, visually recognizable operation through its color coding and mechanical locking in the off position. The IP65 protection rating increases operational safety in harsh environments. Compliance with standards IEC/EN 60947 and IEC/EN 60204 ensures reliability and compatibility with other components in industrial installations. The rated values of 20 A and 5.5 kW allow use in a wide range of applications without requiring additional protective measures. The combinability with various accessories enables flexible adaptation to specific requirements.

Features
TypeToggle switch
Number of poles1P
Product colourRed, White, Yellow
International Protection (IP) codeIP65
Built-in displayNo
Operational conditions
Operating temperature (T-T)-25 - 40 °C
Weight & dimensions
Width80 mm
Depth110 mm
Height137 mm


Product data sheet
Datasheet for Eaton 207145, EAN: 4015082071455

Questions & answers

What is the delivery time of Eaton 207145 T0-1-8200/I1/SVB main switch assembly ?

The article Eaton 207145 T0-1-8200/I1/SVB main switch assembly is currently in stock

According to our experience the article is ready for dispatch within 2 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Eaton 207145 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Eaton 207145 T0-1-8200/I1/SVB main switch assembly always at the best possible price. We can give you a discount of 2% on Eaton 207145 T0-1-8200/I1/SVB main switch assembly if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 6 pieces of Eaton 207145 T0-1-8200/I1/SVB main switch assembly we can offer you a price of 54,54 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
