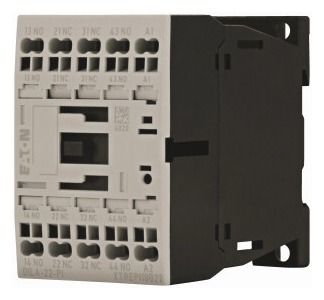

Eaton 199218 DILA-22(24VDC)-PI auxiliary contactor 24 VDC 2 S 2 Ö push-in terminals
|
64,17 EUR |
|||||||||||
|
incl. 0,97 EUR copper surcharge ( 76,36 EUR incl. VAT ) ≈ £53.71 | ≈ $70.52 plus delivery charges: 55,00 € |
|||||||||||
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |||||||||||
| Lieske Part No.: | 2050513 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 199218 | ||||||||||
| UPC/EAN: | 4015081973026 | ||||||||||
| Weight: | 0.3 kg | ||||||||||
| Type: | DILA-22(24VDC)-PI | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Eaton 199218:
Auxiliary contactor is the product type, specifically developed to support main power switches or relays in control circuits. It performs auxiliary functions such as signaling switching states, triggering alarm signals, or controlling secondary functions in a system. Actuation is via a 24 V DC voltage, which is a standard value in industrial automation, particularly in control systems with PLCs or SPS systems.
Push-in terminals enable quick and reliable wire connections. The terminals are designed so that the wire is simply inserted into the terminal and secured by a spring mechanism. This reduces installation time and minimizes wiring errors. The terminals are designed for industrial environments and ensure a stable electrical connection.
The protection rating IP20 means the device is protected against contact with fingers and against solid foreign objects larger than 12.5 mm. It is not waterproof and not intended for outdoor use or in damp environments. Protection rating IP20 is typical for devices mounted in enclosed enclosures or in dry indoor spaces.
The device is rated for a nominal operating current AC-15 of 4 A, regardless of voltage level (220 V, 230 V, 240 V or 380 V, 400 V, 415 V). This value refers to the maximum permissible current load on the contacts under alternating voltage and is critical for selecting the device based on the load to be switched. The contacts are designed for switching loads in control and auxiliary current circuits, not for main power applications.
Combinable with auxiliary switch module DILA-XHI(V).-PI – the device can be expanded with additional auxiliary switch modules to increase the number of contacts or integrate special functions such as latch release or time delay. The combination is achieved through mechanical and electrical connection of the modules, with code number 22E identifying the specific combination version.
In industrial plants, the DILA-22(24VDC)-PI is frequently used in control systems, where it serves as an auxiliary relay for signal transmission, status indication, or logic interconnection. It is compatible with other components of the DILA series, such as time modules, test cubes, or additional auxiliary switch modules, which are listed in the accessories section. Using these modules extends the functionality of the base unit and enables modular adaptation to specific requirements.
Installation is carried out in standard enclosures, where push-in terminals enable quick and secure wiring. The devices are designed for industrial environments without special conditions such as high humidity, dust, or aggressive chemicals. The operating voltage of 24 V DC is widely used in automation technology and allows easy integration into existing control systems.
In operation, the device is characterized by high reliability and low maintenance requirements. The contacts are designed for a high number of switching cycles, ensuring long service life and stable performance. The use of push-in terminals reduces installation error susceptibility and facilitates maintenance.
| General | |
| Product type | Auxiliary contactor |
| Manufacturer | Eaton |
| Actuation voltage | 24 V DC |
| Type of current | DC operation |
| Connection system | Push-in terminals |
| Contacts Normally open (NO) | 2 S |
| Contacts Normally closed (NC) | 2 O |
| Rated operational current AC-15 | 4 A |
| Voltage range AC-15 | 220 V, 230 V, 240 V, 380 V, 400 V, 415 V |
| Degree of protection | IP20 |
| Combinable with | DILA-XHI(V).-PI |
| Code number | 22E |
| Contact numbers | according to EN 50011 |
| Coil terminal markings | in accordance with EN 50005 |
Questions & answers
What is the delivery time of Eaton 199218 DILA-22(24VDC)-PI auxiliary contactor 24 VDC 2 S 2 Ö push-in terminals ?
The article Eaton 199218 DILA-22(24VDC)-PI auxiliary contactor 24 VDC 2 S 2 Ö push-in terminals is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Eaton 199218 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Eaton 199218 DILA-22(24VDC)-PI auxiliary contactor 24 VDC 2 S 2 Ö push-in terminals always at the best possible price. We can give you a discount of 2% on Eaton 199218 DILA-22(24VDC)-PI auxiliary contactor 24 VDC 2 S 2 Ö push-in terminals if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 6 pieces of Eaton 199218 DILA-22(24VDC)-PI auxiliary contactor 24 VDC 2 S 2 Ö push-in terminals we can offer you a price of 61,80 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
