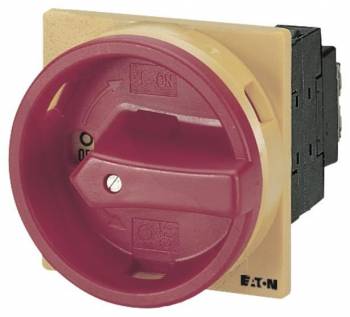

Eaton 091078 T0-1-102/EA/SVB main switch for installation

Your rating:
Average rating
product review for Eaton 091078 T0-1-102/EA/SVB main switch for installation
( 4.6 / 5 ) 5 ratings
Eaton 091078
This image may differ from the desired article.
Eaton 091078Eaton 091078Eaton 091078
52,81 EUR 52,84 EUR
( 62,84 EUR incl. VAT )
≈ £44.20  |  ≈ $58.04
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline
In Stock: >10 pieces
1x Eaton 091078 T0-1-102/EA/SVB main switch for installation
Datasheet:file_download Download
Lieske Part No.:403036
Mfg Part No: 091078
UPC/EAN: 4015080910787
Weight:0.177 kg
Type:T0-1-102/EA/SVB
Graduated prices net
From piecesPrice per pieces
650,83 EUR
1248,85 EUR
2446,87 EUR
3644,89 EUR

Product information for Eaton 091078:

The Eaton main switch type T0-1-102/EA/SVB is a 2-pole switch disconnector for installation in distribution systems and machine controls. It serves as a safety component in the operation of electrical installations, particularly as a main switch, maintenance switch or repair switch. The switch features an EMERGENCY STOP function and is equipped with a red rotary handle and a yellow locking ring, which enhances visual recognisability and operability during operation. The switching movement takes place over an angle of 90°, ensuring clear and unambiguous positioning in the operating states On" and "Off.

Applications

The switch is designed for use in industrial plants, machine controls and distribution systems where safe disconnection of electrical power is required. It is frequently used in production plants, conveyor technology or machines with emergency shut-off functions. The locking device enables secure locking in position 0 (Off), supporting the safety of workstations during maintenance or repair work. The front side of the switch is rated IP65, which is dust-tight and splash-proof, making it suitable for use outdoors or in damp environments.

Functions and equipment in detail

The switch is 2-pole and enables disconnection of two conductors, which is necessary for the safe switching off of electrical installations. The rated continuous current is 20 A, making it suitable for applications with medium loads. The rated operational power at AC-23A, 50–60 Hz and 400 V is 5.5 kW, indicating the maximum power the switch can safely switch. The EMERGENCY STOP function enables immediate switching off in an emergency, with the red rotary handle visually highlighting the function. The yellow locking ring serves as additional identification and can be used to prevent unintended operation.

Technology explained simply

The switch operates in accordance with standards IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA and UL, confirming compliance with international safety and quality standards. The IP65 protection rating means the front side of the switch is dust-tight and protected against splashing water, making it suitable for locations with increased contamination or moisture exposure. The operating temperature ranges from -25 °C to +50 °C, allowing use in environments with varying climatic conditions.

Compatibility and accessories

Various accessories are available for this switch to extend its functionality. These include insulating housing units such as CI-K4-T5B-4 or CI-K2-T3-5, which provide additional protection for the switch. Cylinder lock locks such as SVA(*)-T3 or SVA-SOND-KMS(*)-T3 enable mechanical locking to prevent unauthorised access. Additionally, insert plates such as BS84X24-P3 or BS45X14-T0 are available to customise labelling. Locking components such as UV-T0 or distribution mounting kits such as IVS-T0 support integration into existing systems. Additional front plates such as ZFS68-T0, ZFS75-T0 or ZFS77-T0 offer regional labelling (e.g. Italian, Spanish) or special functions such as opening only in position 0. Combining the switch with a knob handle such as KNB-RT-T0 or a cover hood such as H3-T0 can further improve operability and safety.

Mounting and installation

The switch is designed for installation in distribution units or machine constructions. Mounting is typically done by securing it in a suitable housing or distribution box. The locking device in position 0 (Off) requires consideration of mechanical locking options during installation to ensure the safety function.

Advantages in operation

The switch offers clear visual identification through the colours red and yellow, which facilitates operation during use. The EMERGENCY STOP function enables rapid switching off in an emergency, increasing operator safety. The locking in position 0 (Off) supports safety during maintenance work. The IP65 protection rating ensures high environmental resistance, and compliance with international standards guarantees safe and reliable operation. The rated values of 20 A and 5.5 kW make the switch suitable for a wide range of industrial applications.

Features
Number of poles2P
Product colourRed, Yellow
Operational conditions
Operating temperature (T-T)-25 - 50 °C


Product data sheet
Datasheet for Eaton 091078, EAN: 4015080910787

Questions & answers

What is the delivery time of Eaton 091078 T0-1-102/EA/SVB main switch for installation ?

The article Eaton 091078 T0-1-102/EA/SVB main switch for installation is currently in stock

According to our experience the article is ready for dispatch within 3 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Eaton 091078 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Eaton 091078 T0-1-102/EA/SVB main switch for installation always at the best possible price. We can give you a discount of 2% on Eaton 091078 T0-1-102/EA/SVB main switch for installation if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 6 pieces of Eaton 091078 T0-1-102/EA/SVB main switch for installation we can offer you a price of 50,83 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
