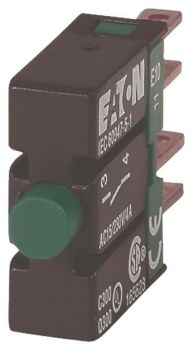

Eaton 090351 E10 contact element 1 NO
|
6,99 EUR |
|||||||||||
|
( 8,32 EUR incl. VAT ) ≈ £5.85 | ≈ $7.68 plus delivery charges: 55,00 € |
|||||||||||
| Delivery time from supplier's stock (ca.) 2 workdaysinfo_outline | |||||||||||
| In Stock: >1000 pieces | |||||||||||
| Datasheet: | file_download Download | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Lieske Part No.: | 255851 | ||||||||||
| Mfg Part No: | 090351 | ||||||||||
| UPC/EAN: | 4015080903512 | ||||||||||
| Weight: | 0.0715 kg | ||||||||||
| Type: | E10 | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Eaton 090351:
Applications
The E10 contact element is typically used in industrial control systems, where it functions as an auxiliary contact in command devices such as pushbuttons, switches, or signaling lamps. It enables the transmission of switching operations, for example, to activate relays, indicators, or other control elements. Its use in combination with other command devices allows for flexible and modular system design, particularly in installations with standardized plug fields.
Functions and Equipment in Detail
The device features a contact configuration with one normally open contact (1 S), meaning the contact closes when the associated command device is actuated, thereby completing an electrical circuit. The AC contact rating of 5–250 V refers to the maximum permissible voltage and current the contact can safely switch. This specification is crucial for selecting the appropriate contact element depending on the load to be switched. The protection class IP20 with ISH2,8 ensures protection against finger contact and solid foreign objects, but not against water or dust, requiring use in indoor environments with normal ambient conditions.
Technology Explained Simply
The flat plug connection allows for easy installation in standardized plug fields commonly used in many industrial control panels. The contact technology is based on a mechanical normally open contact, which establishes the electrical connection when the associated command device (e.g., a pushbutton) is actuated. The voltage range of 5–250 V indicates that the element is suitable for both low-voltage applications and higher voltages in industrial environments. The IP20 protection class is typical for indoor installations where no special environmental conditions such as humidity or dust exposure are present.
Compatibility and Accessories
The E10 contact element is designed as additional equipment and is used in combination with other command or signaling devices. Suitable accessories include, for example, the key switch Q18S1R (part number 038805), which is used in similar control systems. Connection to SmartWire-DT is not intended, meaning the element is not suitable for digital control systems of this type. Compatibility is limited to analog switching functions in conventional control systems.
Mounting and Installation
Mounting is done via the flat plug connection into standardized plug fields installed in industrial control panels. No additional wiring or tools are required, as the connection is simply plugged directly into the field. Installation is therefore quick and requires no additional mounting work. The device is used in conjunction with a command device that actuates the contact.
Operational Advantages
The E10 contact element provides a reliable and maintenance-free switching function in industrial installations. The use of a normally open contact allows for simple integration into existing circuits. Combination with other command devices enables modular system design, allowing adaptations and expansions without extensive modifications. Standardization of the flat plug connection ensures high compatibility with common plug fields in the industrial sector.
| Features | |
| Product colour | Black, Green |
| AC contact rating | 5 - 250 |
Questions & answers
What is the delivery time of Eaton 090351 E10 contact element 1 NO ?
The article Eaton 090351 E10 contact element 1 NO is currently in stock
According to our experience the article is ready for dispatch within 2 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Eaton 090351 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Eaton 090351 E10 contact element 1 NO always at the best possible price. We can give you a discount of 2% on Eaton 090351 E10 contact element 1 NO if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 25 pieces of Eaton 090351 E10 contact element 1 NO we can offer you a price of 5,99 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
